Sony HCD-EC70 - Printed Wiring Board - AMP Section

3535
HCD-EC70
HCD-EC70

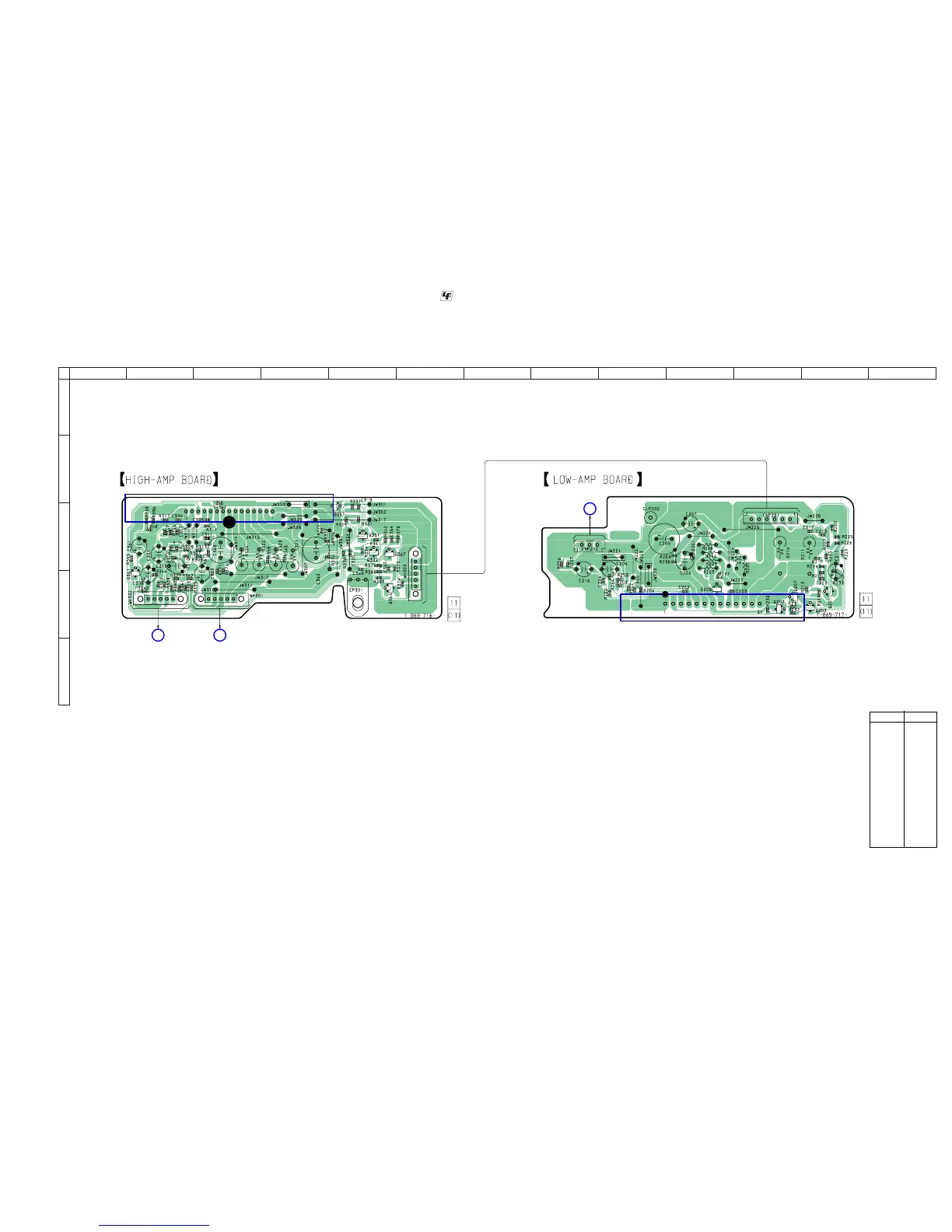

6-14. PRINTED WIRING BOARD — AMP SECTION —
• See page 21 for Circuit Boards Location. :Uses unleaded solder.
• Semiconductor
Location
Ref. No. Location
D201 C-10
D207 D-11
D208 D-10
D361 C-5
IC201 D-10
IC301 C-3
Q201 D-12
Q203 D-12
Q207 D-11
Q301 C-5
Q302 C-5
Q361 D-1
Q366 D-5
Q367 C-5
IC301
IC201
B
MAIN BOARD
CNP302
(Page 27)
C
MAIN BOARD
CNP301
(Page 27)
E
E
E
E
E
E
E
E
D
MAIN BOARD
WH201
(Page 27)
1
A
B
C
D
E
2 3 4 5 6 7 8 9 10 11 12 13
