Sony HCD-EC70 - 7 Exploded Views; Overall Section

46
HCD-EC70
5 2-649-130-11 PANEL, SIDE (R) (CND)
5 2-649-130-21 PANEL, SIDE (R) (US)
6 3-252-829-01 SCREW (B3), (+) BV TAPPING
M901 1-787-344-11 FAN, DC
#1 7-685-247-14 SCREW +KTP 3X10 TYPE2 NON-SLIT
SECTION 7
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
•Abbreviation
CND : Canadian model
Ref. No. Part No. Description Remark
1 3-254-143-11 SCREW (B3), (+) BV TAPPING
2 2-649-129-11 PANEL, SIDE (L) (CND)
2 2-649-129-21 PANEL, SIDE (L) (US)
3 3-363-099-32 SCREW (CASE 3 TP2)
4 2-670-840-01 CABINET, REAR (US)
4 2-670-840-11 CABINET, REAR (CND)

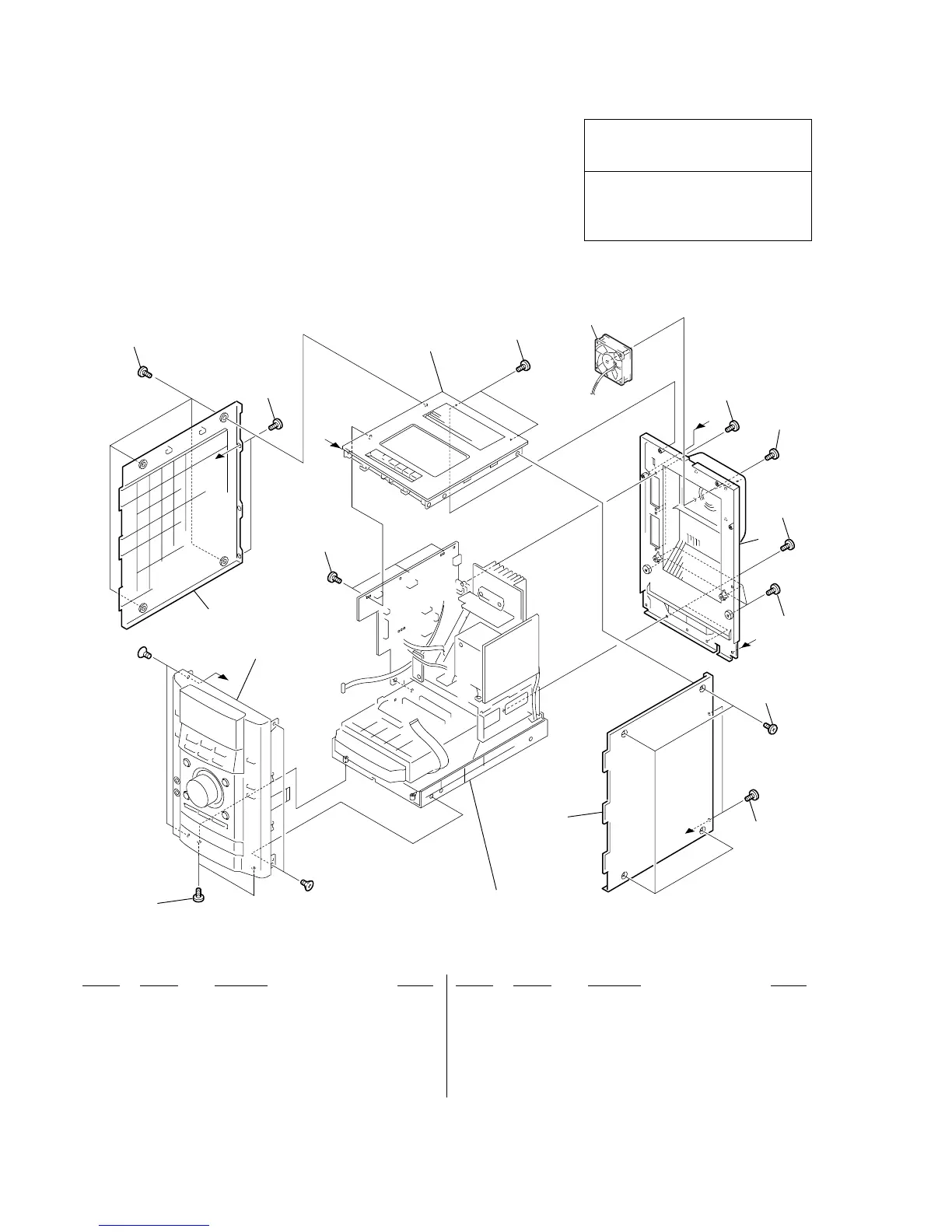

7-1. OVERALL SECTION
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant le
numéro spécifié.
Ref. No. Part No. Description Remark
A
A
B
B
C
C
5
4
1
1
1
3
1
1
6
1
1
3
front panel
section
chassis section
top section
#1
#1
2
1
M901
