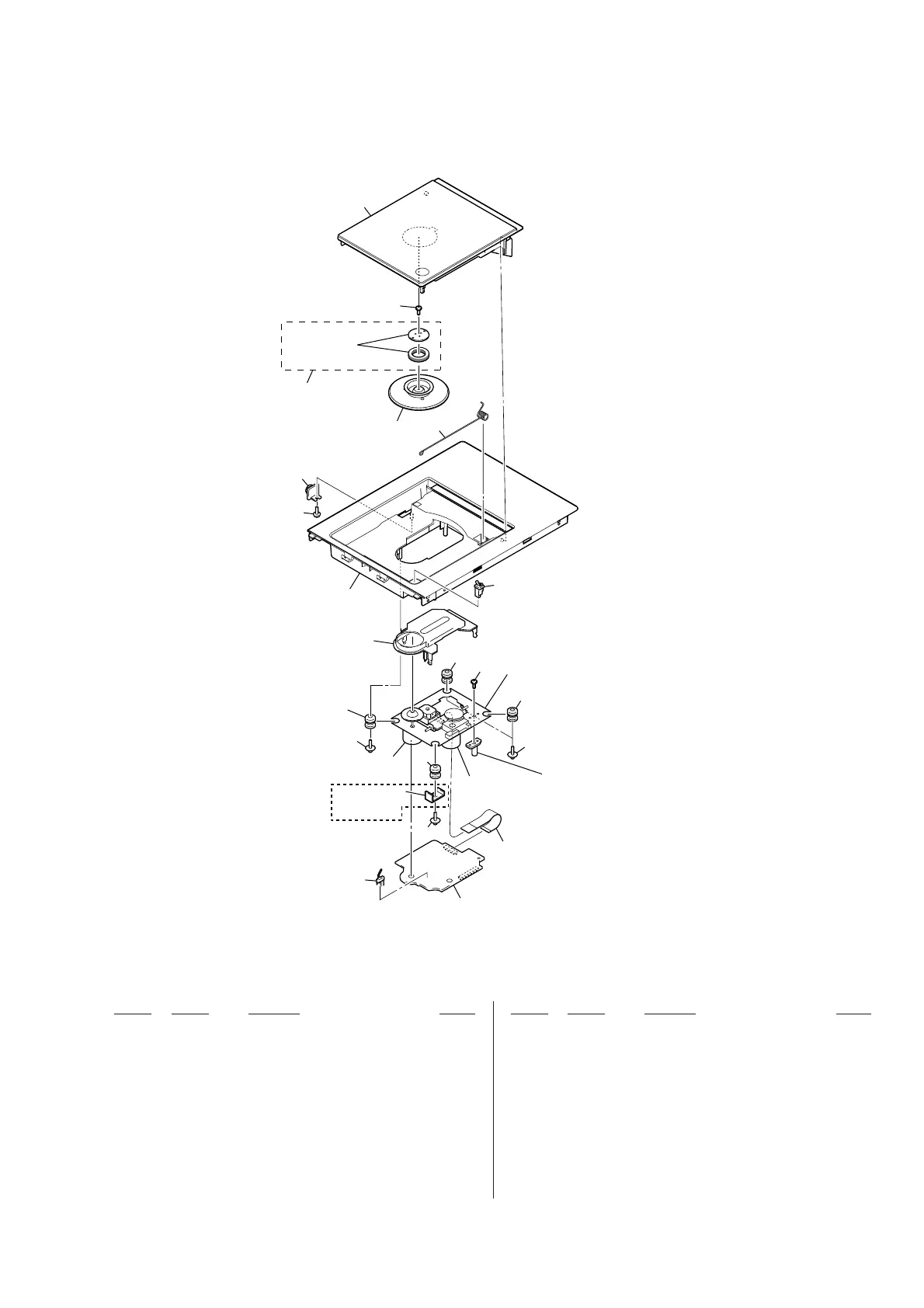

6-2. TOP PANEL SECTION
51 A-1748-697-A BD73 BOARD, COMPLETE
52 1-834-268-21 WIRE (FLAT TYPE) (16 CORE)
53 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
54 3-931-379-31 RUBBER, VIBRATION PROOF
55 3-931-379-21 RUBBER, VIBRATION PROOF
0 56 A-1780-028-A OPTICAL PICK-UP BLOCK (DA11MMVGP)
(Including sled motor, spindle motor)
57 4-166-010-01 COVER (D1)
58 4-136-037-02 PANEL, TOP (1) (US)
58 4-136-037-12 PANEL, TOP (1) (CND, AUS)
59 3-087-053-01 +BVTP2.6 (3CR)
60 3-047-468-11 DAMPER
61 4-145-341-01 SPRING (LID)
62 4-161-552-01 PULLEY, CHUCKING
63 1-452-899-31 MAGNET
64 3-253-143-01 SCREW (B2.6), (+) P TAPPING
65 4-120-740-02 LID (CD)
66 3-080-204-31 SCREW, TAPPING, P2
S001 1-771-853-11 SWITCH, DETECTION (LIMIT)
S351 1-692-960-11 SWITCH, PUSH (1 KEY)
(CD LID OPEN/CLOSE DETECT)
