Sony HCD-EC709iP - MAIN Board Section

38
HCD-EC709iP/EC909iP

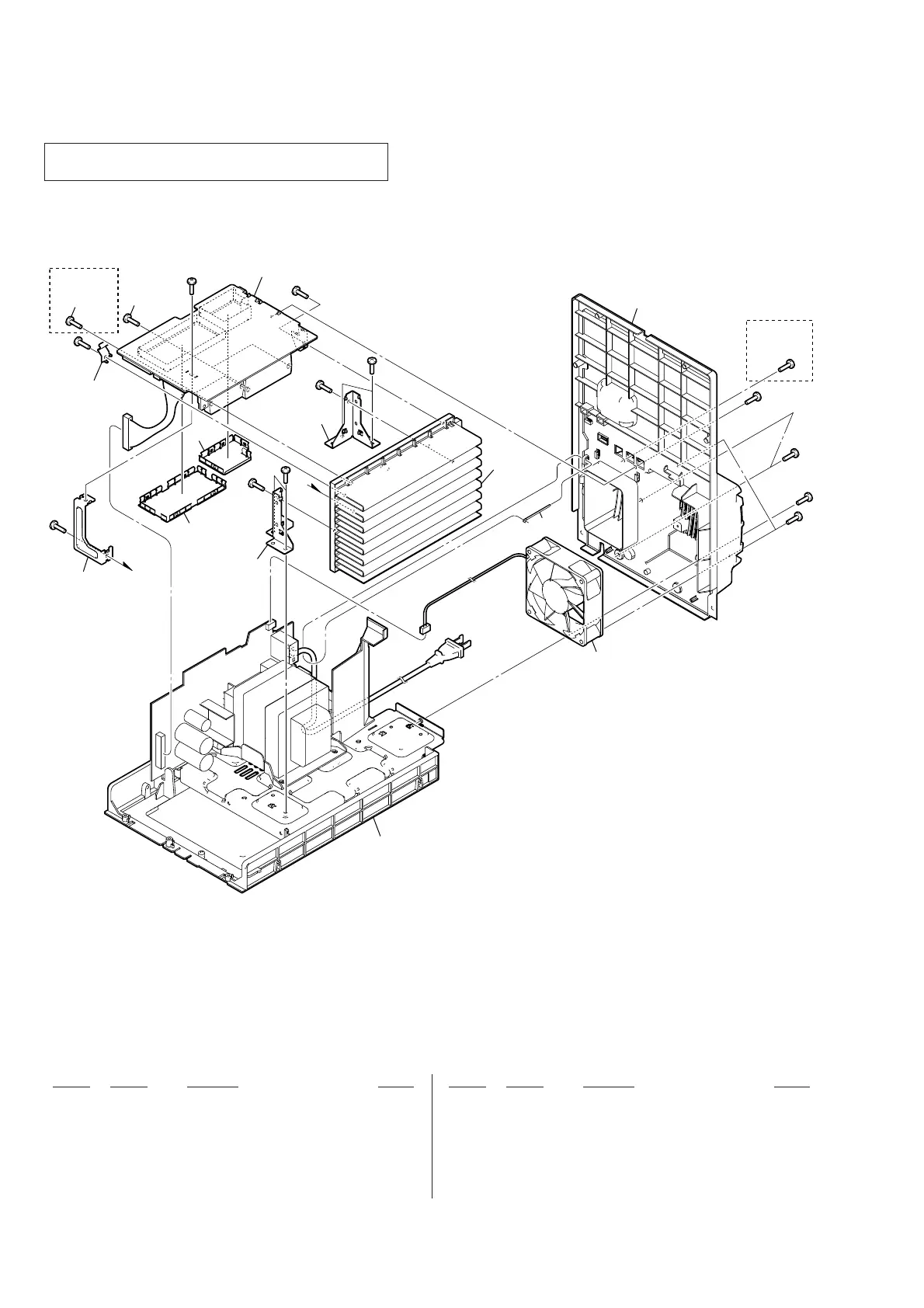

6-5. MAIN BOARD SECTION
201 4-178-590-01 COVER (TUNER TOP)
202 4-178-592-01 COVER (FUNCTION TOP)
203 3-905-609-31 SCREW (TRANSISTOR)
204 A-1749-008-A MAIN BOARD, COMPLETE (EC909iP)
204 A-1749-010-A MAIN BOARD, COMPLETE (EC709iP)
205 4-162-452-01 PANEL, BACK (EC909iP: US)
205 4-162-452-11 PANEL, BACK (EC909iP: CND, AUS)
205 4-162-452-21 PANEL, BACK (EC709iP: CND, AUS)
205 4-162-452-31 PANEL, BACK (EC709iP: US)
206 4-147-421-01 HOLDER, WIRE
0 M001 1-787-344-11 FAN, DC
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note: Cover (tuner top) and cover (function top) cannot re-used.
When these parts are removed, new parts must be replaced.
201
202
not supplied
chassis section
not supplied
#1
A
A
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
M001
(EC909iP)
(EC909iP)
not supplied
not supplied
not supplied
203
203
204
205
206
