Sony HCD-EC709iP - Front Panel Section

36
HCD-EC709iP/EC909iP

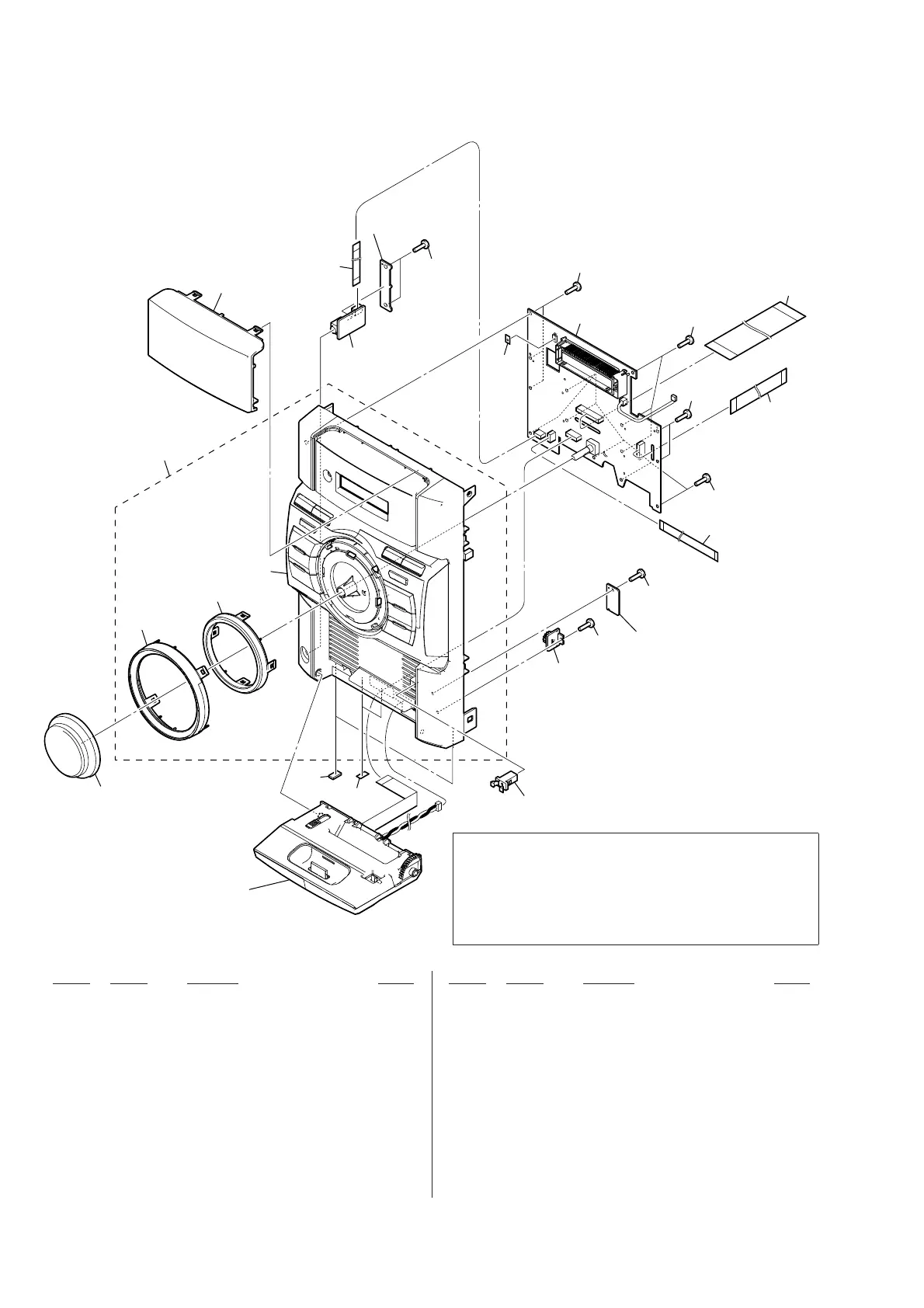

6-3. FRONT PANEL SECTION
101 3-876-249-01 LATCH
102 4-127-708-01 SHEET
103 4-225-252-01 CUSHION (FOOT)
104 4-169-806-01 KNOB (VOL)
105 4-120-658-31 RING (VOL)
106 4-120-657-11 RING, ORNAMENT
107 A-1749-938-A PANEL ASSY, FRONT (EC909iP: US)
107 A-1749-939-A PANEL ASSY, FRONT (EC909iP: CND, AUS)
107 A-1749-940-A PANEL ASSY, FRONT (EC709iP: US)
107 A-1749-941-A PANEL ASSY, FRONT (EC709iP: CND, AUS)
108 4-120-650-61 WINDOW (EC909iP: US, CND)
108 4-120-650-71 WINDOW (EC709iP: US, CND)
108 4-120-650-81 WINDOW (EC909iP: AUS)
108 4-120-650-91 WINDOW (EC709iP: AUS)
109 1-838-092-21 CABLE, FLEXIBLE FLAT (5 CORE)
110 3-087-053-01 +BVTP2.6 (3CR)
111 4-159-924-01 SHEET (RM)
113 1-838-097-21 CABLE, FLEXIBLE FLAT (25 CORE)
114 1-838-088-21 CABLE, FLEXIBLE FLAT (15 CORE)
115 A-1749-021-A PANEL BOARD, COMPLETE (EC909iP: US, CND)
115 A-1749-022-A PANEL BOARD, COMPLETE (EC909iP: AUS)
115 A-1749-023-A PANEL BOARD, COMPLETE (EC709iP: US, CND)
115 A-1749-024-A PANEL BOARD, COMPLETE (EC709iP: AUS)
116 3-047-468-62 DAMPER
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
not supplied
(JACK board)
not supplied
(JACK HOLD board)
iPod dock section
not supplied
(COVER board)
101
102
103
104
105
106
107
108
109
110
109
110
113
114
115
116
110
110
110
110
110
111
Note: The hole of the front panel that passes the fl exible fl at cable (13
core) and the wire from the IP board block is different.
Please pass it through a correct hole respectively.
There is a possibility that trouble occurs when iPod dock is
opened or closed when it makes a mistake in the passed hole.
Refer to disassembly “2-4. IP BOARD BLOCK, BASE (DOCK)
BLOCK” (page 8).
