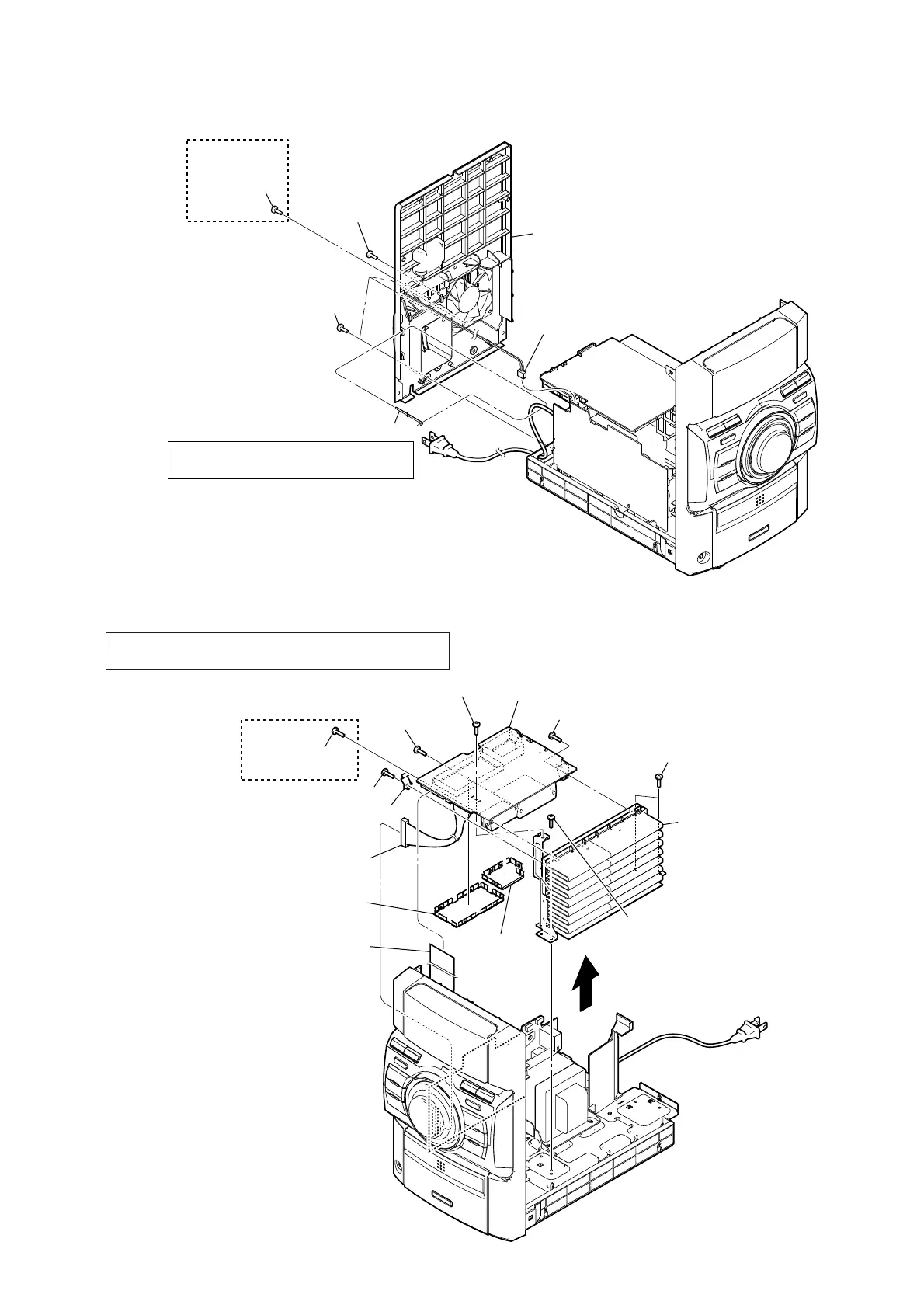

2-6. BACK PANEL BLOCK
2-7. MAIN BOARD
1 Cut the wire holder.
2 fan connector
(CN051)
4 back panel block
3 three screws
(BVTP3 u 10)
3 screw
(BVTP3 u 10)
3 screw
(BVTP3 u 10)
(EC909iP)
Note:
In reassembling, use new
wire holder
to
fasten the wire holder same as before.
1 flexible flat cable (25 core)
(CN603)
2 connector
(CN101)
4
3 two screws
(BVTP3 u 10)
3 two screws
(BVTP3 u 10)
6 screw (BVTP3 u 10)
6 screw (BVTP3 u 10)
qa MAIN board
6 screw (BVTP3 u 10)
7 bracket (REG)
8 heat sink bloc
k
9 cover
(tuner top)
0 cover (function top)
5 two screws
(transistor)
5 two screws
(transistor)
(EC909iP)
Note: Cover (tuner top) and cover (function top) cannot re-used.
When these parts are removed, new parts must be replaced.
