CAPACITOR ELECTRICAL DISCHARGE PROCESSING
When checking the board, the electrical discharge is necessary for the electric shock prevention.
Connect the resistors referring to the fi gure below.
• POWER board (C103, C104)
Both ends of respective capacitors.
–

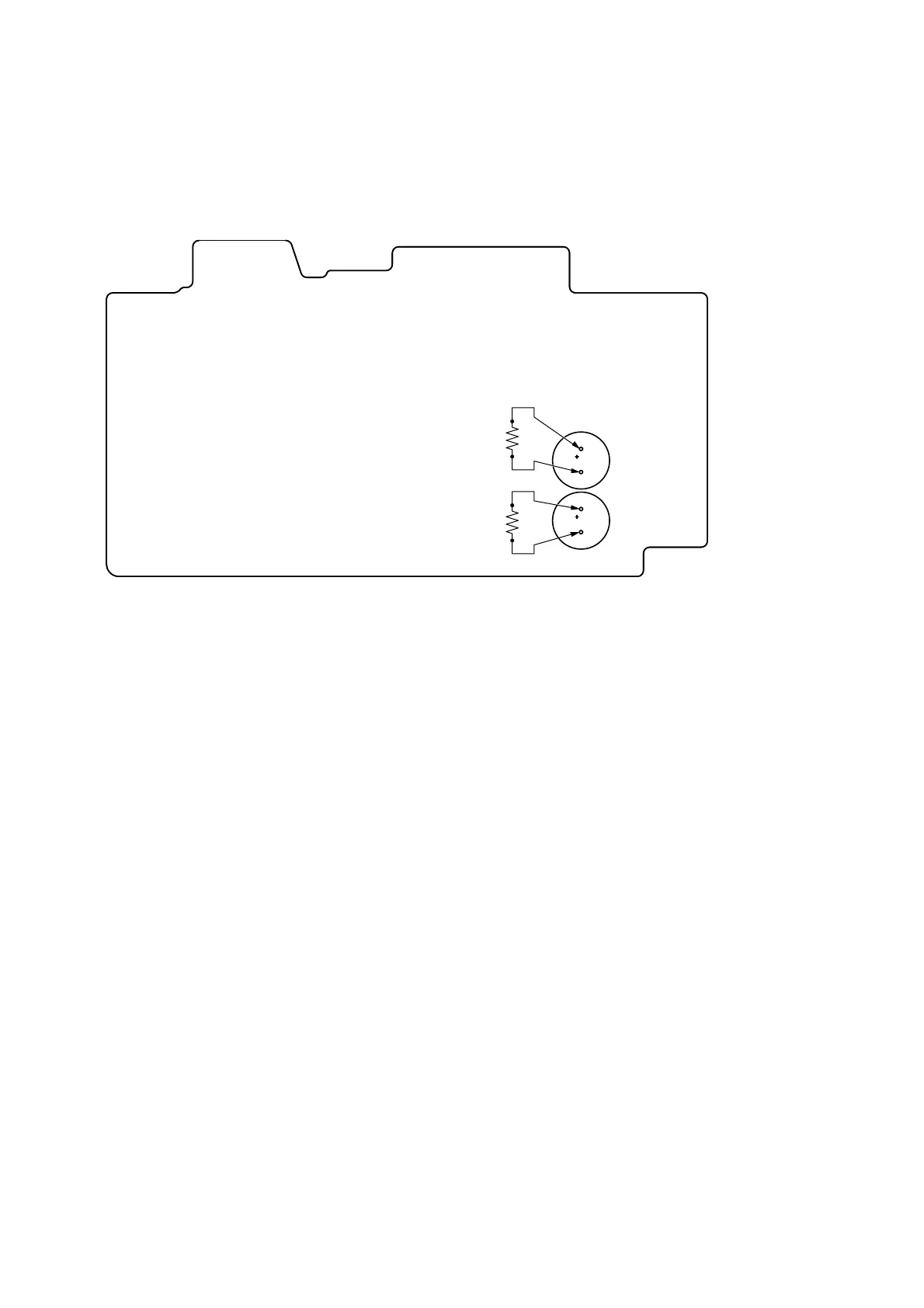

POWER Board (Conductor Side) –
C103
C104
800 :/2 W
800 :/2 W
