Sony HCD-ED1 - Section 1 General; Location of Parts and Controls

– 4 –
SECTION 1
GENERAL
1
20
19
18
17
16
15
14
13
12
2
3
4
5
6
7
8
9
10
11
1
9
8
7
6
5
2
3
4
AEP,UK,
East European
,CIS model
US,Canadian,
Singapore,Malaysia,
Hong Kong model

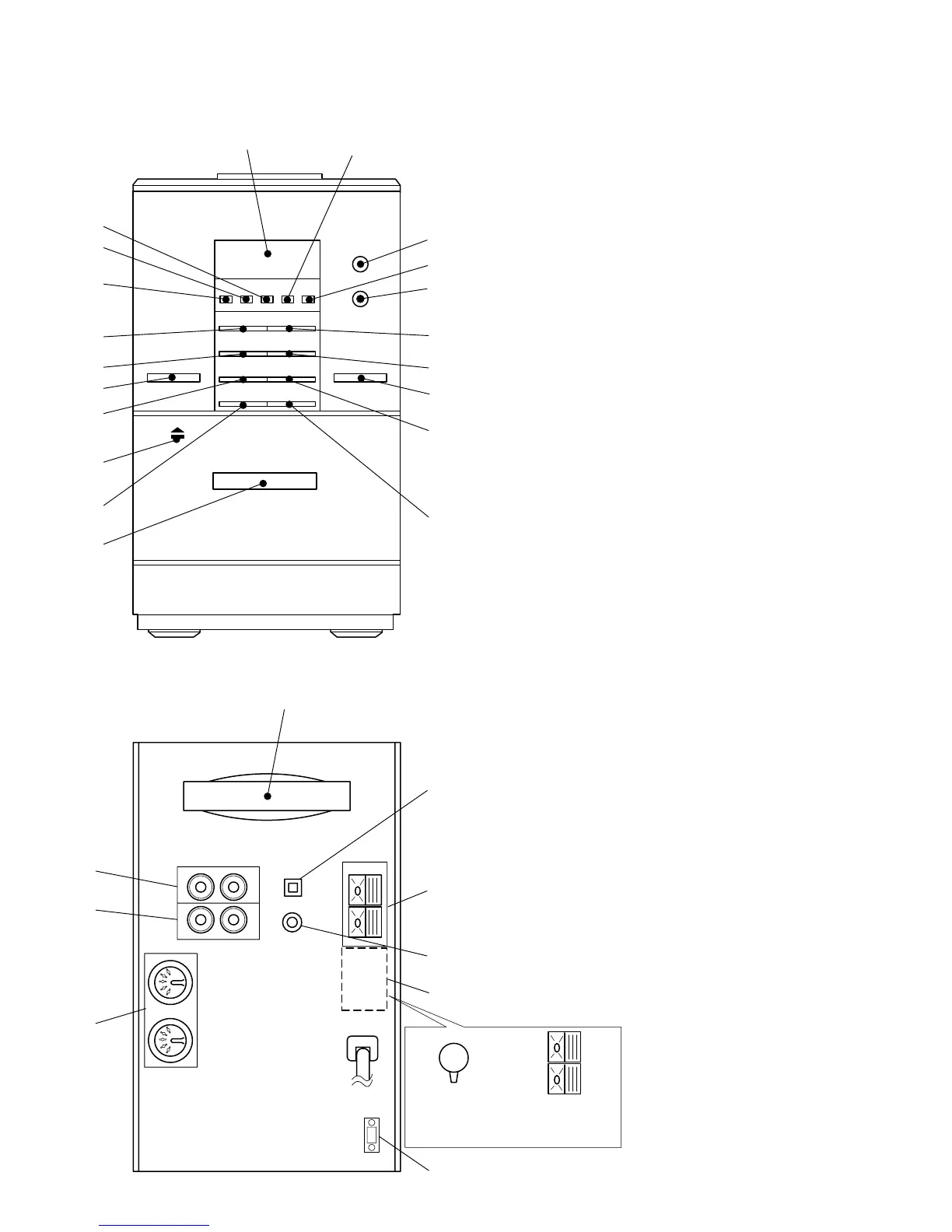

Location of Parts and Controls
FRONT PANEL
REAR PANEL
1 AM ANTENNA
2 MD IN jacks
3 MD OUT jacks
4 SPEAKER jacks
5 VOLTAGE SELECT OR s witc h
(Mala ysia, Singapore , Hong K ong models onl y)
6 FM ANTENNA terminal
7 PHONES jack
8 AM ANTENNA terminals
9 OPTICAL terminal
1 Displa y windo w
2 DBFB lamp
3 CD SYNC lamp
4 REC lamp
5 ª b utton
6 BAND FM ∏ button
7 PO WER b utton
8 TUNING ≠ º – b utton
9 § b utton (Push open)
10 VOLUME – b utton
11 DECK Lid
12 VOLUME + b utton
13 TUNING ‚± + b utton
14 FUNCTON b utton
15 BAND AM π button
16 · b utton
17 SOUND MODE b utton
18 WIDE lamp
19 Remote sensor
20 NEAR F. lamp
