Sony HCD-ED1 - Bottom Cover and Front Panel Block; Door Cover Assy and Mechanical Deck (Cassette)

– 7 –

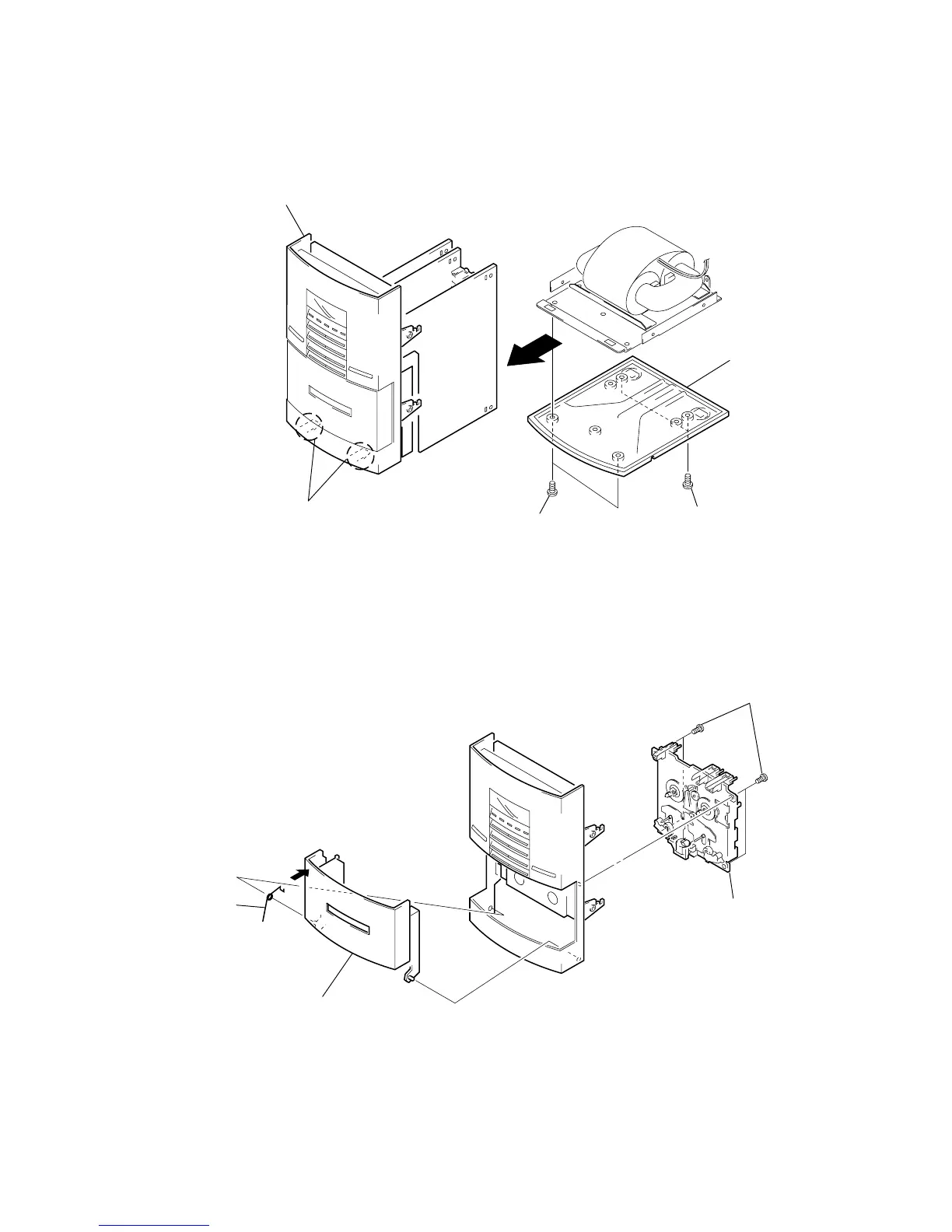

2-3. BOTTOM COVER AND FRONT PANEL BLOCK
2-4. DOOR COVER ASSY AND MECHANICAL DECK (CASSETTE)
1 Two screws
(BVTP 3x8)
2 Two screws
(BVTP 3x8)
3 Bottom cove
r
4 Two claws
5 Front panel block
4 Four screws
(BVTP 3x10)
5 Mechanical dec
k
(cassette)
1 Open the Door cover ASSY. (Push the A portion.)
2 Door cover assy
3 Door spring
A
