SECTION 2
DISASSEMBLY
Note: Follo w the disassemb ly pr ocedure in the n umerical or der given.

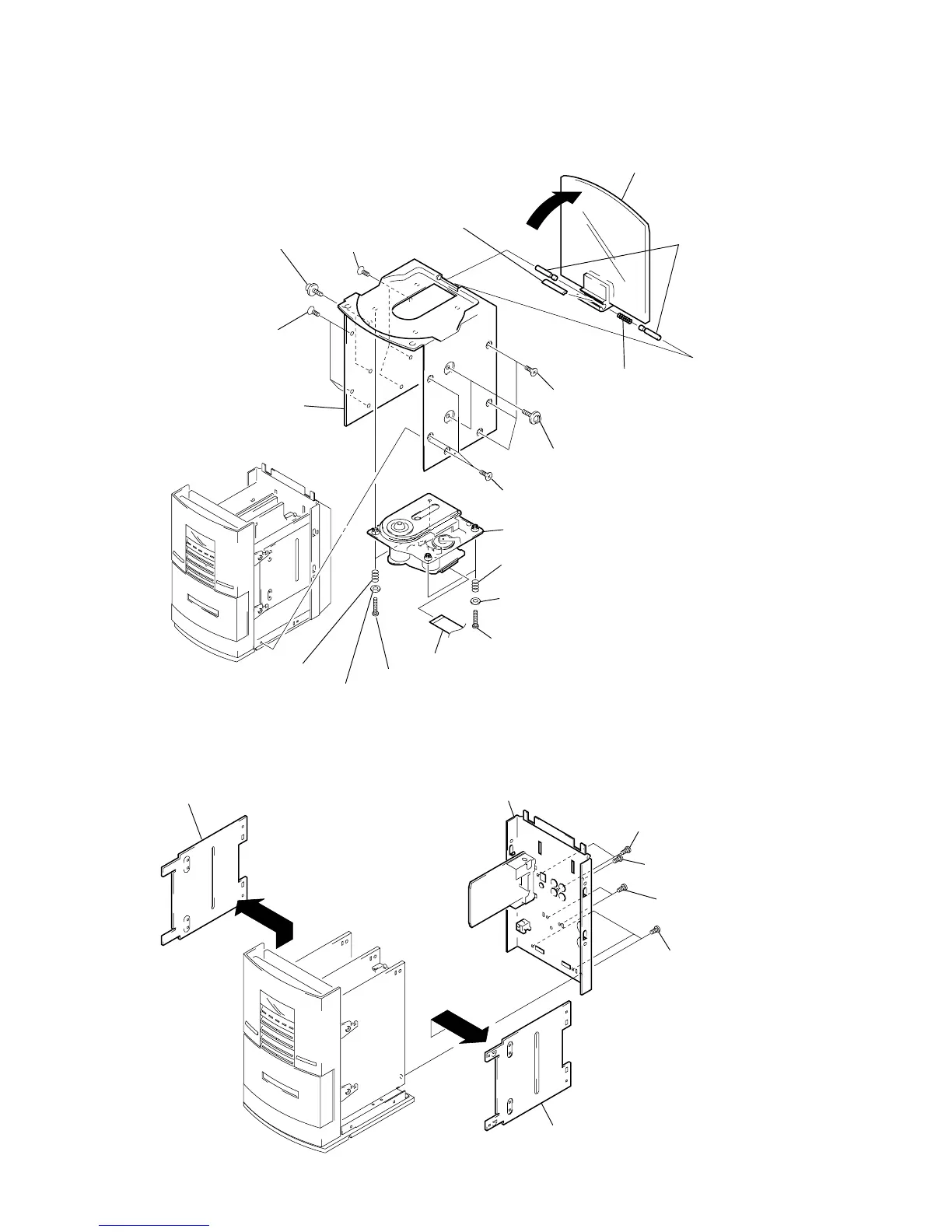

2-1. CD DOOR, CD BASE AND BASE UNIT
!∞ Two springs
(compression)
1 Open the CD door.
2 Bar rubber
3 Hinge pin
4 Hinge spring
9 Three screws (K3x8)
8 Two hook screws
!º Three screws (K3x8)
!ª Base unit
!• Two springs (compression)
!¶ Two washers
!§ Two screws (TPG P2x8)
!™ Wire (Flat type)
!£ Two screws (TPG P2x8)
!¢ Two washers
!¡ CD base
7 Three screws (K3x8)
5 Two hook screws
6 Three screws (K3x8)
2-2. REAR PANEL
6 Side bracket
7 Rear panel
1 Two screws
(BVTP 3x10)
5 Side bracket
2 Screw
(BVTP 3x8)
3 Two screws
(BVTP 3x8)
4 Three screws
(BVTP 3x8)
