Tape Speed Adjustment
Setting:
Function: TAPE
Procedure:
1. Playback WS-48A (tape center) in the FWD state.
2. Adjsut the volume in CAPSTAN/REEL motor (M201) so that
the frequency counter reading becomes 3,000 Hz.
Specified Value: 2,910 to 3,090 Hz
3. Confirm that the frequency at the beginning and that at the end
of tape winding are between 2,955 to 3,045 Hz.

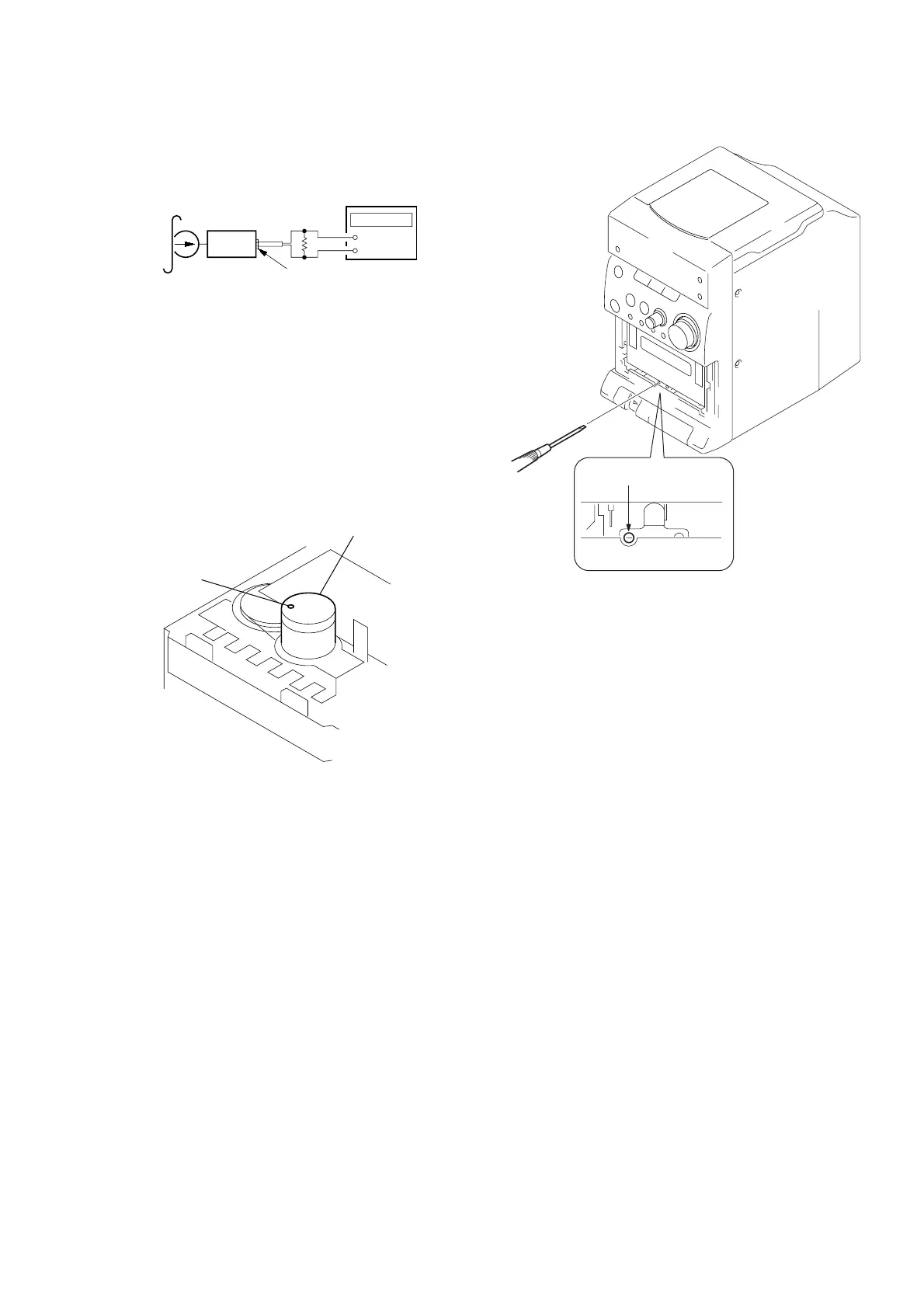

Adjustment Location:
frequency counte
r
test tape
WS-48A
(3 kHz, 0 dB)
set
HEADPHONE board
PHONES jack (JK401)
–
+
32
Ω
CAPSTAN/REE
L
motor (M201)
Tape Speed
Adjustment
Adjustment Location: Record/Playback Head.
Note: Refer to “3-8. Cassette Lid” (see page 11)
adjustment screw
