Sony HCD-EP303 - 7 Exploded Views; Cabinet Section

NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this parts
list.
32
HCD-EP303
SECTION 7
EXPLODED VIEWS
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
•Abbreviation
CND : Canadian model.
E51 : Chilean and Peruvian model.
MY : Malaysia model.
SP : Singapore model.
AR : Argentine model.
MX : Mexican model.
AUS: Australian model.

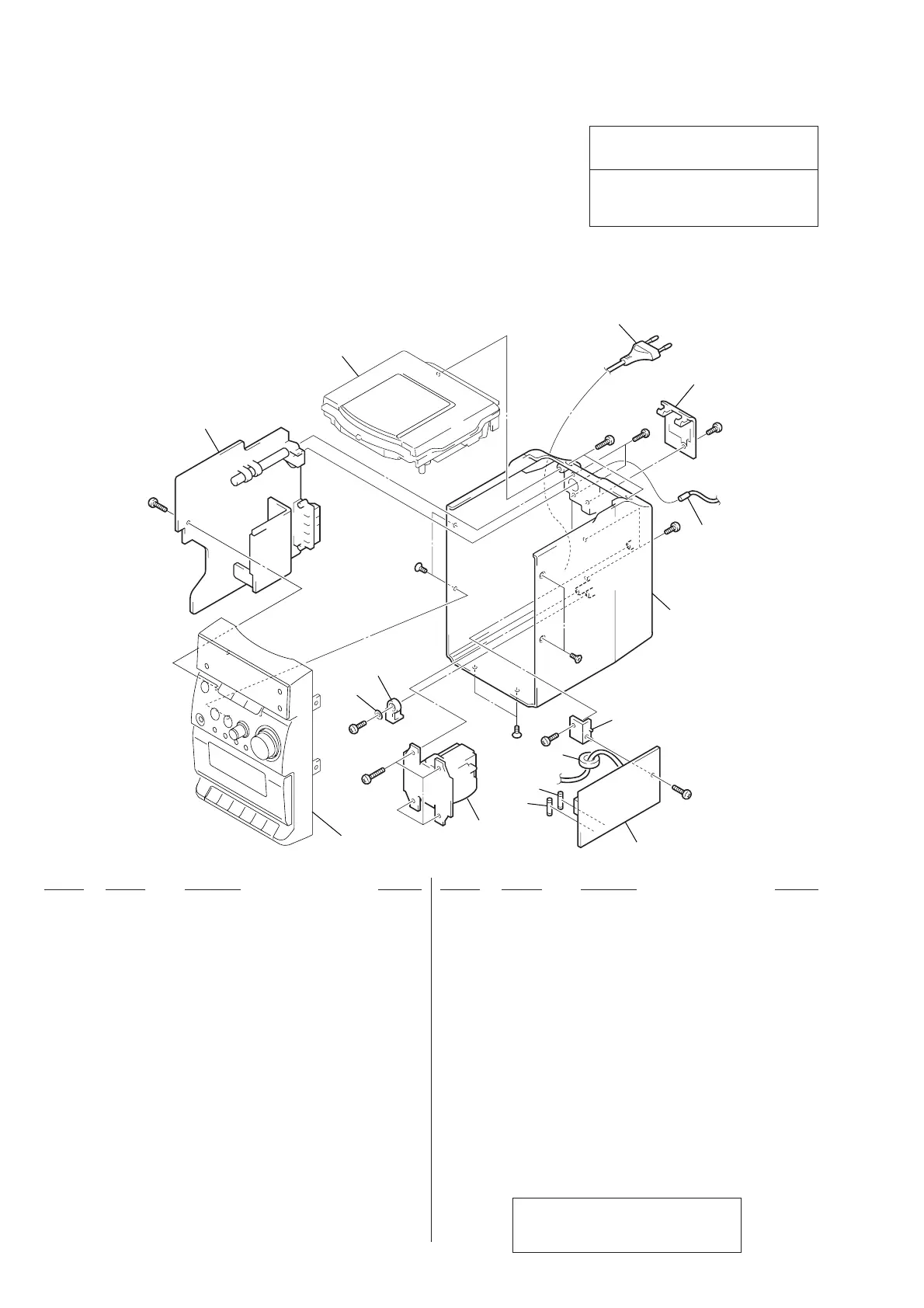

7-1. Cabinet Section
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
12
5
1
2
11
9
8
7
6
#1
#1
#4
#2
#
2
#2
#2
#3
#5
Front panel section
TR401
F401
F402
CD cabinet section
#3
#3
#1
3
1 3-451-162-00 WASHER
2 4-235-952-01 AC CORD HOLDER
3 1-500-712-11 CORE, FERRITE (AEP,UK)
5 A-4676-971-A MAIN BOARD, COMPLETE (AEP,UK)
5 A-4729-806-A MAIN BOARD, COMPLETE (EXCEPT AEP,UK)
0 6 1-555-750-00 CORD, POWER (AEP,E51,MY,SP)
0 6 1-696-535-11 CORD, POWER (UK)
0 6 1-696-966-31 CORD, POWER (AUS)
0 6 1-783-525-31 CORD, POWER (MX)
0 6 1-783-820-11 CORD, POWER (US,CND)
0 6 1-783-941-51 CORD, POWER (AR)
7 4-235-974-01 CAB, ANTENNA COVER
8 1-823-170-11 CORD (WITH CONNECTOR) (FM ANT)
9 4-235-972-01 REAR CABINET (AEP,UK)
9 4-241-498-01 REAR CABINET (EXCEPT AEP,UK)
11 4-240-251-01 POWER PWB MOUNT ING BKT.
12 A-4729-805-A POWER BOARD, COMPLETE (US,CND,MX)
12 A-4676-975-A POWER BOARD, COMPLETE
(EXCEPT US,CND,MX)
0 F401 1-533-470-11 FUSE, GLASS TUBE (DIA. 5) T3.15AL/250V
(EXCEPT US, CND, MX)
0 F401 1-533-690-11 FUSE, GLASS SYLINDRICAL (DIA. 5)
3.15A/125V (US, CND, MX)
0 F402 1-533-296-11 FUSE, GLASS SYLINDRICAL (DIA. 5)
2A/125V (US, CND, MX)
0 F402 1-533-468-11 FUSE, GLASS TUBE (DIA. 5) T2AL/250V
(EXCEPT US, CND, MX)
0 TR401 1-437-816-11 TRANSFORMER, POWER
(EXCEPT US, CND, MX)
0 TR401 1-437-818-11 TRANSFORMER, POWER (US, CND, MX)
#1 7-685-534-14 SCREW +BTP 2.6X8 TYPE2 N-S
#2 7-685-647-14 SCREW +BVTP 3X10 TYPE2 SLIT
#3 7-682-246-04 SCREW +K 3X5
#4 7-685-535-14 SCREW +BTP 2.6X10 TYPE2 N-S
#5 7-685-648-14 SCREW +BVTP 3X12 TYPE2 SLIT
#12 7-685-646-14 SCREW +BVTP 3X8 TYPE2 SLIT
