7
HCD-EP303

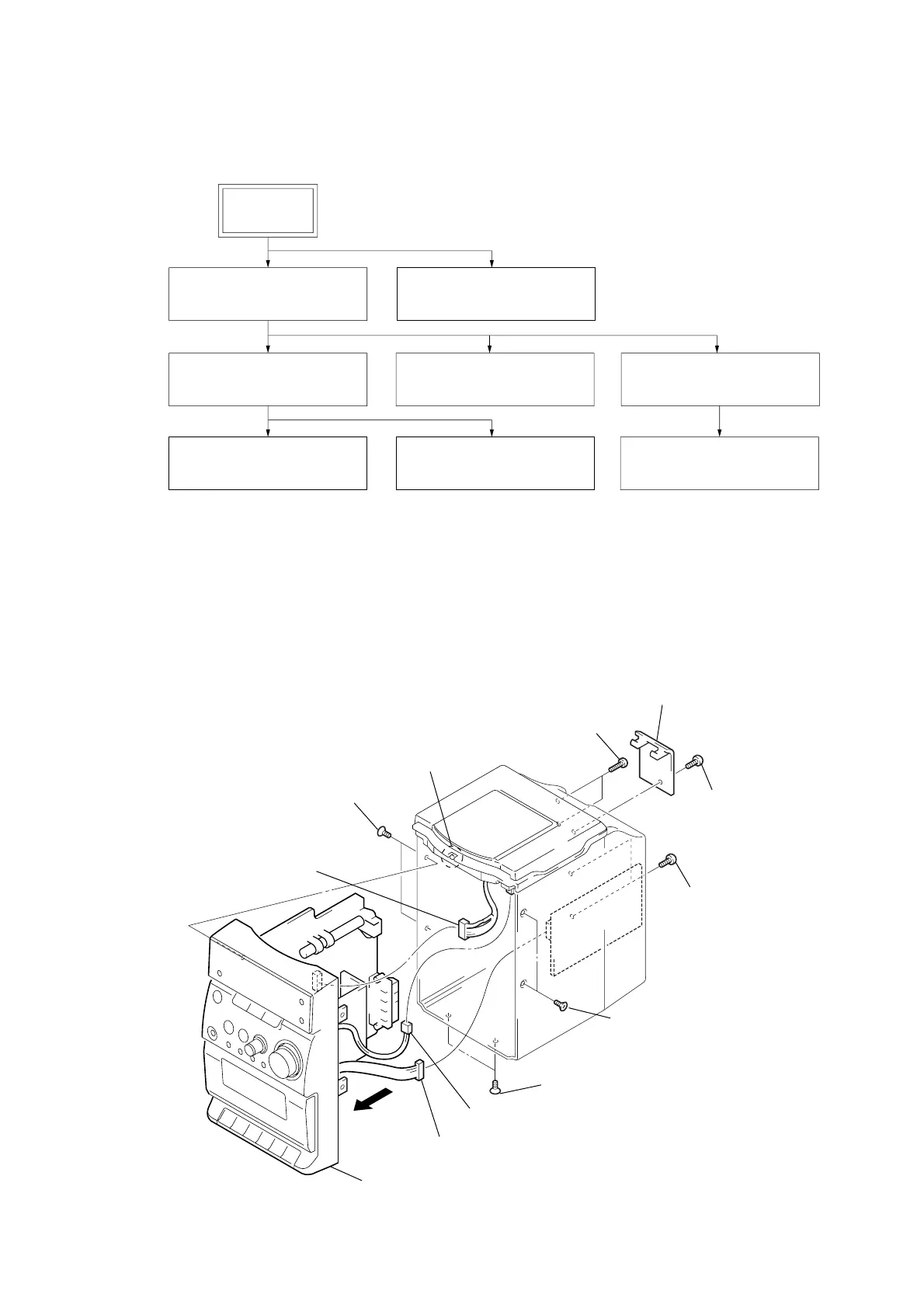

SECTION 3
DISASSEMBLY
• The equipment can be removed using the following procedure.
3-6. CD CABINET SECTION
(Page 10)
3-5. DISPLAY BOARD,
HEADPHONE BOARD
(Page 9)
3-1. FRONT PANEL SECTION
(Page 7)
3-3. TAPE MECHANISM DECK
(TCM125-2)
(Page 8)
3-7. CD MECHANISM DECK
(CS-21SC-1280)
(Page 10)
3-8. CASSETE LID
(Page 11)
3-2. MAIN BOARD
(Page 8)
3-4. POWER BOARD,
POWER TRANSFORMER
(Page 9)
SET
3-1. Front Panel Section
8 connector
(CN203)
5 two screws
(+K3
× 5)
3 two screws
(+BTP2.6
× 10)
1 screw
(+BVTP3
× 10)
4 two screws
(+BVTP3
× 10)
5 two screws
(+K3
× 5)
5 two screws
(+K3
× 5)
9 connector
(CN402)
0 connector
(SW600)
qa front panel section
7
2 antenna cover cabine
t
6 claw
Note : Follow the disassembly procedure in the numerical order given.
