Adjustment Location and Connecting Points

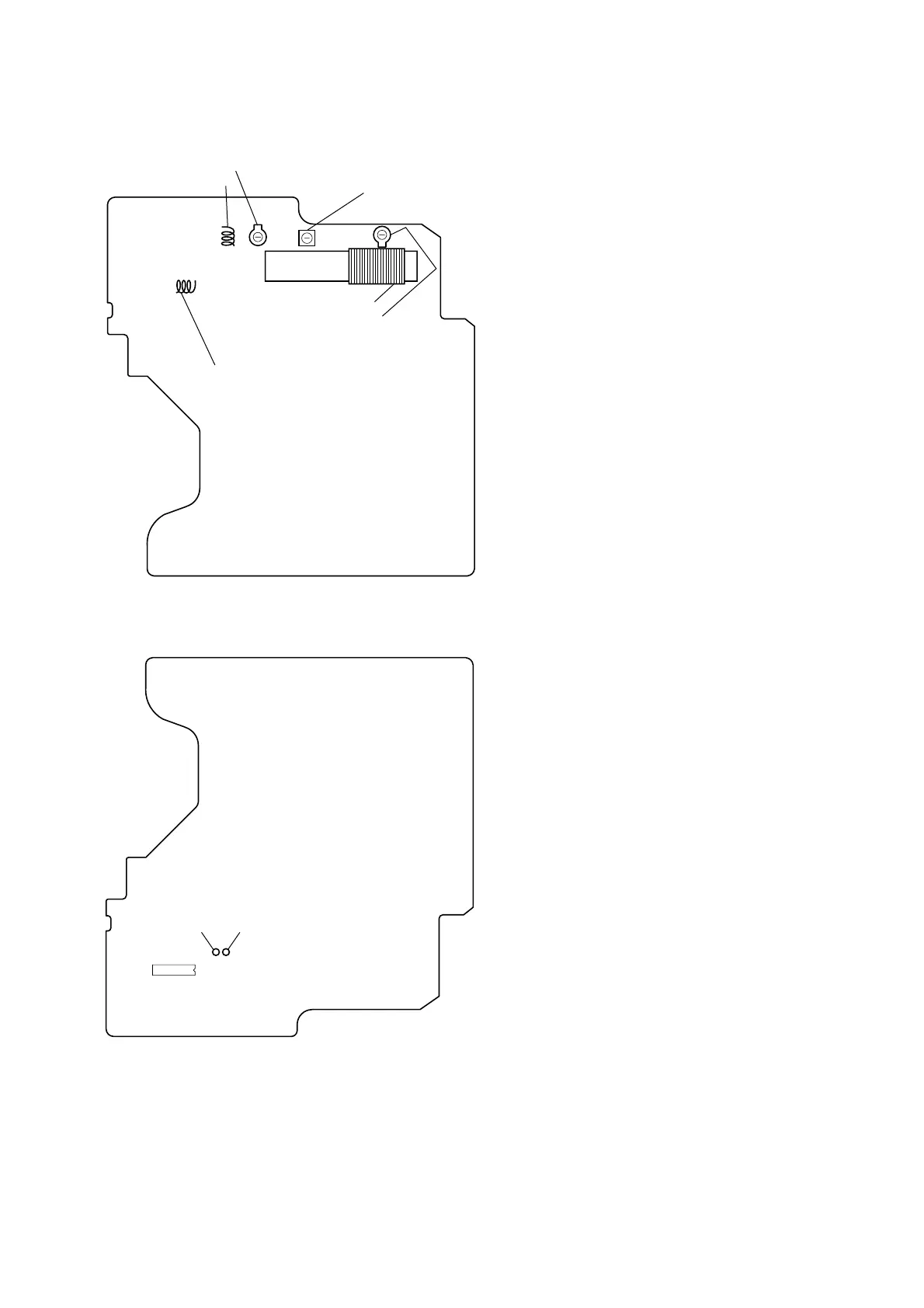

– MAIN BOARD (Component Side) –
L104 FM Frequency
Coverage Adjustment
T102
AM Frequency Coverage Adjustmen
t
AM Tracking
{
L110
Adjustment TC102
FM Tracking TC101
Adjustment
{
L103
– MAIN BOARD (Conductor Side) –
TP10
(FM VT)
TP11
(AM VT)
IC101
