Sony HCD-EX99 - Base Unit; 2-10. Optical Pick-Up

HCD-EX66/EX88/EX99
14

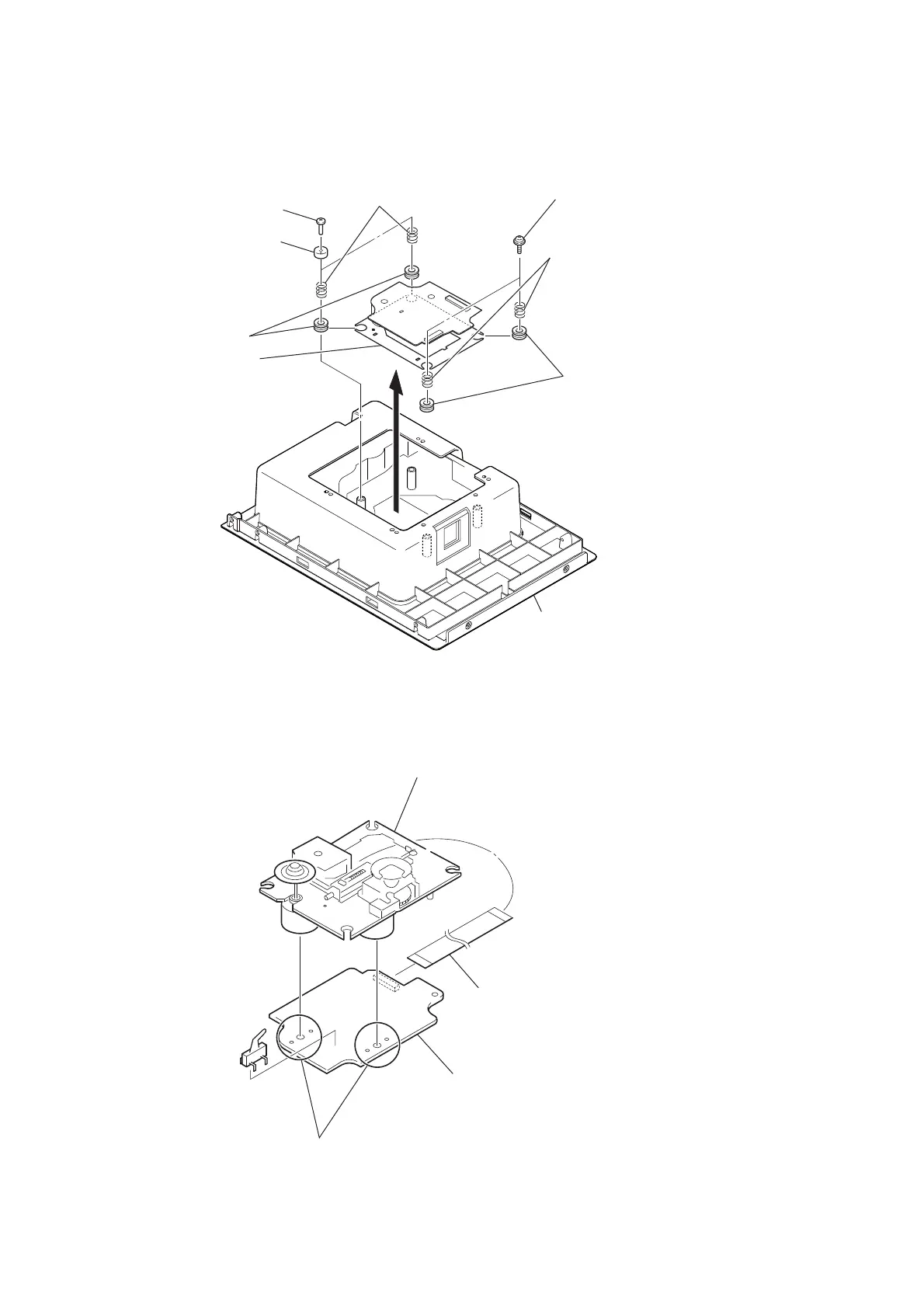

2-9. BASE UNIT
2-10. OPTICAL PICK-UP
1 two floating screws
(+PTPWH M2.6)
2 two screws
(+BVTP 2.6 (3CR))
4
two coil springs (insulator)
3
two stoppers (BU)
4
two coil springs (insulator)
6
two insulators
6
two insulators
7
base unit
top panel block
(bottom view)
5
1
Remove the four solders.
2 wire (flat type) (16 core)
(CN201)
4 BD76 board
3 optical pick-up
