Sony HCD-EX99 - Exploded Views; Overall Exploded View

51
HCD-EX66/EX88/EX99
SECTION 6
EXPLODED VIEWS
1 4-263-388-01 CASE (L), SIDE
2 3-363-099-32 SCREW (CASE 3 TP2)
0 3 1-834-966-41 CORD, POWER-SUPPLY (E2, E4, E51)
0 3 1-837-309-21 CORD, POWER-SUPPLY (EA)
0 3 1-837-312-11 CORD, POWER-SUPPLY (AR)
0 3 1-837-344-11 CORD, POWER-SUPPLY (MX)
0 4 1-569-008-33 ADAPTOR, CONVERSION (E2, E4, E51)
5 4-263-387-01 PANEL, BACK (EX99: E2, E51)
5 4-263-387-11 PANEL, BACK (EX99: AR, MX)
5 4-263-387-21 PANEL, BACK (EX66/EX88)
6 3-703-244-00 BUSHING (2104), CORD
7 4-263-389-01 CASE (R), SIDE
FAN701 1-855-006-11 FAN, DC
#1 7-685-647-71 SCREW +BVTP 3X10 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts Color Cabinet’s Color

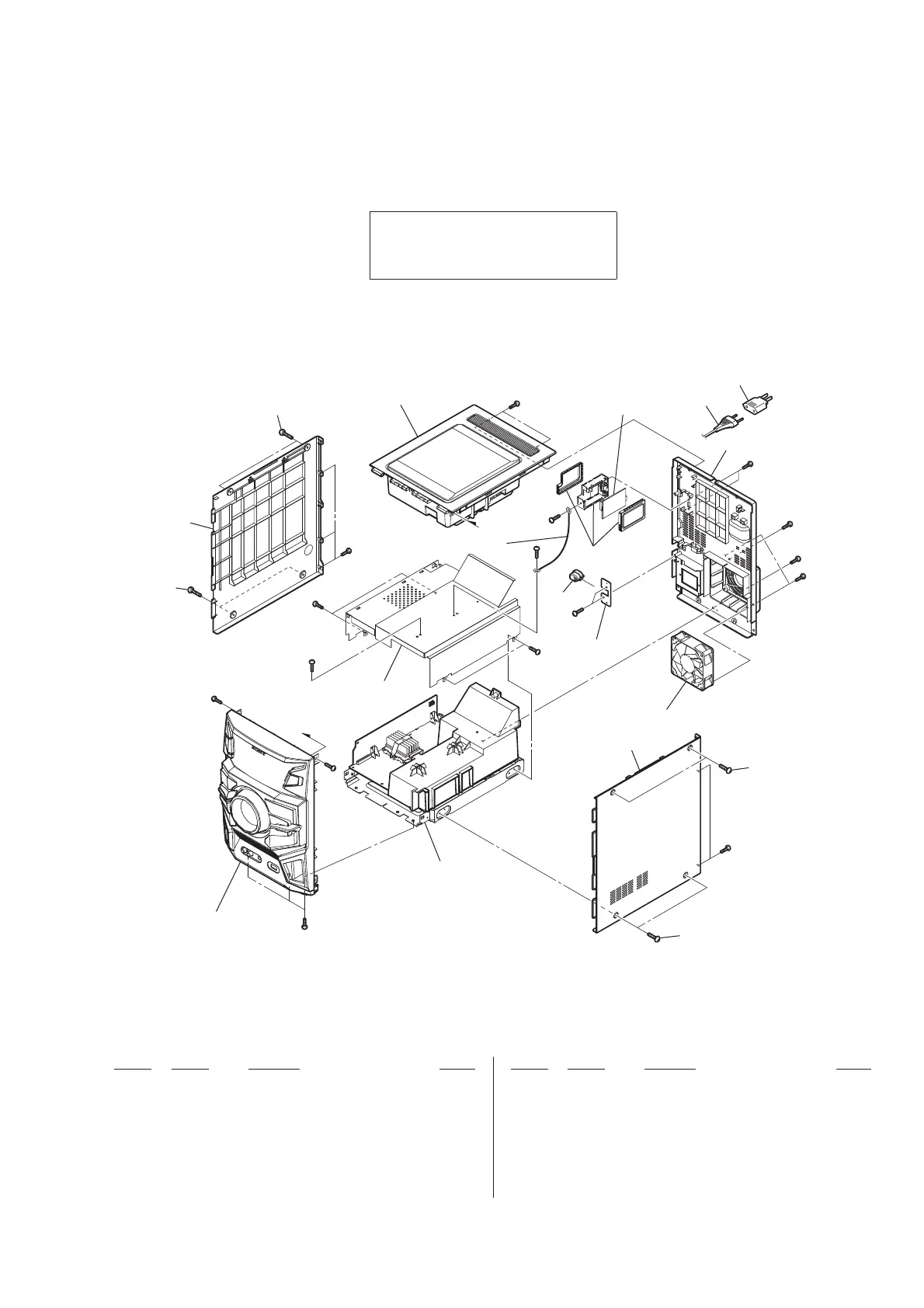

6-1. OVERALL SECTION
• Abbreviation
AR : Argentina model
E2 : 120V AC area in E model
E4 : 220 – 240V AC area in E model
E51 : Chilean and Peruvian models
EA : Saudi Arabia model
MX : Mexican model
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
A
A
1
3
4
5
6
7
2
2
2
2
front panel section
top panel section
chassis section
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
not supplied
not supplied
not supplied
(TUNER board)
not supplied
not supplied
FAN701
