Sony HCD-EX99 - Front Panel Exploded View

52
HCD-EX66/EX88/EX99

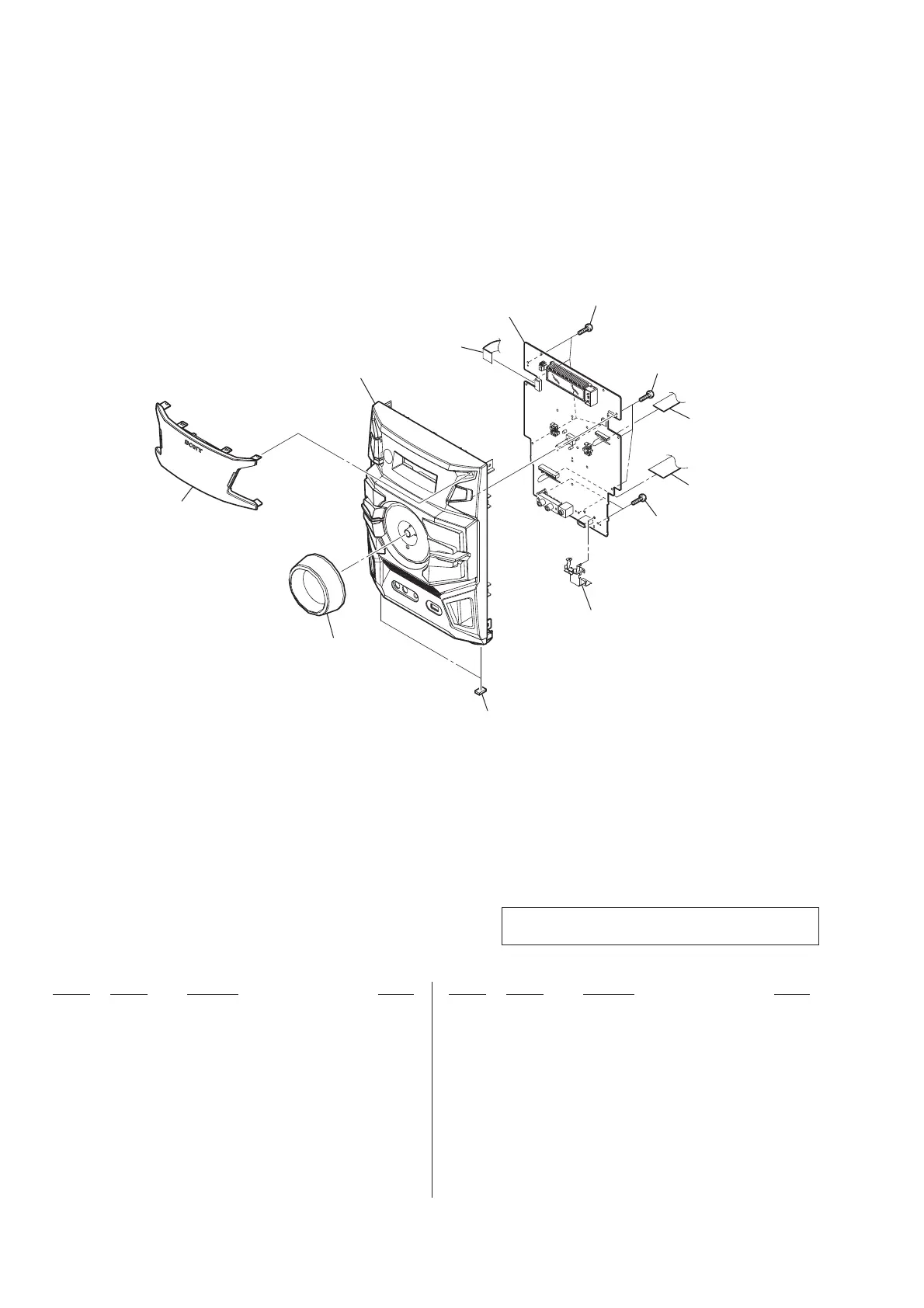

6-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 4-264-672-01 CUSHION (FOOT)
52 4-263-494-01 KNOB (VOL) (EX88/EX99)
52 4-263-494-11 KNOB (VOL) (EX66)
53 4-263-426-01 WINDOW (EX99)
53 4-263-426-21 WINDOW (EX88)
53 4-263-426-41 WINDOW (EX66)
54 X-2560-700-2 PANEL SUB ASSY, FRONT (EX88/EX99)
54 X-2560-702-3 PANEL SUB ASSY, FRONT (EX66)
55 1-839-177-21 CABLE, FLEXIBLE FLAT (7 CORE)
56 A-1800-425-A PANEL BOARD, COMPLETE (EX99: E2, E51, AR)
56 A-1800-426-A PANEL BOARD, COMPLETE (EX99: MX)
56 A-1800-428-A PANEL BOARD, COMPLETE (EX88: E2, E51, AR)
56 A-1800-429-A PANEL BOARD, COMPLETE (EX88: MX)
56 A-1800-432-A PANEL BOARD, COMPLETE (EX66: EA)
56 A-1800-433-A PANEL BOARD, COMPLETE (EX66: E2, E51, AR)
56 A-1800-434-A PANEL BOARD, COMPLETE (EX66: E4)
57 3-087-053-01 +BVTP2.6 (3CR)
58 1-839-169-21 CABLE, FLEXIBLE FLAT (21 CORE)
59 1-832-875-21 CABLE, FLEXIBLE FLAT (21 CORE) (EX66)
59 1-839-178-21 CABLE, FLEXIBLE FLAT (21 CORE) (EX88)
59 1-839-179-21 CABLE, FLEXIBLE FLAT (23 CORE) (EX99)
Note: If the wire (fl at type) was replaced, fold it some as the
wire (fl at type) before replacement.
51
52
53
54
55
57
57
56
57
58
59
not supplied
