Sony HCD-GN1100D - Exploded Views; Case and Back Panel Assembly

75
HCD-GN1100D
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks
SECTION 8
EXPLODED VIEWS

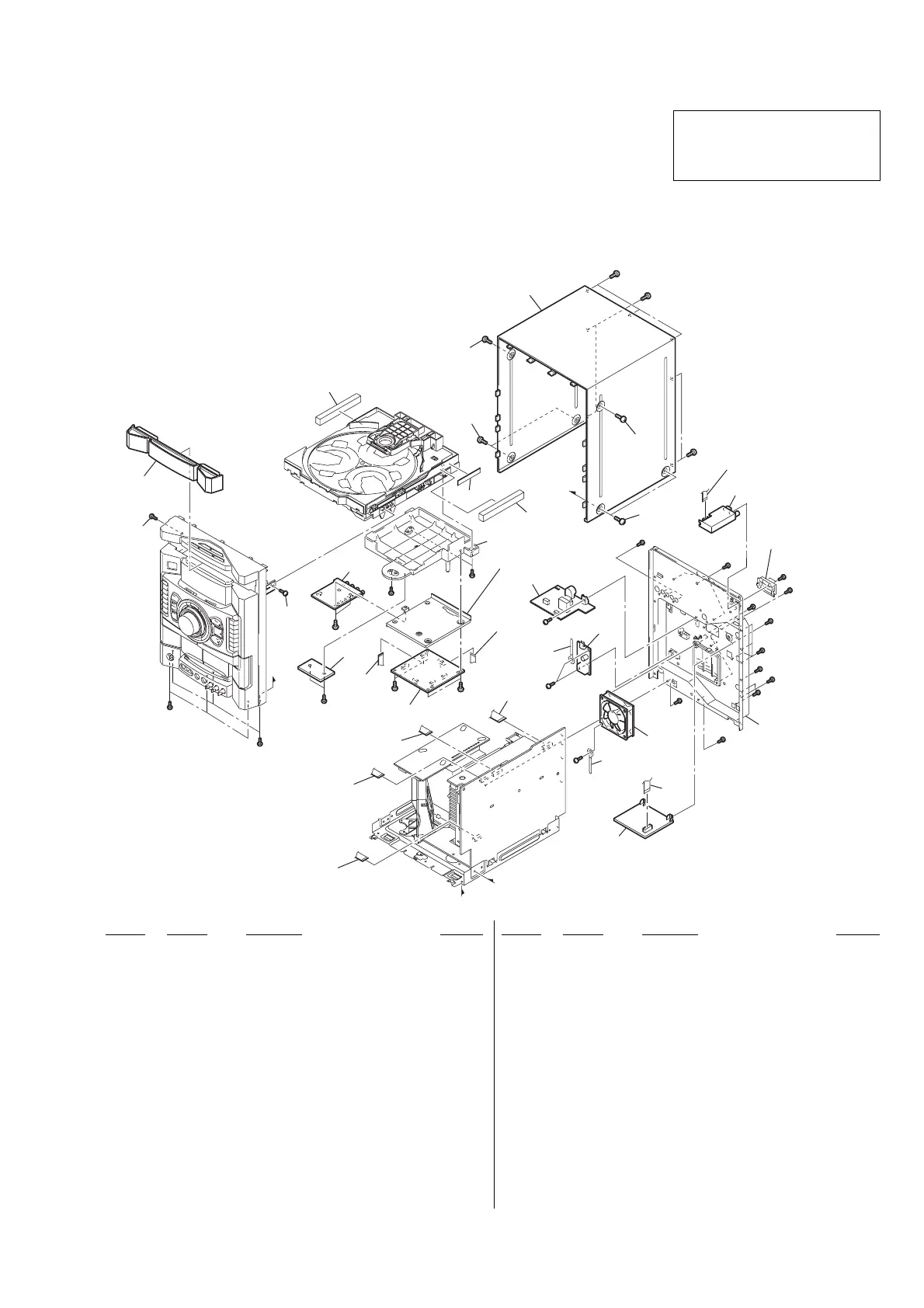

8-1. CASE, BACK PANEL SECTION
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories are
given in the last of this parts list.
• Abbreviation
E3 : 240V AC Area in E model
E12 : 220V-240V AC Area in E model
E15 : Iran model
EA : Saudi Arabia model
MY : Malaysia model
PH : Philippines model
SP : Singapore model
TH : Thai model
The components identified by mark 0 or
dotted line with mark 0 are critical for
safety.
Replace only with part number specified.
1 2-895-478-01 PANEL, LOADING
2 2-342-137-71 CASE
3 3-363-099-02 SCREW (CASE 3 TP2)
4 3-363-099-32 SCREW (CASE 3 TP2)
5 1-693-702-11 TUNER (FM/AM) (TM10SE)
6 A-1231-082-A EFFECTOR BOARD, COMPLETE
0 7 1-468-737-51 POWER SWITCHING
8 1-828-326-11 WIRE (FLAT TYPE) (13 CORE) (65mm)
9 A-1193-305-A KARAOKE BOARD, COMPLETE
10 1-823-718-11 WIRE (FLAT TYPE) (17 CORE) (100mm)
11 3-378-109-12 CUSHION, SARANET
12 A-1231-086-A VIDEO BOARD, COMPLETE
13 A-1258-013-A DMB16 BOARD, COMPLETE (E3, E15)
13 A-1258-397-A DMB16 BOARD, COMPLETE (SP, MY, TH, PH)
13 A-1258-398-A DMB16 BOARD, COMPLETE (E12)
13 A-1317-113-A DMB16 BOARD, COMPLETE (EA)
14 3-703-136-12 SCREW, TAPPING
15 A-1231-519-A PRIMARY BOARD, COMPLETE (EXCEPT TH)
15 A-1258-295-A PRIMARY BOARD, COMPLETE (TH)
16 1-828-333-11 WIRE (FLAT TYPE) (13 CORE) (320mm)
17 1-828-973-11 WIRE (FLAT TYPE) (13 CORE) (160mm)
18 1-828-632-11 WIRE (FLAT TYPE) (21 CORE) (250mm)
19 1-827-720-11 WIRE (FLAT TYPE) (11 CORE) (130mm)
20 1-828-957-11 WIRE (FLAT TYPE) (9 CORE) (200mm)
M891 1-787-400-11 D.C. FAN
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
#4 7-685-651-79 SCREW +BVTP 3X20 TYPE2 N-S
1
#3
#2
#1
#1
#1
#1
#1
#1
#1
#1
5
7
6
10
#2
#2
#4
8
#2
#2
#1
#1
#1
not supplie
d
not supplied
M891
not supplied
not supplied
not supplied
not supplied
not supplied
#1
#1
#1
#1
#1
12
13
9
11
b
b
a
a
2
4
3
4
3
#1
#1
#1
14
14
not supplied
not supplied
16
17
18
19
20
15
Ver. 1.2
