Sony HCD-GN1100D - Disassembly - Tuner Pack and DVD Mechanism

9
HCD-GN1100D

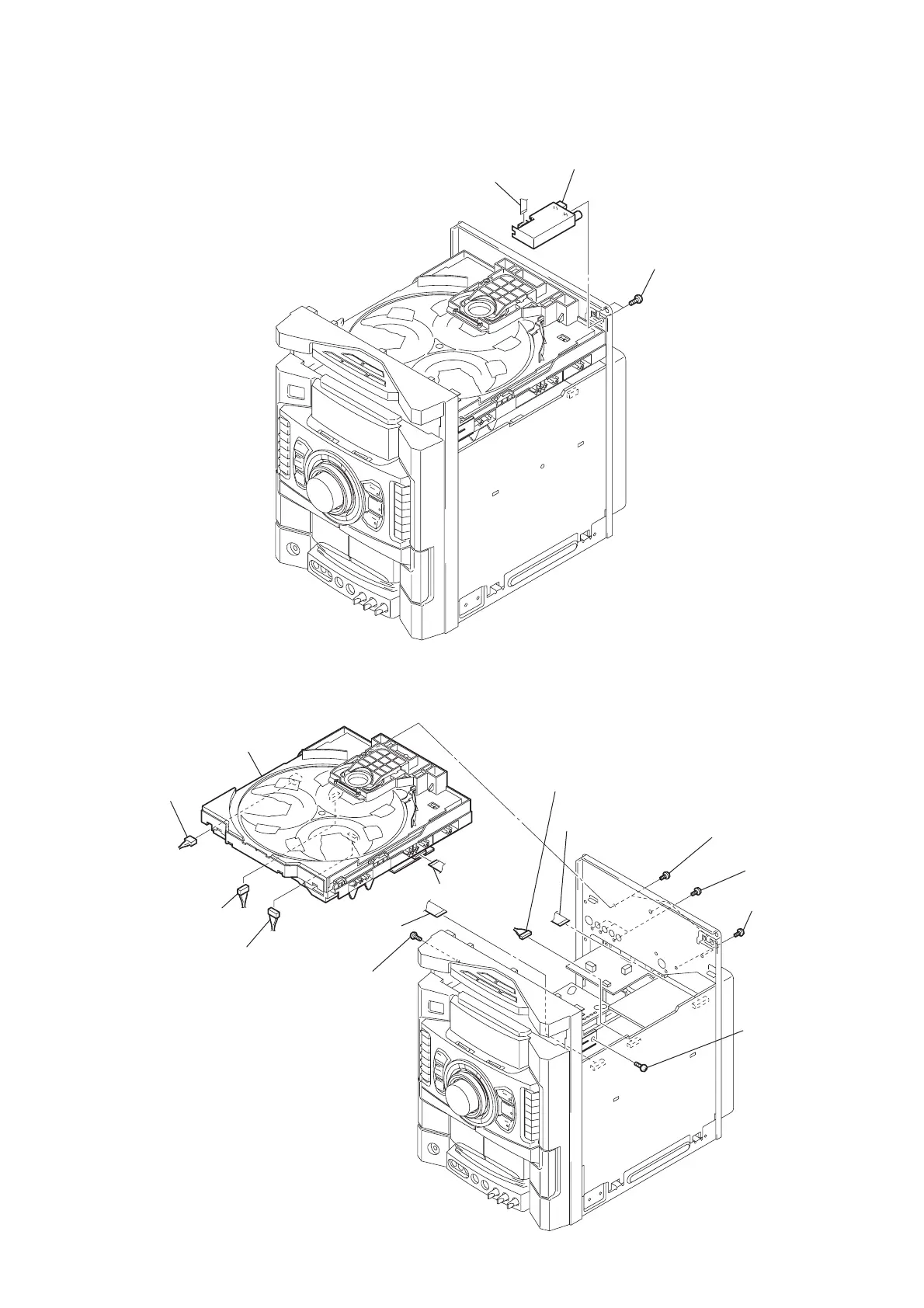

3-4. TUNER PACK
3-5. DVD MECHANISM DECK
1 two screws
(+BVTP 3 × 8
)
2 wire (flat type)
(CN1)
3 tuner pack
6 DVD mechanism deck
7 wire (flat type)
(CN701)
8 wire (flat type)
(CN521)
3 three screws
(+BVTP 3
× 10)
1 three screws
(+BVTP 3
× 10)
2 screw
(+BVTP 3
× 10)
0 wire (flat type)
(CN520)
qa connector
(CN401)
9 connector
(CN505)
qs connector
(CN800)
qd connector
(CN802)
4 screw
(+P 3
× 12)
5 screw
(+P 3
× 12)
