Sony HCD-GN1100D - Exploded Views (Front Panel Part 1)

76
HCD-GN1100D

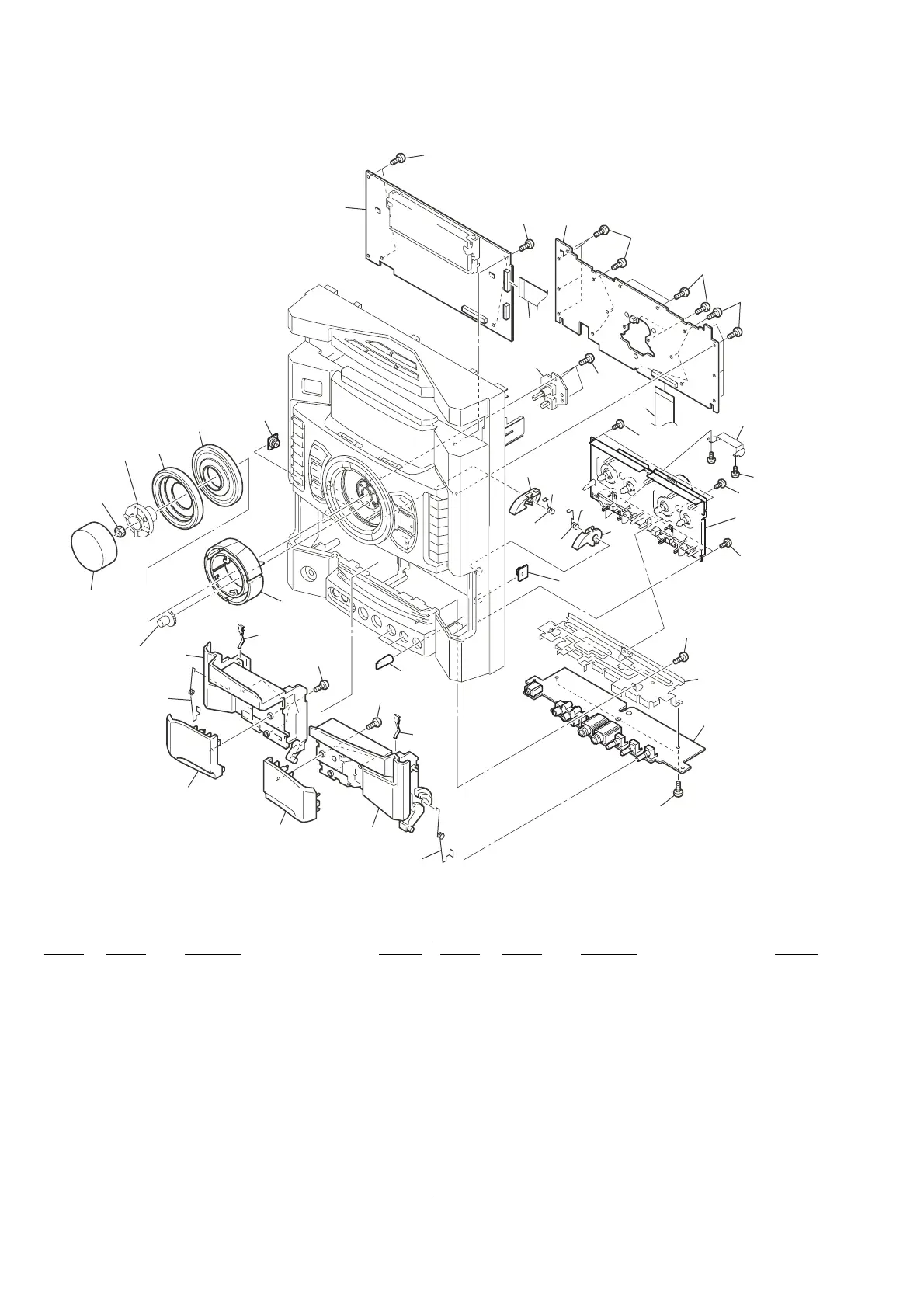

8-2. FRONT PANEL SECTION-1
51 2-897-474-01 SPRING (R)
52 2-895-503-01 HOLDER (TC-R)
53 2-669-613-01 DETENT SPRING
54 3-087-053-01 +BVTP2.6 (3CR)
55 2-895-505-01 ESCUTCHEON (TC-B)
56 2-895-504-01 ESCUTCHEON (TC-A)
57 2-897-473-01 SPRING (L)
58 2-895-502-01 HOLDER (TC-L)
59 2-895-507-01 KNOB (MIC)
60 2-895-494-01 REFLECTOR (VOLUME)
61 2-895-490-01 KNOB (VOLUME)
62 2-895-491-01 KNOB (JOG-P)
63 2-895-492-01 INDICATOR (JOG)
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks
64 4-224-104-11 DAMPER
65 A-1226-299-A PANEL BOARD, COMPLETE
66 1-828-992-11 WIRE (FLAT TYPE) (17 CORE) (130mm)
67 A-1226-302-A FUNCTION BOARD, COMPLETE
68 1-417-658-11 MECHA DECK (CWN42RR603)
69 4-231-824-01 CAM (A), HEART
70 4-231-836-01 SPRING (HEART CAM-A)
71 4-231-841-01 SPRING (HEART CAM-B)
72 4-231-825-01 CAM (B), HEART
73 A-1226-306-A MIC BOARD, COMPLETE
74 1-829-032-11 WIRE (FLAT TYPE) (25 CORE)
#5 7-685-853-04 SCREW +BVTT 2X6 (S)
not supplied
supplied with
S935
not supplied
not supplie
d
not supplied
not supplied
#5
74
51
52
53
54
55
53
59
54
56
57
58
60
61
62
63
64
65
54
54
66
67
54
54
54
54
54
54
54
54
68
69
70
71
72
64
54
73
54
