Sony HCD-GN1100D - Exploded Views - DVD Mechanism Section 1

79
HCD-GN1100D

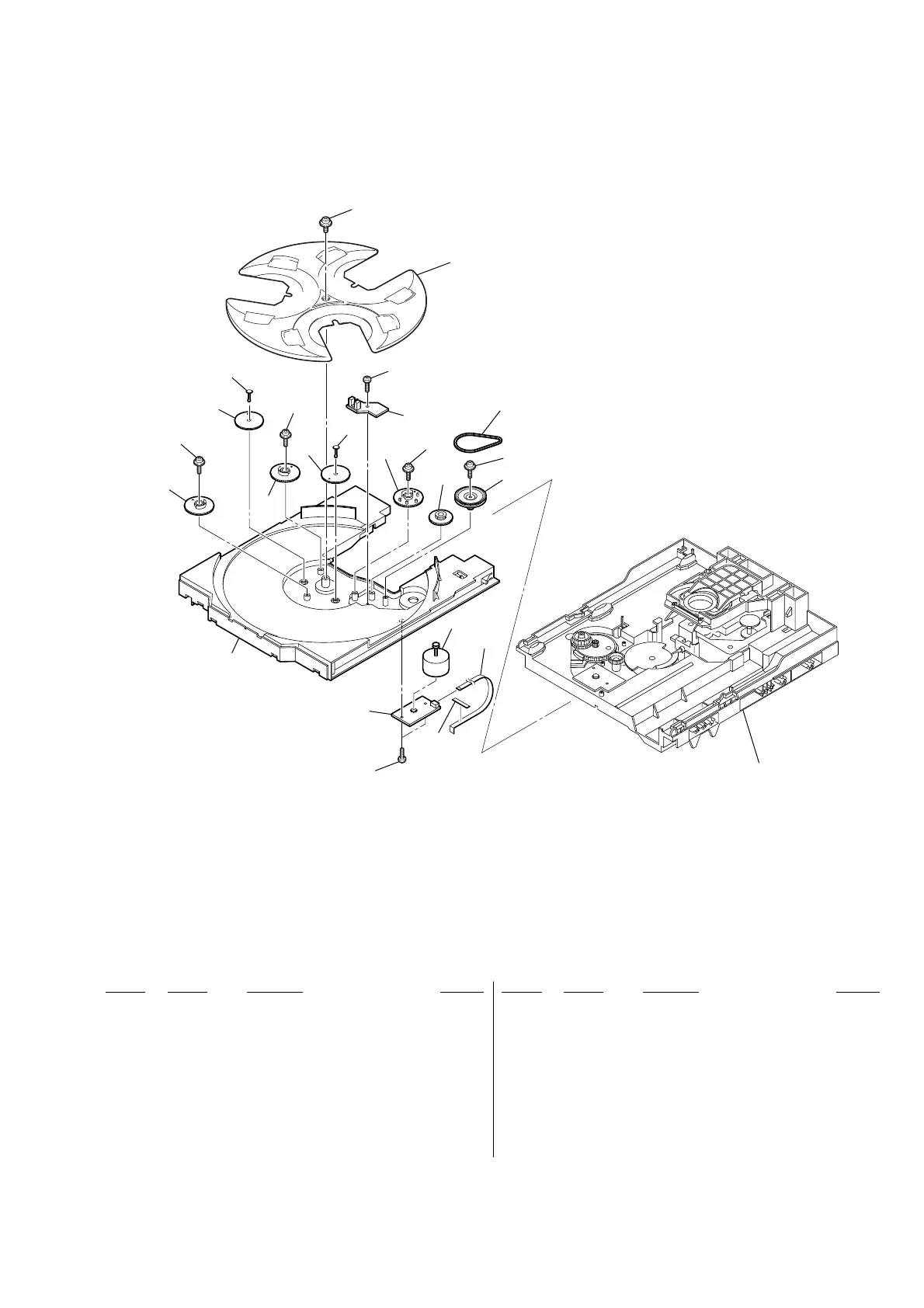

8-5. DVD MECHANISM SECTION-1
(CDM74HF-DVBU101)
201 4-218-253-42 SCREW (M2.6), +BTTP
202 1-776-182-11 WIRE (FLAT TYPE) (5 CORE)
203 1-687-134-12 MOTOR (TB) BOARD
204 4-243-815-11 TABLE (LOADING)
205 4-245-571-02 GEAR (STOPPER)
206 4-218-252-61 SCREW (+PTPWH M2.6), FLOATING
207 4-245-570-01 GEAR (JOINT)
208 4-245-572-01 BUSHING (GEAR)
209 1-687-132-12 SENSOR BOARD
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
210 4-243-820-01 GEAR (TABLE)
211 4-243-819-01 GEAR (GENEVA)
212 4-243-816-21 TRAY
213 4-243-823-01 BELT (TABLE)
214 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
215 4-243-821-01 PULLEY (TABLE)
216 3-231-598-01 SHEET (BA)
M741 A-1108-965-A MOTOR ASSY, TABLE
202
205
205
206
206
207
207
208
208
209
201
206
212
213
214
215
210
211
214
DVD mechanism section-
2
204
201
203
216
M741
