Sony HCD-GN1100D - Exploded Views - DVD Mechanism Section 2

80
HCD-GN1100D

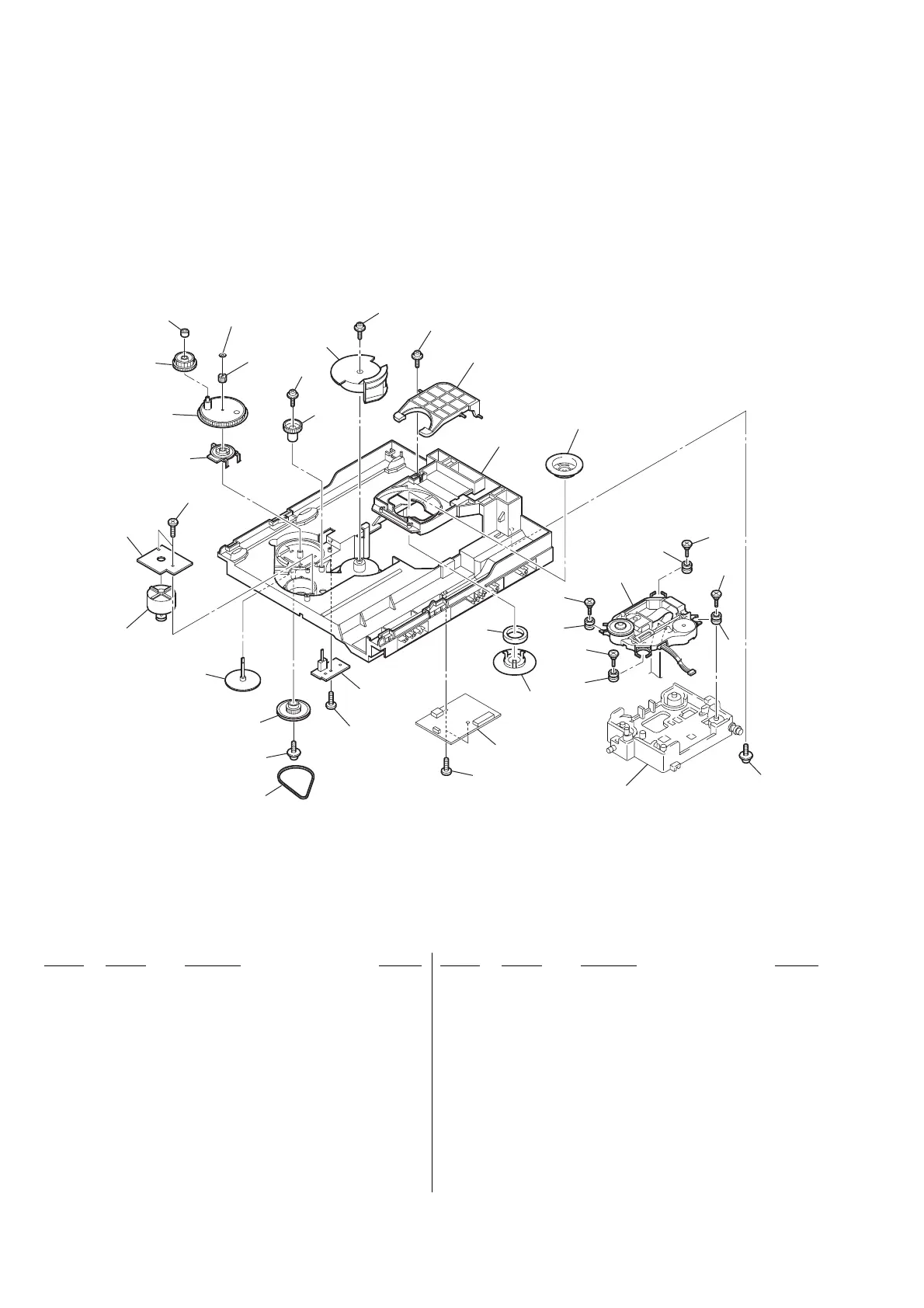

8-6. DVD MECHANISM SECTION-2
(CDM74HF-DVBU101)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
251 4-251-923-01 YOKE (310)
252 4-218-253-32 SCREW (M2.6), +BTTP
253 1-687-669-12 SW BOARD
254 4-244-034-01 BELT (LOADING)
255 4-218-252-52 SCREW (+PTPWH M2.6), FLOATING
256 4-225-844-01 GEAR (LOADING A)
257 4-224-613-11 GEAR (SHAFT)
258 1-687-133-12 MOTOR (LD) BOARD
260 4-244-108-01 GEAR, SWING
261 4-224-609-01 GEAR (LOADING C)
262 4-224-608-01 COLLAR, SWING
263 3-016-533-11 WASHER (FR), STOPPER
264 4-224-611-01 GEAR (LOADING B)
265 4-224-606-01 GEAR (RV)
266 4-243-818-01 GEAR (U/D)
267 2-541-918-01 LEVER (LIFTER (H))
268 2-345-982-01 PULLEY A (310), CHUCKING
269 2-345-983-01 PULLEY B (310), CHUCKING
272 2-634-618-01 INSULATOR
275 3-087-599-01 INSULATOR SCREW
276 4-243-817-22 CHASSIS
0 279 8-820-322-04 OPTICAL PICK-UP KHM-313CAB/C2NP
M751 A-4737-553-A MOTOR ASSY, LOADING
S711 1-477-680-12 ENCODER, ROTARY
251
252
252
252
253
254
255
256
257
258
260
261
262
263
264
265
266
267
269
276
268
255
255
255
M751
S711
272
272
272
272
275
275
275
275
255
279
not supplied
not supplied
