Sony HCD-GR8 - SECTION 2 DISASSEMBLY; CASE; FRONT PANEL SECTION

– 25 –

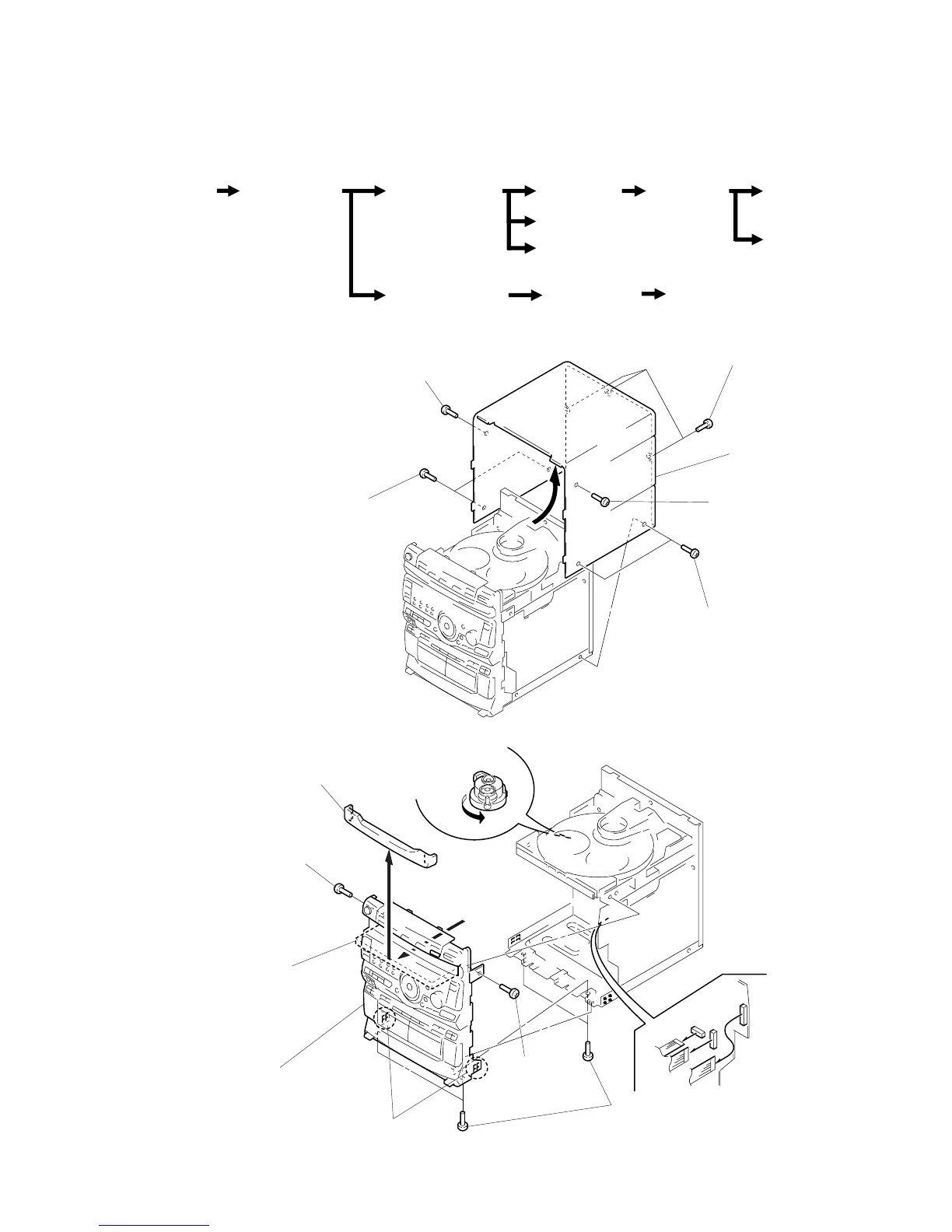

• This set can be disassembled in the order shown below.
SECTION 2
DISASSEMBLY
FRONT PANEL SECTION
3 loading panel
4 three flat wires
(CN102, 205, 206)
5 screw
(BVTP 3
× 10)
6 four screws
(BVTT 3
× 6)
7 two claws
8 front panel section
2 Pull the tray
1 Turn the cam to
direction of the
arrow
A .
Note: Follow the disassembly procedure in the numerical order given.
CASE
3 three screws
(BVTT 3
× 6)
4 Remove the case to
direction of the arrow.
2 screw
(case 3 TP2)
(3
× 10)
1 two screws
(case 3 TP2)
(3
× 8)
2 screw (case 3 TP2)
(3
× 10)
1 two screws
(case 3 TP2)
(3
× 8)
A
5
screw
(BVTP 3
× 10)
MAIN BOARD
(Page 27)
TRAY SECTION
(Page 28)
TAPE MECHANISM
DECK SECTION
(Page 26)
AUDIO BOARD
(Page 30)
CD MECHANISM
DECK SECTION
(Page 26)
BASE UNIT
(Page 27)
BD BOARD
(Page 29)
CAPSTAN MOTOR
(Page 30)
OPTICAL
PICK-UP
(Page 29)
SLED
MOTOR
(Page 29)
FRONT PANEL
SECTION
(Page 25)
CASE
(Page 25)
