Sony HCD-GR8 - (6) BASE UNIT SECTION

– 100 –

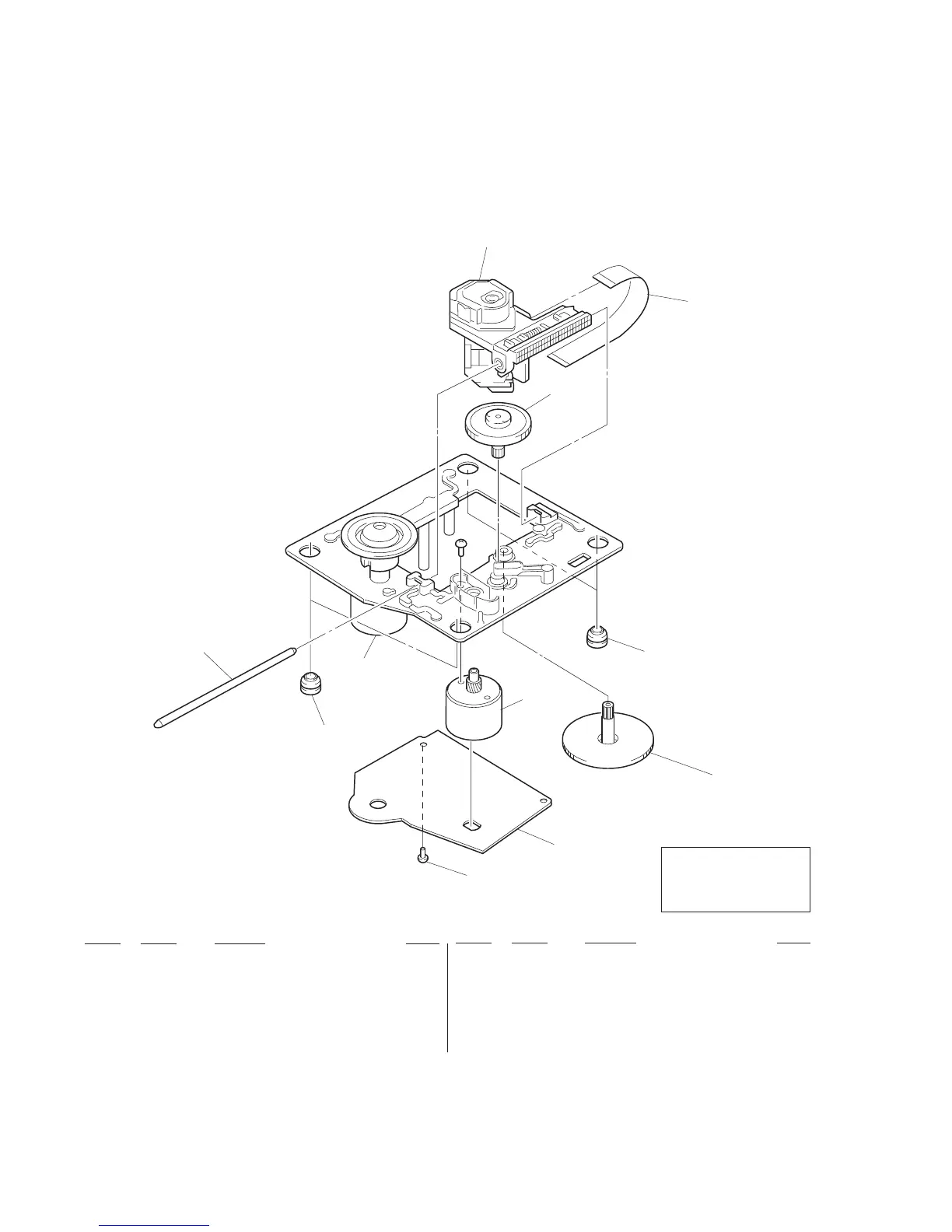

(6) BASE UNIT SECTION
(BU-5BD29AL)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
! 301 8-820-020-01 OPTICAL PICK-UP KSS-213D/Q-NP
302 1-769-069-11 WIRE (FLAT TYPE) (16 CORE)
303 4-917-567-21 GEAR (M)
304 4-951-940-01 INSULATOR (BU) (EXCEPT GR8: EA3, MY)
304 4-951-940-31 INSULATOR (BU) (GR8: EA3, MY/RX90: AEPM)
305 4-917-565-01 SHAFT, SLED
306 4-917-564-01 GEAR (P), FLATNESS
* 307 A-4699-522-A BD BOARD, COMPLETE
308 4-951-620-01 SCREW (2.6X8), +BVTP
M101 X-4917-523-4 MOTOR ASSY SPINDLE
M102 X-4917-504-1 MOTOR ASSY SLED
301
302
303
M101
M102
304
306
307
308
304
305
The components identified by
mark ! or dotted line with
mark ! are critical for safety.
Replace only with part number
specified.
