Sony HCD-GR8 - (7) TAPE MECHANISM DECK SECTION-1

– 101 –
HRPE101
(including
r B)

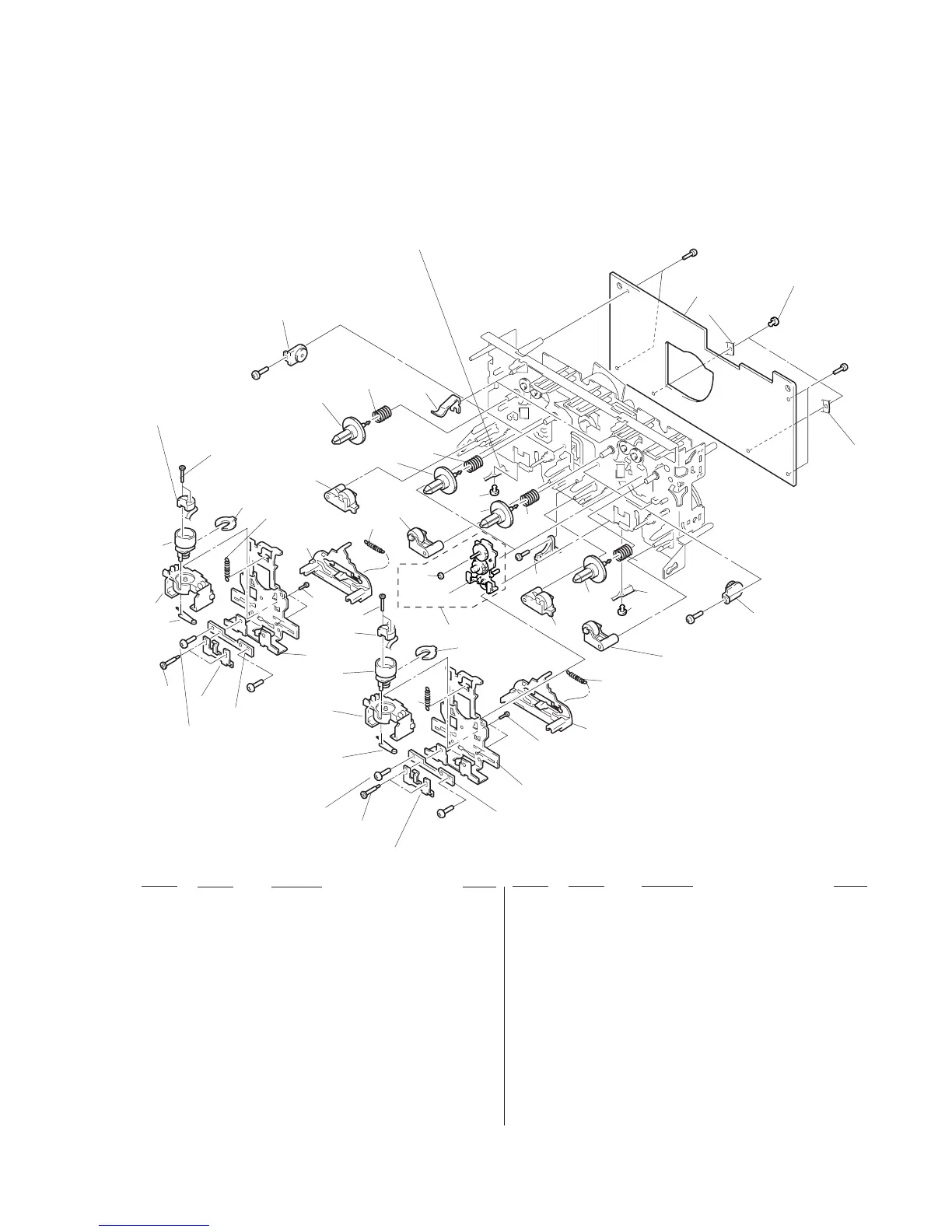

(7) TAPE MECHANISM DECK SECTION-1
(TCM-220WR2)
355
356
355
not supplied
360
357
359
353
360
358
361
366
364
365
#8
371
357
358
r A
not supplied
#7
352
351
not supplied
351
352
not supplied
354
not supplied
HP101
(including
r A)
362
362
363
368
#7
not supplied
#9
#8
374
r B
#9
374
r A
356
373
366
370
364
371
365
371
370
369
372
(including r C)
354
361
359
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
363
353
r B
351 3-908-560-01 SPRING, AZIMUTH ADJUSTMENT
352 3-919-684-01 SCREW, AZIMUTH ADJUSTMENT
353 X-3373-113-1 SLIDER (HEAD) ASSY
354 3-908-556-01 SPRING, HEAD TOGGLE
355 3-908-558-02 FITTING BLOCK, HEAD
356 3-908-557-02 ROTARY BLOCK, HEAD
* 357 3-908-559-01 STOPPER, AZIMUTH
358 3-908-555-01 SLIDER (REV SLIDER)
359 3-917-143-11 SPRING, TENSION
360 3-388-848-01 SCREW (P2X6) (B TIGHT)
361 3-939-371-01 SPRING (1), TENSION
362 X-3369-909-1 PINCH LEVER (REV) ASSY
363 X-3369-908-1 PINCH LEVER (FWD) ASSY
364 3-908-613-01 GEAR (S), REEL
365 3-917-141-01 SPRING, COMPRESSION
366 X-3371-305-1 REEL (T) ASSY
367 3-669-465-01 WASHER (1.5), STOPPER
368 X-3370-173-1 TU ASSY
* 369 4-980-439-01 FULCRUM, HOLDER
370 3-917-142-01 SPRING, COMPRESSION
371 3-939-862-01 CLIP
* 372 A-2007-131-A AUDIO BOARD, COMPLETE
373 3-930-972-01 DETENT, HALF
374 3-354-963-01 DAMPER
HP101 1-500-093-11 HEAD, MAGNETIC (PLAYBACK) (DECK A)
HRPE1011-500-094-11 HEAD, MAGNETIC (REC/PB/ERASE) (DECK B)
367
#9
not supplied
