SW OSC Voltage Adjustment
(GR8: Tourist only)
Setting:
Band: SW
Procedure:
1. Connect digital Voltmeter to diode D1 center lead and ground.
2. Adjust for a following value reading on digital voltmeter.
frequency part digital
Adjustment Reading on voltmeter
5.95 MHz T2 1.2 ± 0.1 V
SW
17.9 MHz CV2 8.5 ± 0.2 V
SW Tracking Adjustment
(GR8: Tourist only)
Setting:
Band: SW
Procedure:
Adjust for maximum reading on level meter.
• Repeat the procedures is each adjustment several times, and the
frequency coverage and tracking adjustment should be finally
done by the trimmer capacitors.
Set frequency
part
Adjustment
7 MHz T1
SW
17 MHz CV1

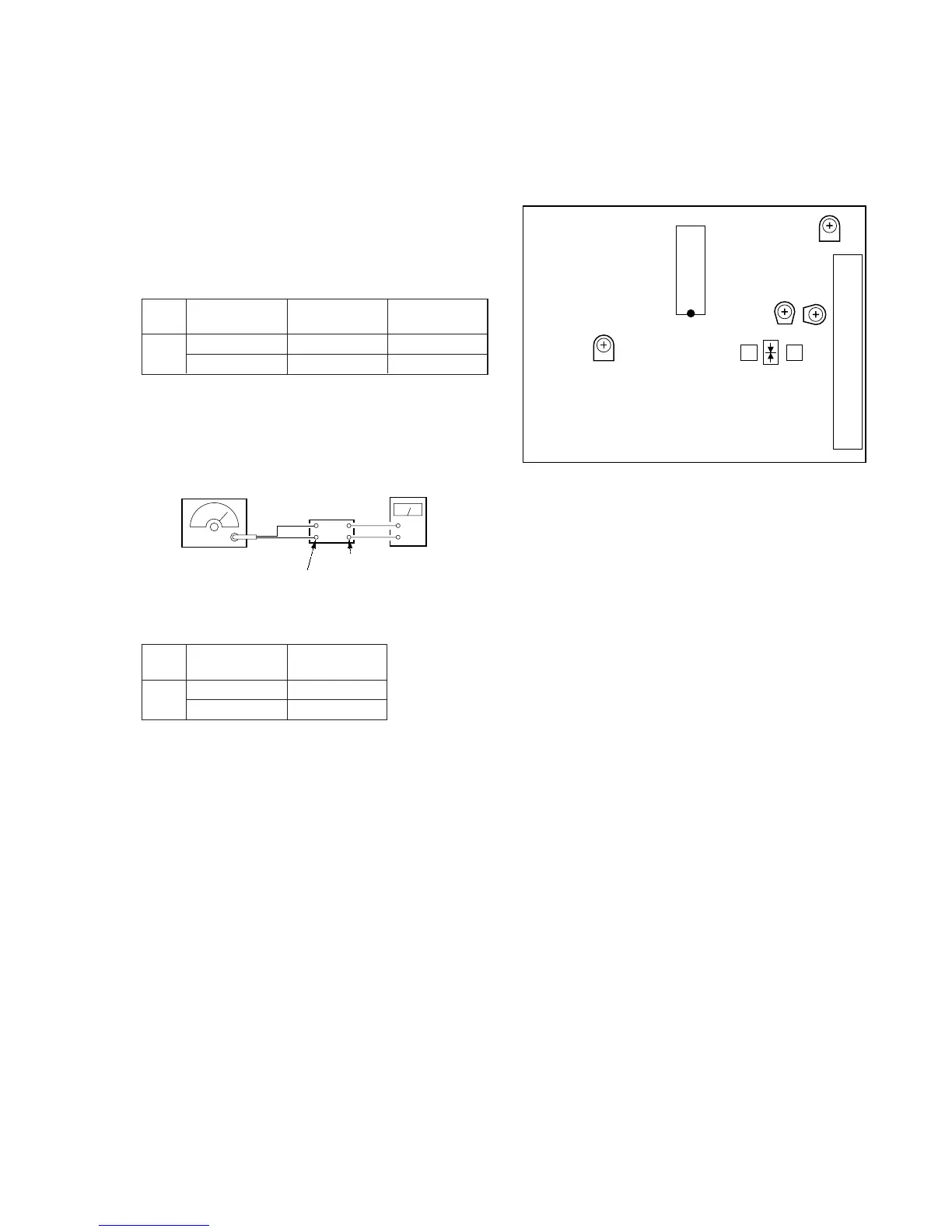

Adjustment Location:
[TCB BOARD] (Component Side)
