Sony HCD-GRX20 - Schematic Diagram Amplifier Section

HCD-GRX20/RXD3
2727

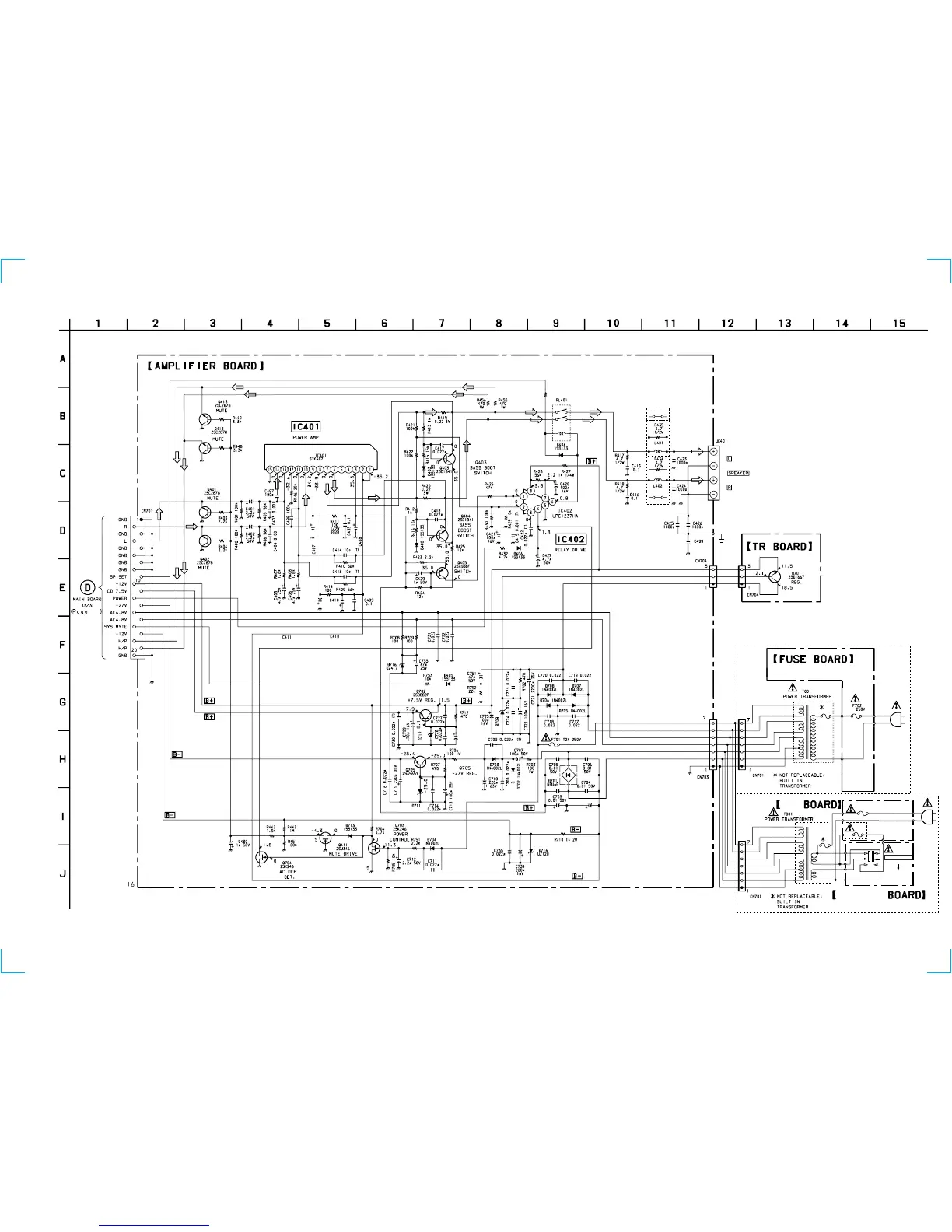

6-10. SCHEMATIC DIAGRAM AMPLIFIER SECTION
• Refer to page 19 for Note on Schematic Diagram.
AC IN
C726
100µ
16V
UZ-12BSA
UZ-8.2BSA
UZ-27BSA-TA
C701
3300µ 50V :
EXCEPT AUS MODEL
3300µ 63V :
AUS MODEL
C702
3300µ 50V :
EXCEPT AUS MODEL
3300µ 63V :
AUS MODEL
100µ 50V :
EXCEPT AUS MODEL
100µ 63V : AUS MODEL
100µ 50V: EXCEPT AUS MODEL 100µ 63V:AUS MODEL
100µ 50V: EXCEPT AUS MODEL 100µ 63V:AUS MODEL
*
100µ 50V :
EXCEPT AUS MODEL
100µ 63V : AUS MODEL
*
-070E
R444
10
0.022
(CHASSIS)
J746
J475
GRX20
MODEL
GRX20
MODEL
RXD3
MODEL
RXD3
MODEL
T2A
AC IN
SW401
GRX20 : AR,E,SP,TW : 4.0A 250V
GRX20 : AR,E,SP,TW MODEL
GRX20 : MX : 4.0A 125V
F702
AC VOLTAGE
220 – 240 V
110 – 120 V
GRX20 : AUS, RXD3 MODELS
GRX20 : E,SP,TW,MX,AR MODELS
AC SWITCH
FUSE
F703
T2AL
250V
23
