Sony HCD-GRX20 - SECTION 7 EXPLODED VIEWS; 7-1. CABINET SECTION

35
SECTION 7
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
• Abbreviation
AUS : Australian model
G : German model
SP : Singapore model
MX : Mexican model
AR : Argentina model
TW : Taiwan model
AED : North European model
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.

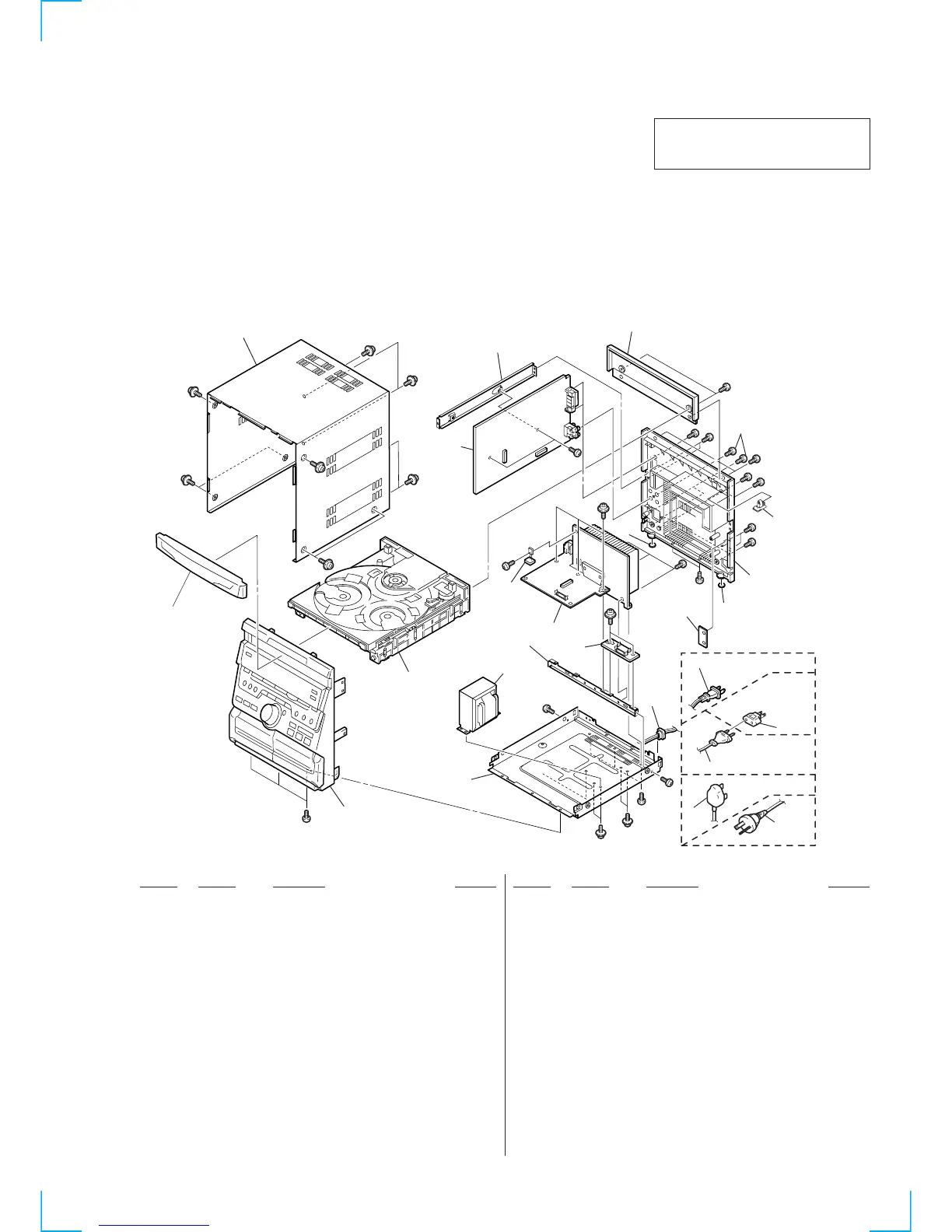

7-1. CABINET SECTION
1
2
4
5
6
12
7
11
8
9
9
9
9
10
13
13
14
15
CD mechanism deck
Front panel section
T001
not supplied
#10
#10
#10
#15
#15
#18
#18
#18
#12
#12
#15
#15
#15
#4
#15
#14
#14
#15
#17
#17
#17
#17
#17
#11
#17
#15
#10
#22
not supplied
not supplied
E,MX MODEL
UK MODEL
AUS MODEL
SP,TW MODEL
SP,TW,AEP,AED,
CIS,G MODEL
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 4-220-797-01 DOOR,CD (RXD3)
1 4-221-607-01 DOOR,CD (GRX20)
2 4-220-799-01 COVER, TOP
4 A-4426-302-A MAIN BOARD ,COMPLETE (RXD3)
4 A-4426-303-A MAIN BOARD ,COMPLETE (GRX20)
* 5 4-210-591-01 CABINET (A), REAR
6 4-221-603-01 CABINET, REAR (RXD3)
6 4-221-604-01 CABINET, REAR (GRX20:AUS)
6 4-221-605-01 CABINET, REAR (GRX20:AR,E,SP,TW)
6 4-221-606-01 CABINET, REAR (GRX20:MX)
7 A-4426-292-A AMPLIFIER BOARD ,COMPLETE (RXD3)
7 A-4426-293-A AMPLIFIER BOARD ,COMPLETE (GRX20:AUS)
7 A-4426-294-A AMPLIFIER BOARD ,COMPLETE
(GRX20:AR,E,MX,SP,TW)
8 1-674-558-11 FUSE BOARD
! 9 1-551-506-99 CORD, POWER (GRX20:E,MX)
! 9 1-555-795-00 CORD, POWER
(GRX20:SP,TW/RXD3:AED,AEP,CIS,G)
! 9 1-696-572-21 CORD, POWER (RXD3:UK)
! 9 1-696-966-11 CORD, POWER (GRX20:AUS)
! 9 1-783-941-41 CORD, POWER (GRX20:AR)
10 3-703-244-21 BUSHING, CORD
11 1-674-554-11 TR BOARD
12 1-674-794-11 PHOTO SOCKET BOARD
13 4-220-602-01 RUBBER, FOOT
! 14 1-569-008-21 ADAPTOR, CONVERSION 2P (SP,TW)
15 1-674-880-11 AC SWITCH BOARD (GRX20:AR,E,MX,SP,TW)
! T001 1-433-917-11 TRANSFORMER, POWER (GRX20:MX)
! T001 1-433-918-11 TRANSFORMER, POWER (RXD3)
! T001 1-433-919-11 TRANSFORMER, POWER (GRX20:AR,E,SP,TW)
! T001 1-433-920-11 TRANSFORMER, POWER (GRX20:AUS)
