Sony HCD-GRX20 - 7-5. BASE UNIT SECTION (KSM-213 ECM)

39

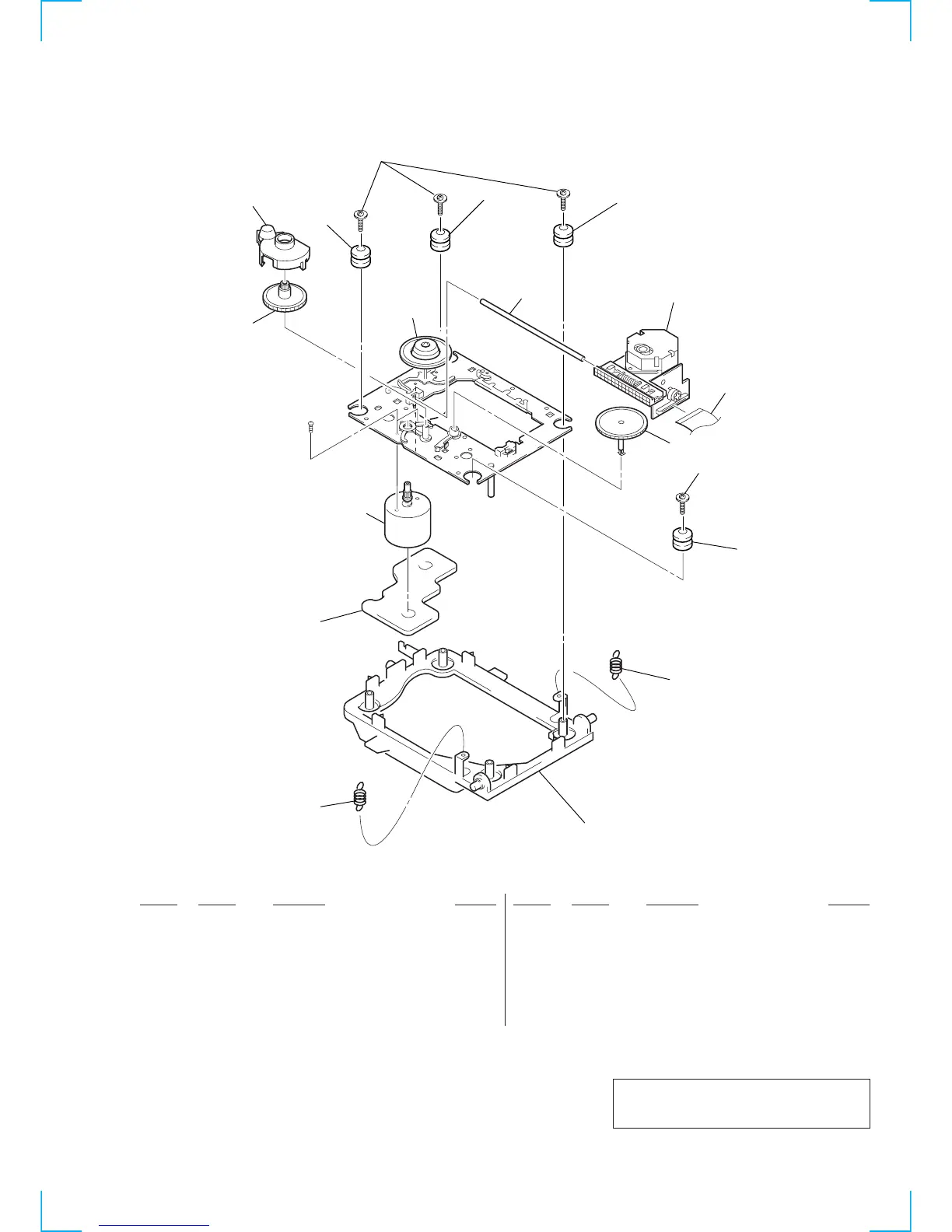

7-5. BASE UNIT SECTION (KSM-213ECM)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
201 4-992-164-01 BASE, KSM MECHANICAL
202 4-992-165-01 DAMPER (GREEN)
203 4-992-166-01 DAMPER (RED)
204 4-992-167-01 SPRING, MECHANICAL BASE
205 2-626-907-01 GEAR (A)(S)
206 2-626-908-01 SHAFT, SLED
207 2-627-003-02 GEAR (B)
209 1-639-678-12 MOTOR (6P)(S) BOARD
210 1-783-740-11 WIRE (FLAT TYPE)
! 211 8-820-054-03 OPTICAL PICK-UP KSS-213ECM/C2NP
212 3-319-501-51 SCREW (+PTPWH) (2.6 × 16)
M101 X-2625-877-1 MOTOR ASSY (SPINDLE)
M102 X-2625-769-1 MOTOR ASSY (SLED)
202
203
212
212
202
207
206
203
205
210
211
204
209
204
201
M102
#1
not supplied
M101
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
