Sony HCD-GRX20 - 7-3. CD MECHANISM DECK SECTION-1

37

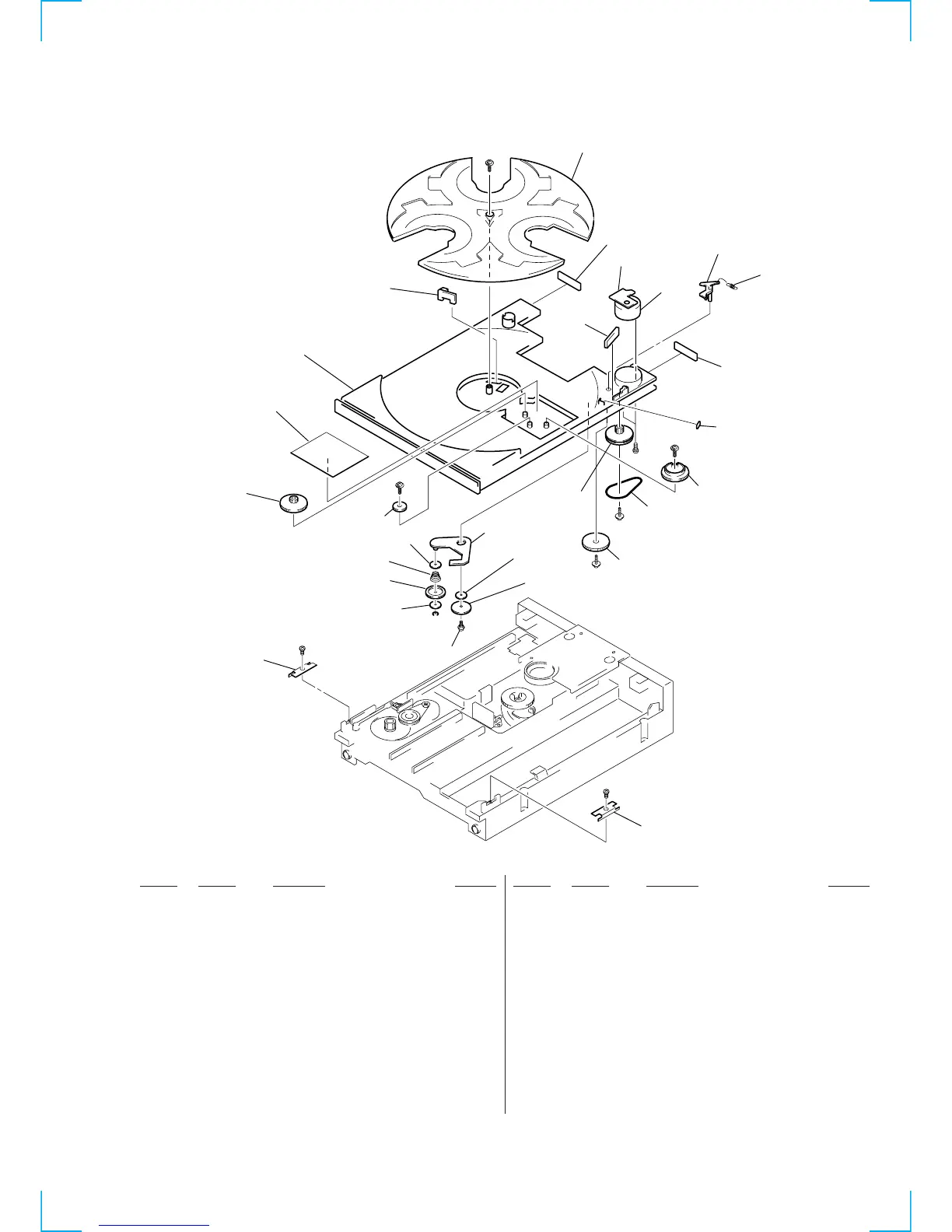

7-3. CD MECHANISM DECK SECTION-1
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
101 1-674-792-11 MOTOR BOARD
103 4-221-891-01 BASE CHANGER
104 4-221-895-01 SHEET, BLIND
105 4-221-896-01 LEVER, SENSOR (SW)
106 4-992-182-01 SPRING, SENSOR (SW) LEVER
107 4-992-170-01 BELT, LOADING
108 4-992-171-01 PULLEY, GEAR
109 4-221-894-01 GEAR, TR
110 4-221-892-01 GEAR, TR LOCK
111 4-221-893-01 GEAR (C), RELAY
112 4-992-187-01 CUSHION
113 4-992-186-01 CUSHION, SW LEVER
114 4-992-173-01 GEAR (B), RELAY
115 4-992-183-01 SCREW, RELAY GEAR (B)
116 4-992-174-01 GEAR, CHANGE
117 4-992-184-01 WASHER, CHANGE GEAR
118 4-992-176-01 SPRING, CHANGE GEAR
119 4-992-185-01 WASHER, CHANGE PLATE
120 4-992-172-01 GEAR (A), RELAY
121 4-221-902-01 PLATE, T/T
122 4-992-201-01 WASHER, POLYEHTHYLENE
123 1-674-789-11 SW (B) BOARD
124 1-674-788-11 SW (A) BOARD
* 125 4-993-034-01 GUIDE, RAIL
126 4-221-901-01 TURNTABLE
M103 X-4948-765-1 MOTOR ASSY
103
123
104
109
125
125
117
115
119
114
121
111
122
118
116
120
107
110
113
112
108
106
105
101
124
112
126
#9
#10
#11
#10
#9
M103
#9
#11
#11
#12
