Sony HCD-HP7 - CONNECTOR Board; Motor (Stocker) Assy (Stocker)(M761)

15
HCD-HP7
3-13. CONNECTOR Board
3-14. Motor (Stocker) Assy (Stocker)(M761)
3

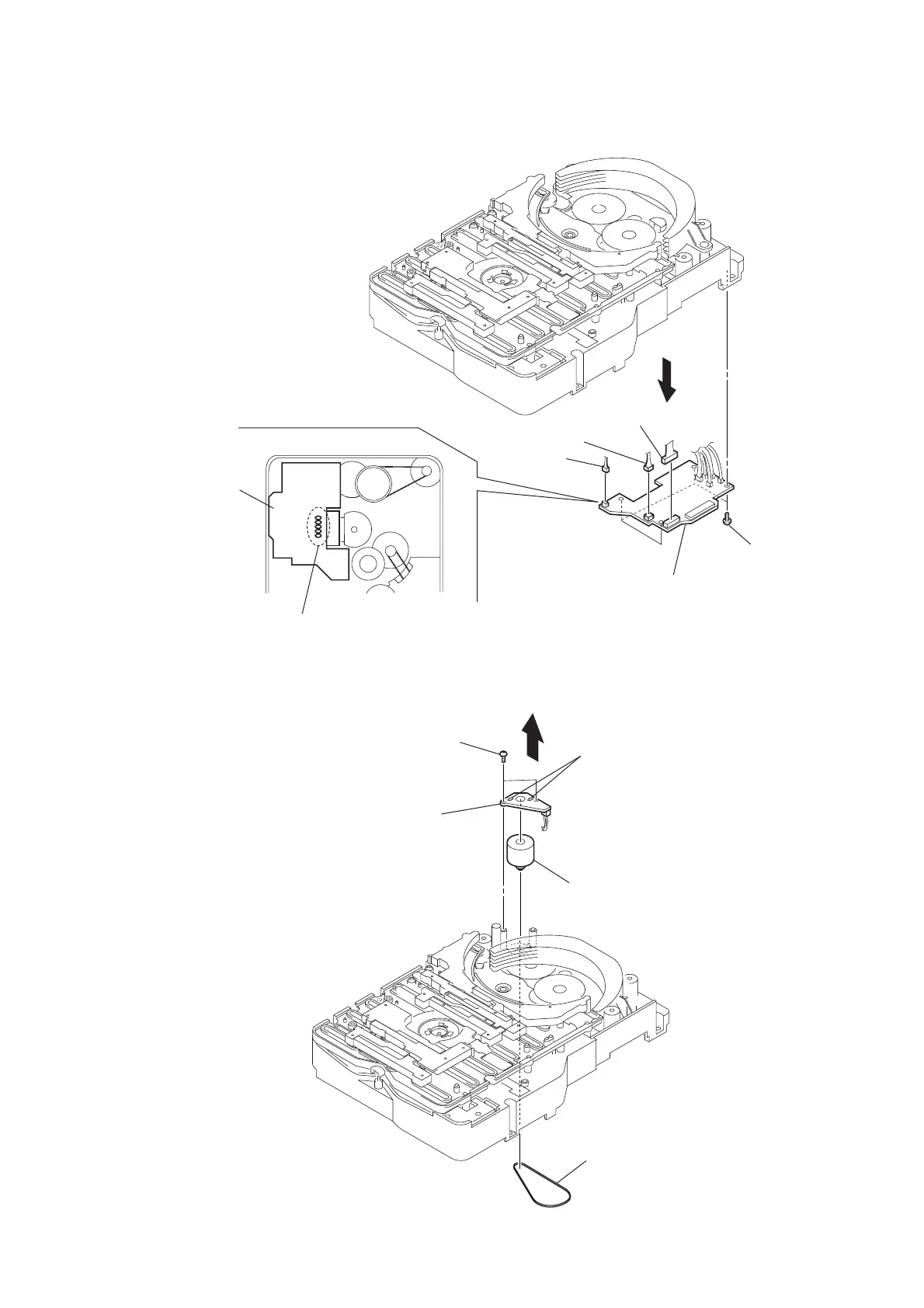

1 Remove five solders.
– bottom view –
CONNECTOR board
2 four screws
(BVTP2.6
× 8)
4 connector
(CN710)
6 connector
(CN703)
5 connector
(CN702)
7 CONNECTOR board
4
5 STOCKER MOTOR board
3 two screws
(BVTP2.6 × 8)
2 Remove two solder
s
6 motor (stocker) assy
(stocker) (M761)
1 belt (mode)
