Sony HCD-HP7 - Exploded Views of Components

SECTION 9
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
•Abbreviation
AUS: Australian model.
CND: Canadian model.
E2 : 120 V AC area in E model.
E3 : 220-240 V AC area in E model.
KR : Korean model.
MX : Mexican model.
RU : Russian model.
TH : Thai model.
TW : Taiwan model.
44
HCD-HP7
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
1 3-363-099-71 SCREW (CASE 3 TP2)(EXCEPT KR)
1 3-363-099-81 SCREW (CASE 3 TP2)(KR)
2 4-246-394-01 CASE (SIDE-L)(US)
2 4-246-394-11 CASE (SIDE-L)(EXCEPT US)
3 4-246-395-01 LID (TC)
4 4-246-396-01 WINDOW (TC)
5 4-232-195-01 SPRING (LID)
6 4-951-620-01 SCREW (2.6X8), +BVTP
7 4-231-776-01 SPRING, CASSETTE DETENT
8 4-246-390-01 PANEL (L), SUB TOP
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
9 4-246-389-01 PANEL, TOP (US)
9 4-246-389-11 PANEL, TOP (EXCEPT US)
10 4-246-391-01 PANEL (R), SUB TOP
11 1-827-392-11 WIRE (FLAT TYPE)(8 CORE)
12 1-796-351-41 MECHANISM, SINGLE CASSETTE
13 4-246-393-01 CASE (SIDE-R)(US)
13 4-246-393-11 CASE (SIDE-R)(EXCEPT US)
14 4-246-403-01 SPACER
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3

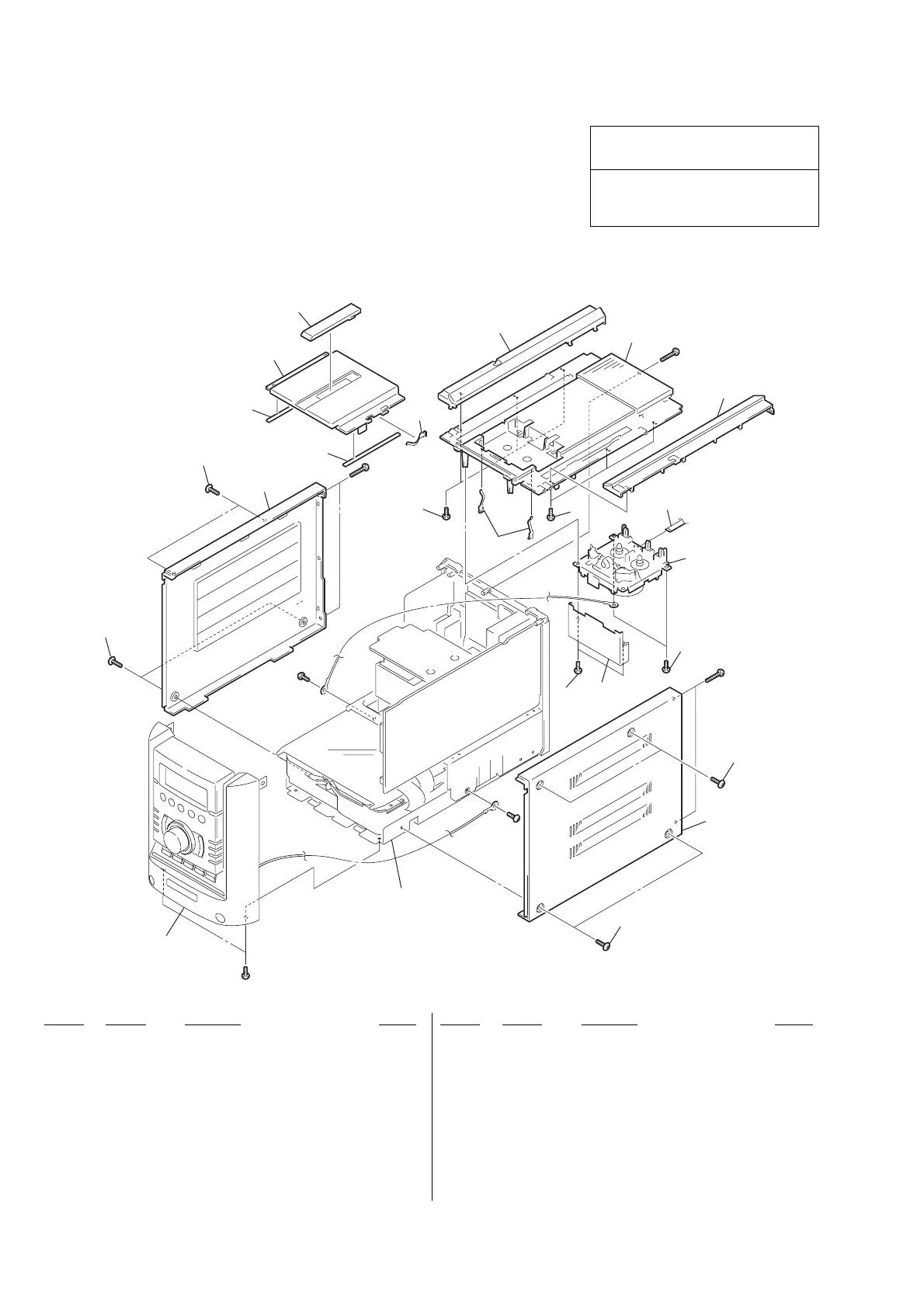

9-1. Case, Top Panel Section
#2
#2
#1
#1
#1
#2
front panel section
chassis section
10
9
7
6
6
11
8
4
3
5
2
1
6
1
1
12
13
6
14
14
1
not
supplied
