Sony HCD-HP7 - Chassis Section-1

46
HCD-HP7
101 1-689-250-11 PWR TRANS BOARD
102 A-4734-342-A PWR AMP BOARD, COMPLETE (EXCEPT TH)
102 A-4747-550-A PWR AMP BOARD, COMPLETE (TH)
103 1-689-248-12 SENSOR (FAN) BOARD
104 1-689-246-12 SUB TRANS BOARD
105 1-787-025-11 DC FAN
106 4-225-252-01 CUSHION (FOOT)
107 1-693-625-11 TUNER (FM/AM)(US,CND)
107 1-693-626-11 TUNER (FM/AM)(AEP,UK)
107 1-693-627-11 TUNER (FM/AM)(RU)
107 1-693-628-11 TUNER (FM/AM)(E2,E3,TW,TH,MX,AUS)
107 1-693-629-11 TUNER (FM/AM)(KR)
108 1-769-946-11 WIRE (FLAT TYPE)(11 CORE)(EXCEPT AEP,UK)
108 1-773-009-11 WIRE (FLAT TYPE)(15 CORE)(AEP,UK)
109 A-4734-344-A MAIN BOARD, COMPLETE (EXCEPT AEP,UK,TH)
109 A-4734-354-A MAIN BOARD, COMPLETE (AEP,UK)
109 A-4747-553-A MAIN BOARD, COMPLETE (TH)
0 F901 1-533-454-11 FUSE, GLASS TUBE (DIA. 5)(T6.3AL/125V)
(US,CND,MX)
0 F901 1-533-473-11 FUSE, GLASS TUBE (DIA. 5)(T6.3AL/250V)
(EXCEPT US,CND,MX)
0 F902 1-533-454-11 FUSE, GLASS TUBE (DIA. 5)(T6.3AL/125V)
(US,CND,MX)
0 F902 1-533-473-11 FUSE, GLASS TUBE (DIA. 5)(T6.3AL/250V)
(EXCEPT US,CND,MX)
0 F903 1-533-451-11 FUSE, GLASS TUBE (DIA. 5)(T3.15AL/125V)
(US,CND,MX)
0 F903 1-533-470-11 FUSE, GLASS TUBE (DIA. 5)(T3.15AL/250V)
(EXCEPT US,CND,MX)
0 F904 1-533-451-11 FUSE, GLASS TUBE (DIA. 5)(T3.15AL/125V)
(US,CND,MX)
0 F904 1-533-470-11 FUSE, GLASS TUBE (DIA. 5)(T3.15AL/250V)
(EXCEPT US,CND,MX)
0 F905 1-533-471-11 FUSE, GLASS TUBE (DIA. 5)(T4AL/250V)
(E2,E3,TW)
0 T901 1-439-827-11 TRANSFORMER, POWER
(E2,E3,KR,TW,TH,AUS)
0 T901 1-439-828-11 TRANSFORMER, POWER (US,CND,MX)
0 T901 1-439-829-11 TRANSFORMER, POWER (AEP,UK,RU)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-685-881-09 SCREW +BVTT 4X8 (S)
#4 7-682-552-09 SCREW +B 3X16
#5 7-684-023-04 N 3, TYPE 2
#8 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.

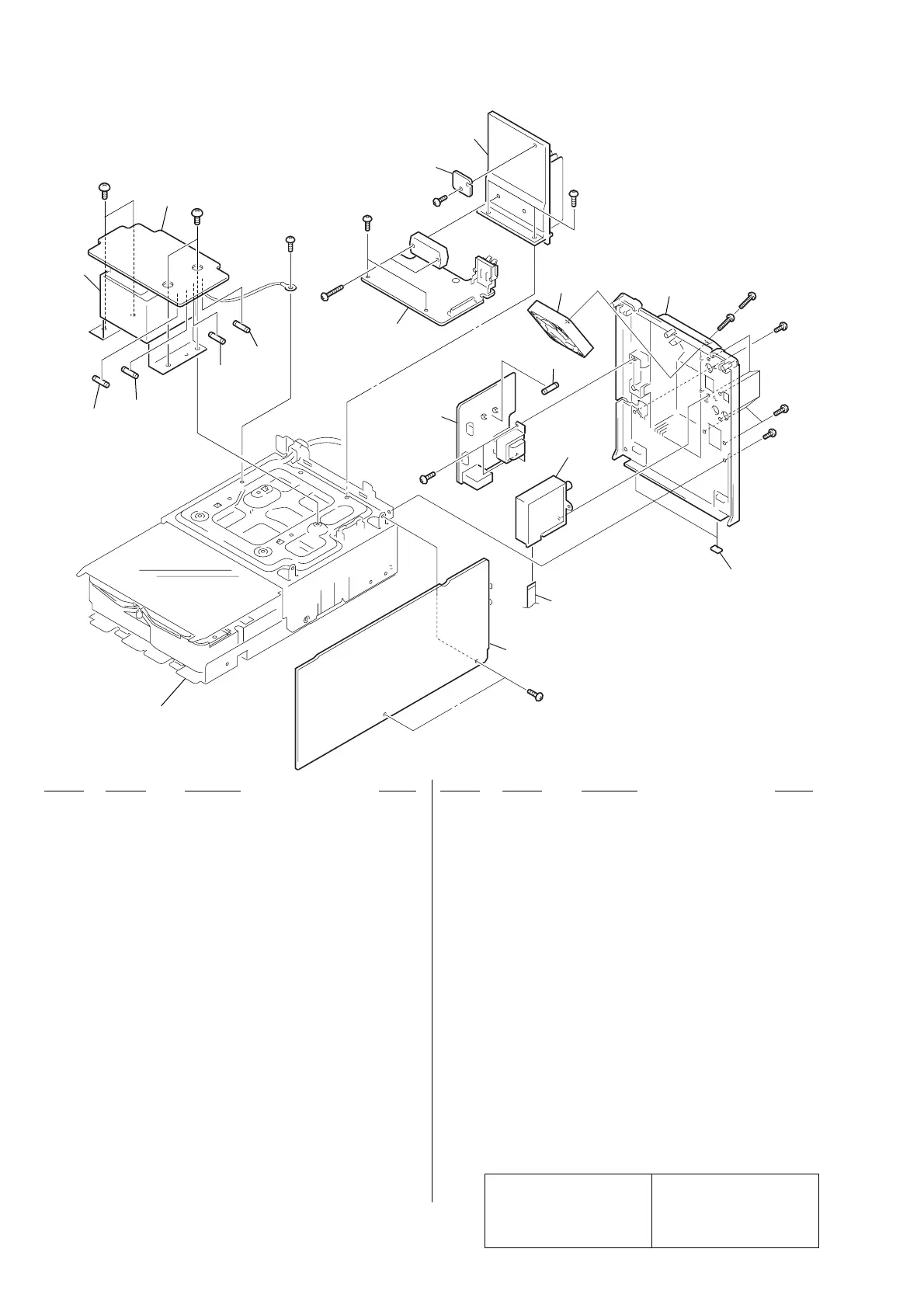

9-3. Chassis Section-1
F901
T901
F902
F903
F904
F905
#4
#1
#1
#1
#1
#1
#1
#1
#
8
#5
#5
#1
#3
#3
chassis section
not
supplied
not
supplied
101
103
107
108
109
104
102
105
106
Ver 1.1 2003.11
