Sony HCD-HP7 - CD Mechanism Section-5 (CDM69 CH-K6 BD71 C)

52
HCD-HP7
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
501 4-240-020-01 GEAR (TIMING)
502 4-239-708-02 BELT (FRONT), TIMING
503 4-239-697-01 GEAR (CENTER)
504 X-4955-15701 SLIDER (MODE CAM V) ASSY
505 4-239-706-02 BELT (REAR), TIMING
506 4-239-699-01 PULLEY
507 4-247-349-02 BELT (ROLLER V)
508 4-227-899-01 SCREW (DIA. 12), FROATING
509 4-239-686-01 GEAR (ROLLER DECELERATION)
#4 7-685-902-21 SCREW +PTPWH 2.6X8 (TYPE2)

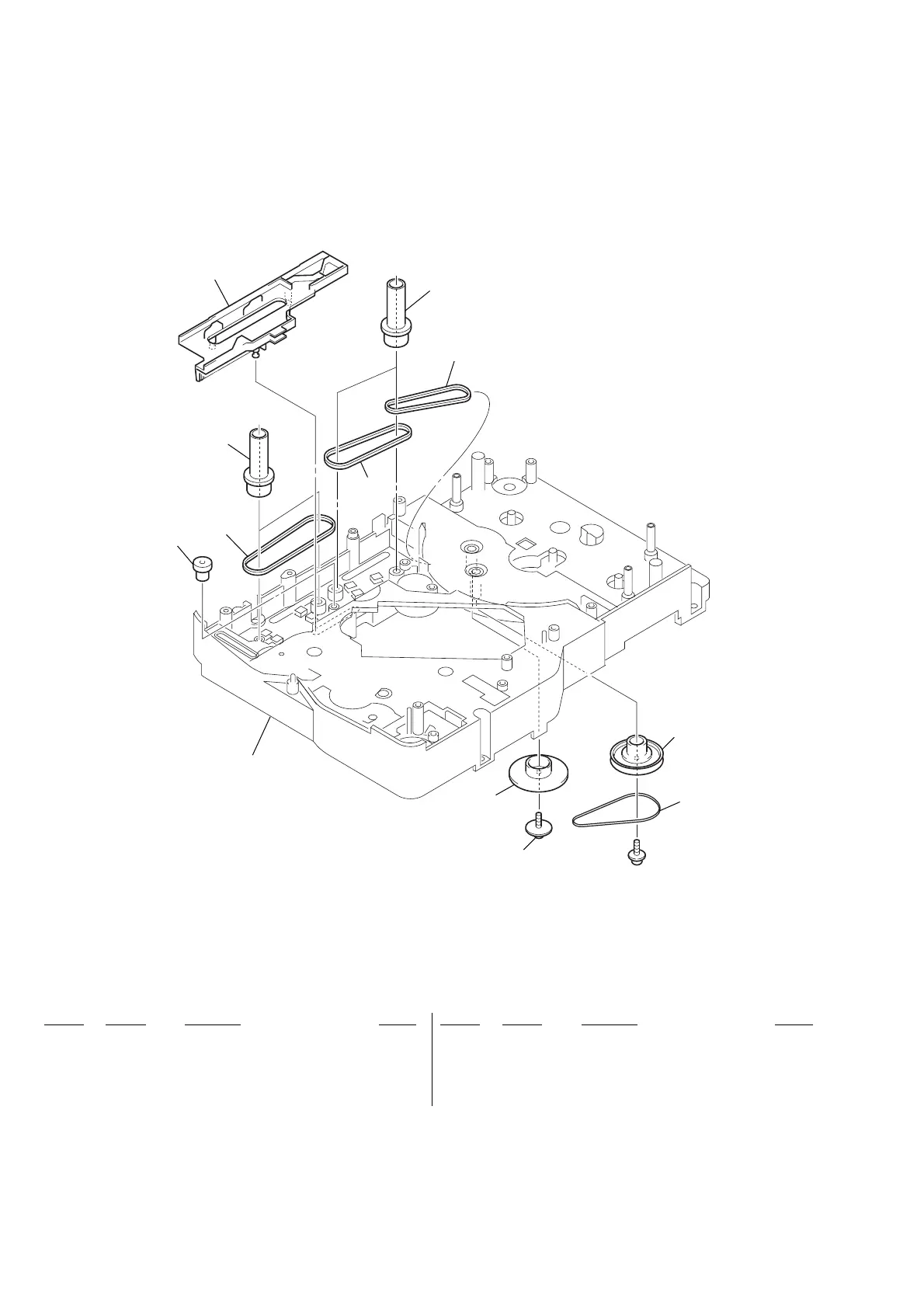

9-9. CD Mechanism Section-5 (CDM69CH-K6BD71C)
501
502
503
503
504
505
505
506
507
509
508
#4
CD mechanism sdeck ection-6
