Sony HCD-HP7 - CD Mechanism Section-1 (CDM69 CH-K6 BD71 C)

48
HCD-HP7
301 1-686-725-12 STOCKER MOTOR BOARD
302 4-951-620-01 SCREW (2.6X8), +BVTP
303 4-239-690-01 CAM (STOCKER U/D)
304 4-239-618-01 SCREW (+PWH,2X6), STEP TAPPING
306 4-239-687-01 GEAR (STOCKER COMMUNICATION)
307 A-4731-113-A CONNECTOR BOARD, COMPLETE
308 4-239-689-01 GEAR (STOCKER DECELERATION)
309 4-239-698-01 PULLEY (STOCKER)
310 4-211-237-01 BELT (MODE)
312 4-986-156-01 PULLEY, MOTOR
M761 A-4735-953-A MOTOR ASSY (STOCKER)
S702 1-477-299-11 ENCODER, ROTARY (STOCKER POSITION)
#4 7-685-902-21 SCREW +PTPWH 2.6X8 (TYPE2)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

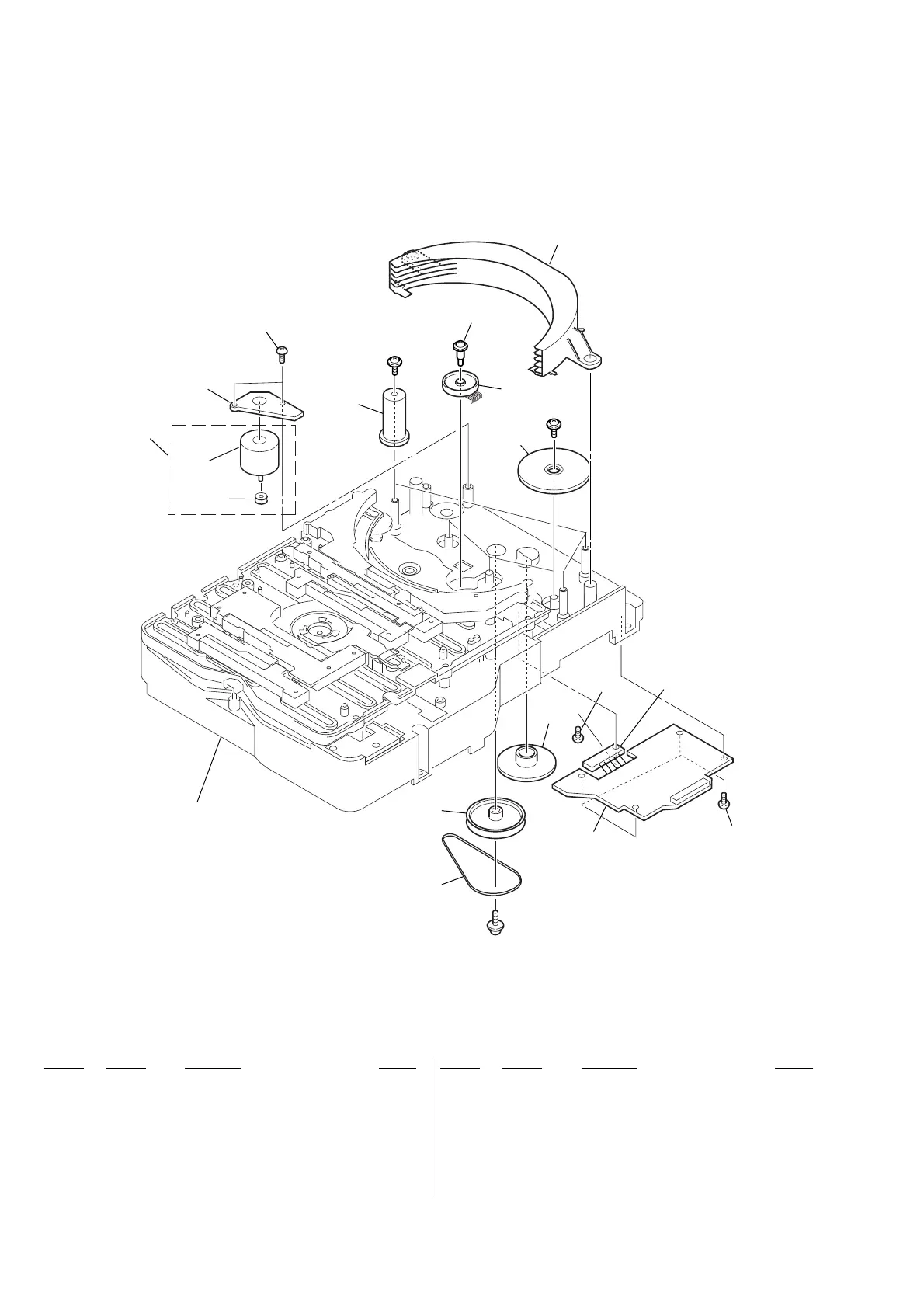

9-5. CD Mechanism Section-1 (CDM69CH-K6BD71C)
308
302
307
309
310
302
#4
306
#4
303
304
#4
S702
301
302
M761
CD mechanism deck section-2
not supplied
not supplied
312
not
supplied
