Sony HCD-HP7 - CD Mechanism Section-3 (CDM69 CH-K6 BD71 C)

50
HCD-HP7
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
401 X-4955-448-1 PULLEY(A)(KSM213)ASSY,CHUCKING
402 4-992-069-01 SCREW (+PTPWH)(M2)(DIA. 7)
403 4-239-648-01 PARASOL (ROLLER)
404 4-239-646-01 ROLLER (ROLLER)
405 4-239-641-01 SPRING (1.2), TENSION
406 4-239-642-01 SPRING (3), TENSION COIL
407 4-239-679-01 SPRING (5), TENSION COIL
408 4-243-703-01 YOKE (213)
409 4-239-649-01 PARASOL (STOCKER)
411 4-244-035-01 ROLLER (STOCKER), RUBBER
412 4-239-640-01 PINION (SLIDER)
413 4-243-291-01 SPRING, TORSION
414 4-240-039-01 LEVER (DISC STOPPER)
415 4-239-702-01 ROLLER (DISC STOPPER)
416 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
417 4-243-713-01 LEVER (LIFTER)
418 4-239-647-01 PARASOL (MAIN)
419 4-243-916-01 ROLLER (S), RUBBER
420 4-241-599-01 LEVER (SUPPORT)
421 4-239-643-01 SPRING (4), TENSION COIL
422 1-471-244-11 MAGNET
423 4-244-032-01 ROLLER, RUBBER

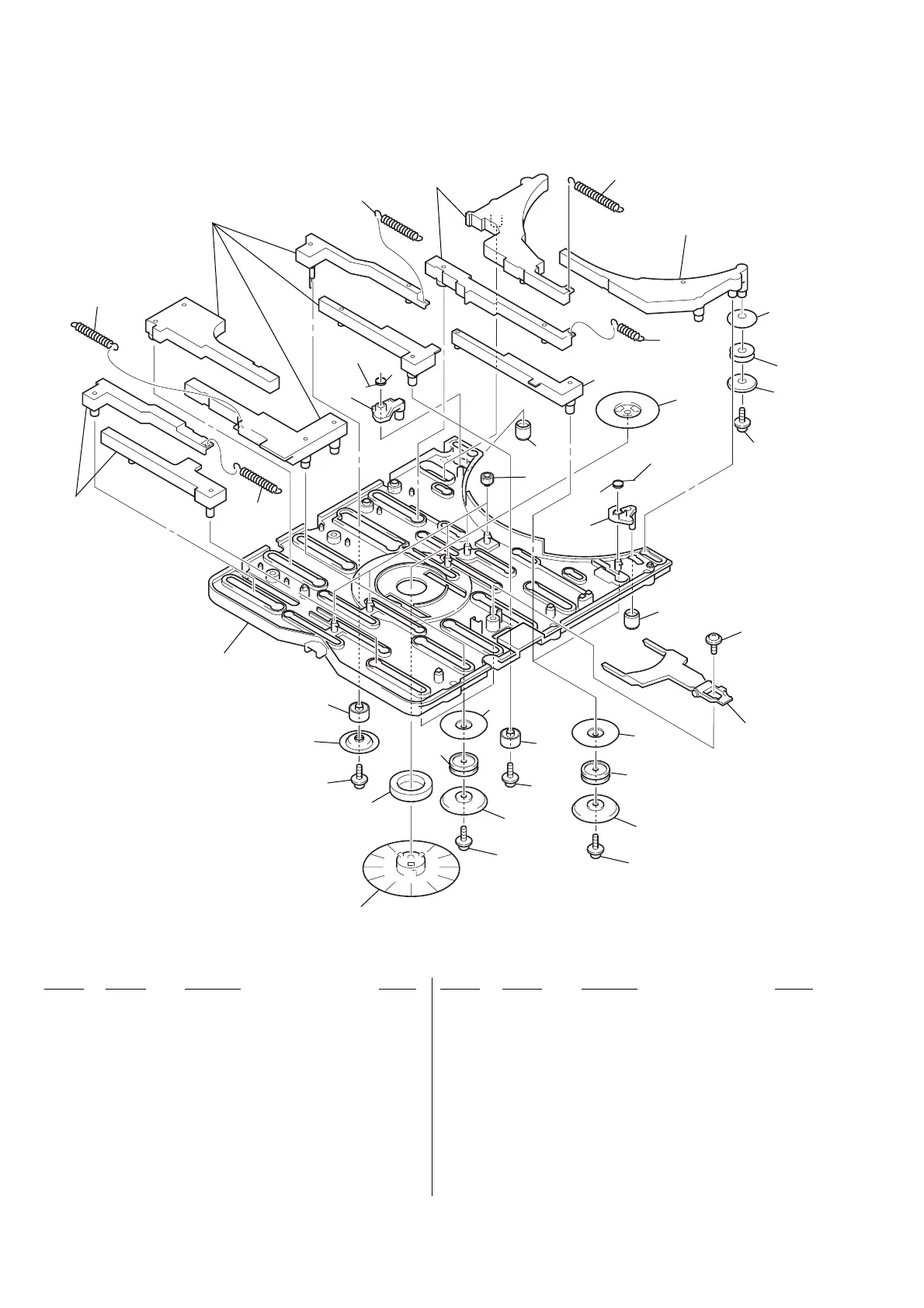

9-7. CD Mechanism Section-3 (CDM69CH-K6BD71C)
