Sony HCD-HP7 - Rubber Roller (Slider) Assy; Timing Belt (Front;Rear)

17
HCD-HP7

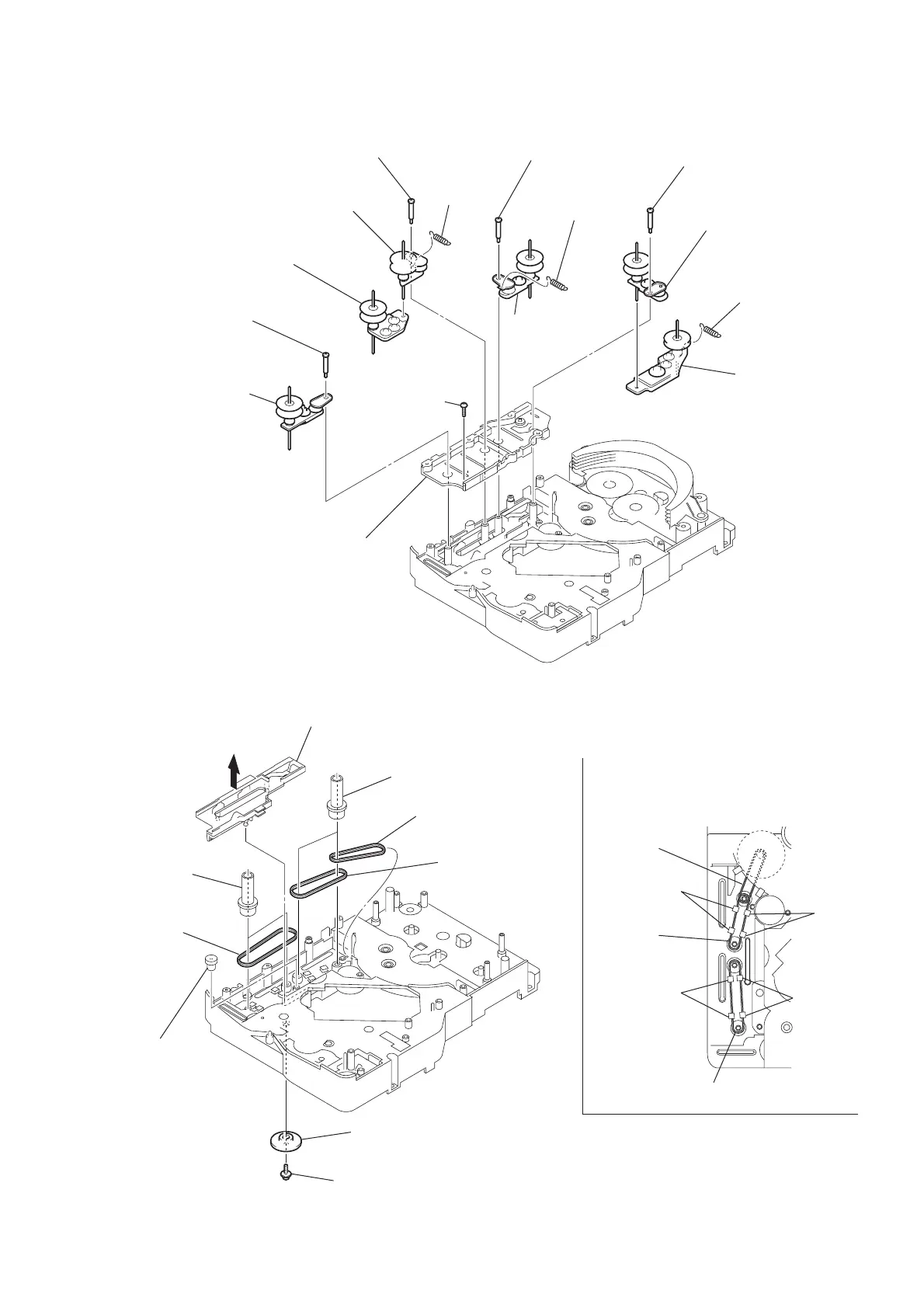

3-17. Rubber Roller (Slider) Assy
3-18. Timing Belt (Front/Rear)
qg sub chassis
qf screw
(BVTP2.6
× 8)
8 step screw
qs step screw
5 step screw
9 tension
spring
(slider 2)
6 tension spring
(base slider 4)
0 rubber roller
(slider 1) assy
7 rubber roller
(slider 1) assy
qa rubber roller
(slider 2) assy
qd rubber roller
(slider 4) assy
3 tension spring
(base slider 5
)
1 step screw
4 rubber roller
(slider 5) assy
2 rubber roller
(slider S) assy
Note: Refer to assembly (Section 4)
2 gear (mode cam)
: Note
1 screw
(PTPWH2.6
× 8)
3 slider (mode cam) assy
5 two gears
(center)
7 two gears (center)
8 timing belt (rear)
9 timing belt (rear)
4 gear
(timing)
6 timing belt
(front)
timing belt
(rear)
When install three timing belts,
its pass under each claws.
timing belt
(rear)
timing belt (front)
claw
claw
claw
claw
