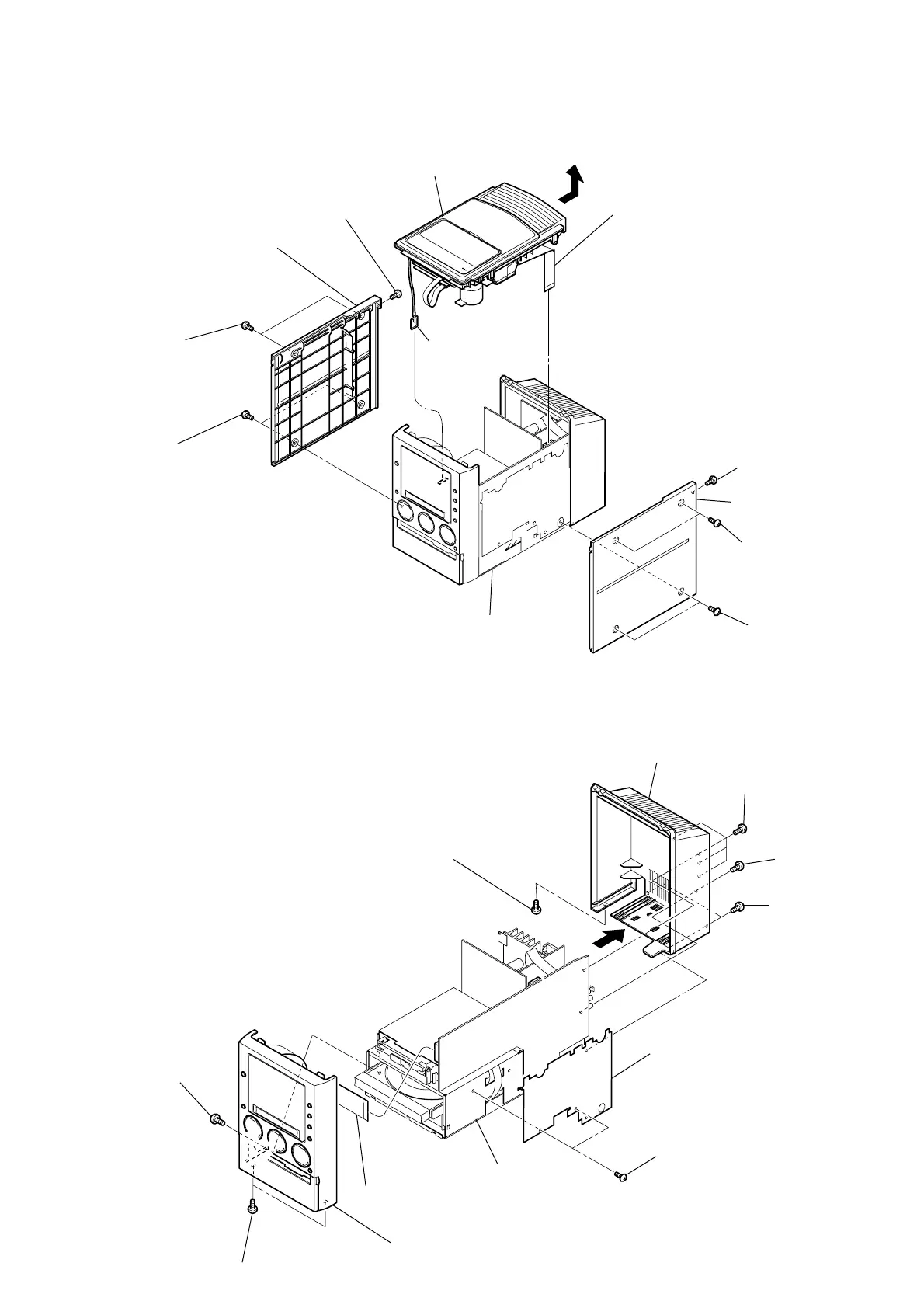

3-2. BACK PANEL, FRONT PANEL SECTION
3-1. CASE (R), CASE (L), TOP COVER SECTION
Note: Follow the disassembly procedure in the numerical order given.
qs Top cover section
qa Wire (flat type) (CN203)
Chassis section
1 Two screws (case 3 TP2
)
2 Two screws (case 3 TP2)
3 Screw (+BVTP3X10)
4 Case (R)
8 Case (L)
9 Ground terminal
5 Two screws (case 3 TP2)
6 Two screws (case 3 TP2)
7 Screw (+BVTP 3X10)
0
6 Back panel
1 Four screws
(+BVTP3X10)
2 Screw
(+BVTP3X8)
7 Two screws (+BVTT3X6)
4 Screw (+BVTP3X10)
8 Shield plate (Micro Computer)
3 Two screws
(+BVTP3X10)
9 Two screws (+BVTP3X10)
0 Screw (+BVTT3X6)
qs Front panel section
Chassis section
qa Wire (flat type) (CN500)
5
