14
HCD-M10

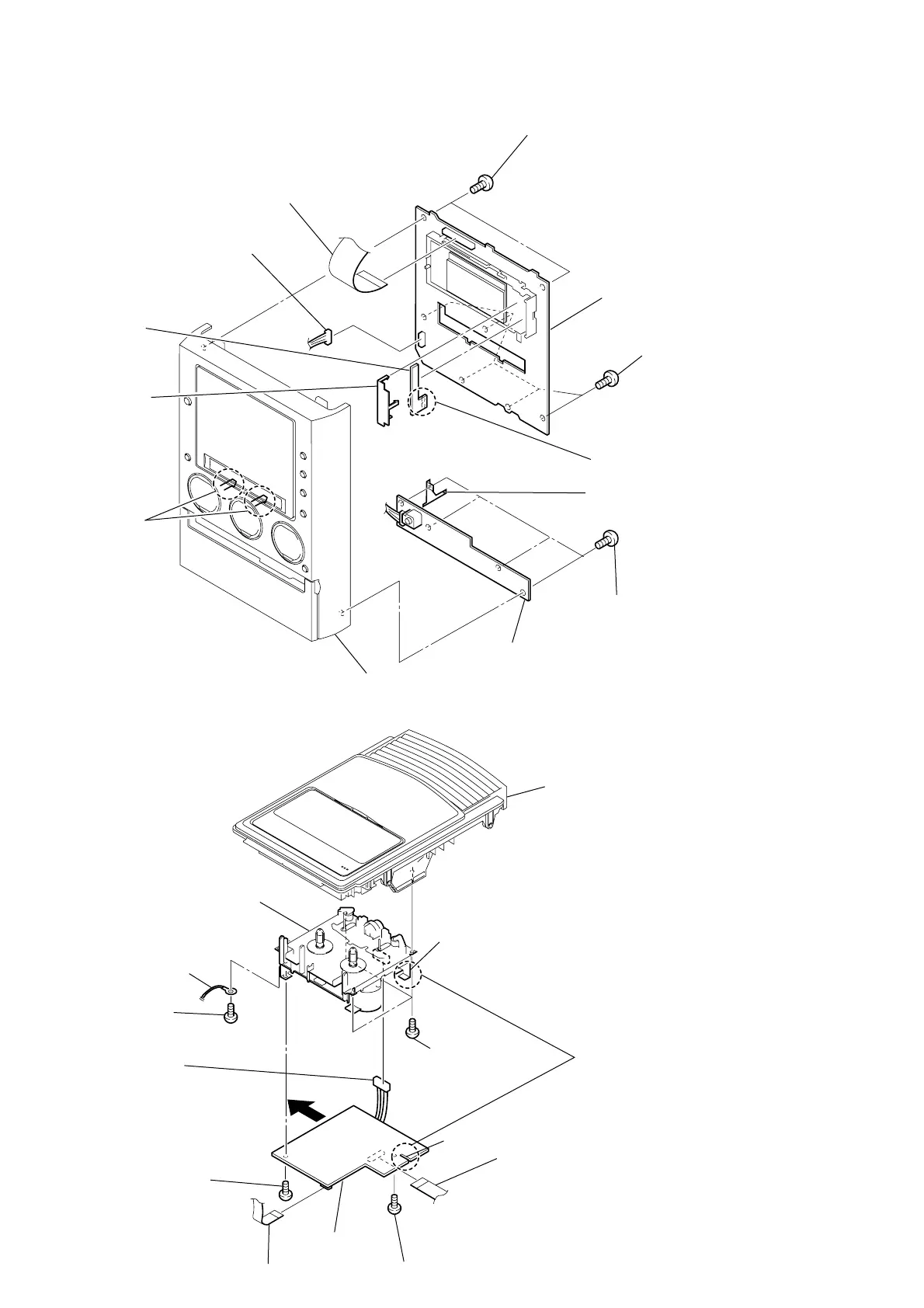

3-3. PANEL BOARD, BL BOARD, JACK BOARD
3-4. TC BOARD, MECHANISM DECK
1
Two screws (+BVTP2.6X8)
6
PANEL board
2
Five screws (+BVTP2.6X8
0
Four screws
(+BVTP2.6X8)
7
Lid (LCD)
3
Two claws
9
BL board
5
Connector (CN502)
4
Wire (flat type) (CN501)
qs
JACK board
Front panel
8
Two solderings
qa
Ground plate (HP)
0
Mechanism deck
Top cover
6
Connector
(mechanism deck 9 pins)
4
Screw (+BVTP3X8)
3
Screw (+BVTP3X8)
8
Three screws
(+BVTP3X8)
Hook
Crack
7
TC board
2
Wire (flat type) (CN1002)
1
Wire (flat type) (CN1001)
5
Remove a crack of TC board from a hook
on mechanism deck by sliding TC board in
the arrow
A
direction.
9
Screw (+BVTP3X8)
Ground lug
A
To Next Page
