Sony HCD-M10 - Page 15

15
HCD-M10

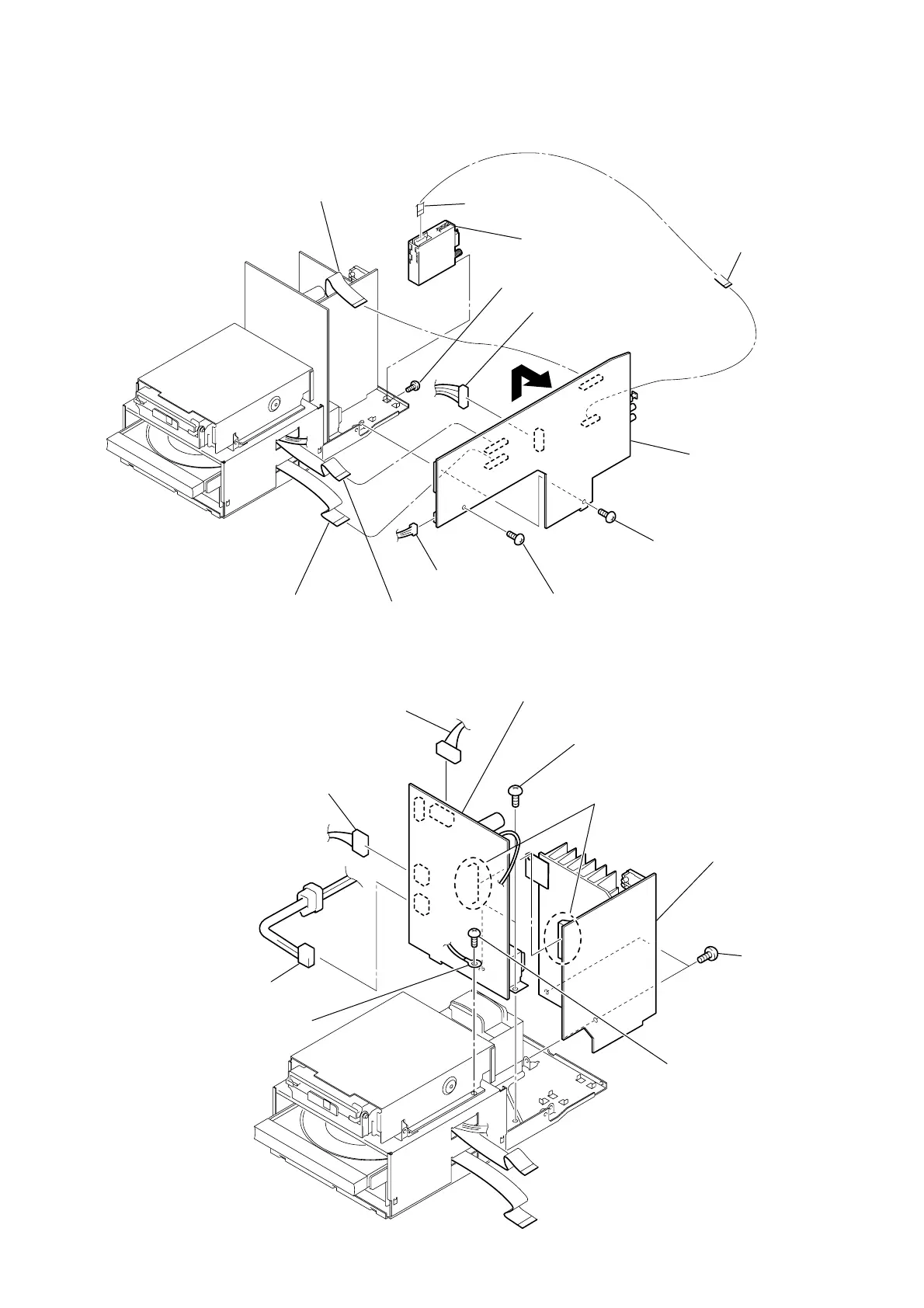

3-6. AMP BOARD, POWER BOARD
3-5. MAIN BOARD, TUNER
0 Wire (flat type) (15 core)
qs Tuner
qa Screw (+BVTP3X8)
4 Screw (+BVTT3X6)
3 Screw (+BVTT3X6)
2 Connector
(CN202)
7 Wire (flat type) (CN102)
8 Wire (flat type) (CN103)
9 Connector (CN101)
qd MAIN board
1 Wire (flat type) (CN903)
6 Wire (flat type) (CN105)
5
7 Connector of power cord (CN991)
Ground lug
6 Connector (CN992)
5 Connector (CN993)
9 POWER board
4 AMP board
8 Two screws (+BVTT3X6)
2 Two screws (+BVTP3X10)
3 Board to board connector (CN900-CN901)
1 Screw (+BVTT3X6)
