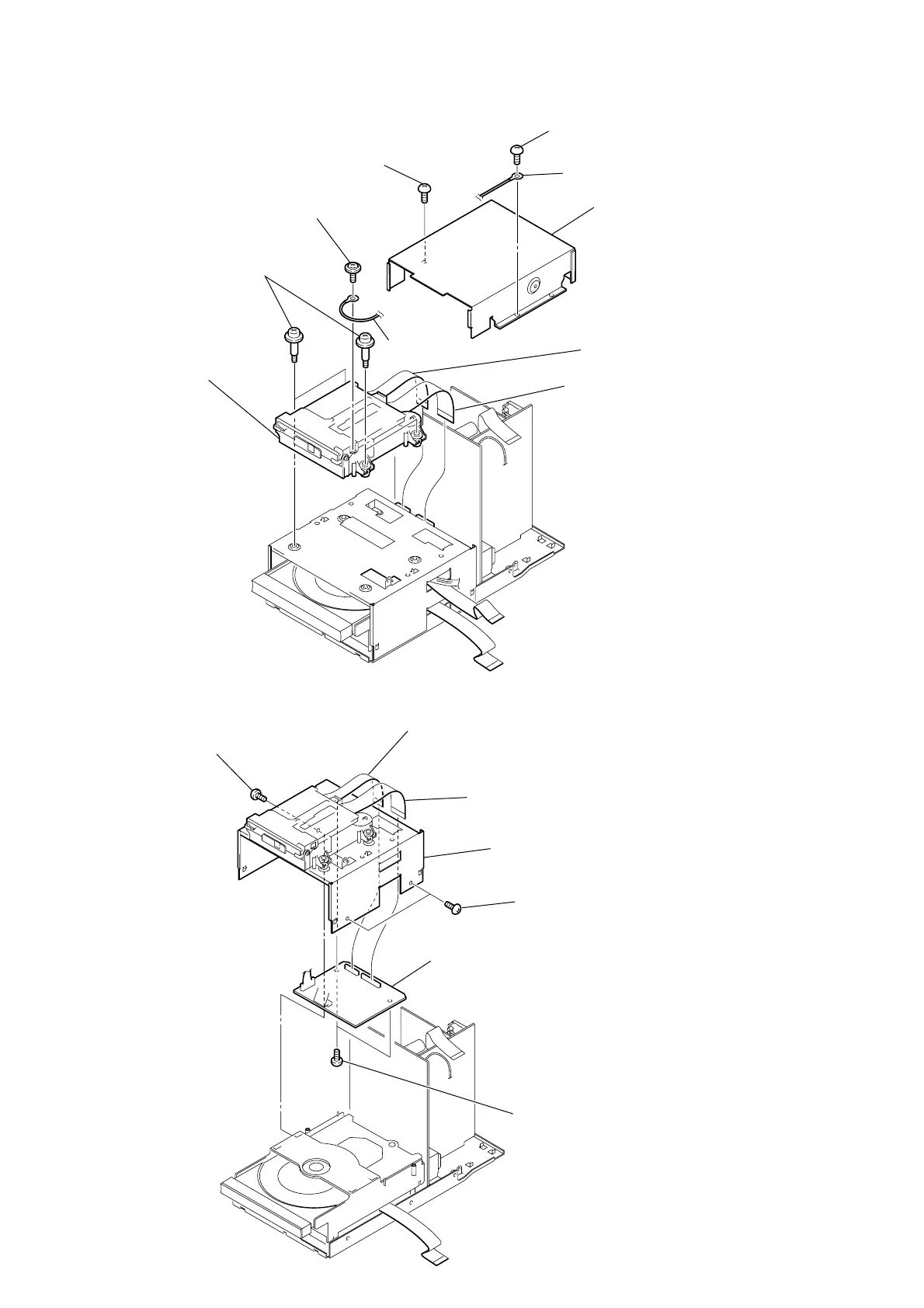

3-7. MD MECHANISM DECK
3-8. MD DIGITAL BOARD
7
Four step screws (+BVTTWH M3)
4
Screw (+BTN1.7X3)
1
Screw (+BVTT3X6)
8
MD mechanism deck
2
Screw (+BVTT3X6)
3
Shield (MDM)
6
Wire (flat type) (CN703)
5
Wire (flat type) (CN702)
Ground lug
Ground lug
4
Screws (+BVTT3X6)
3
Two screws (+BVTT3X6
)
2
Wire (flat type) (CN703)
1
Wire (flat type) (CN702)
7
MD DIGITAL board
5
Bracket (MDM)
6
Two screws (+BVTT3X6)
