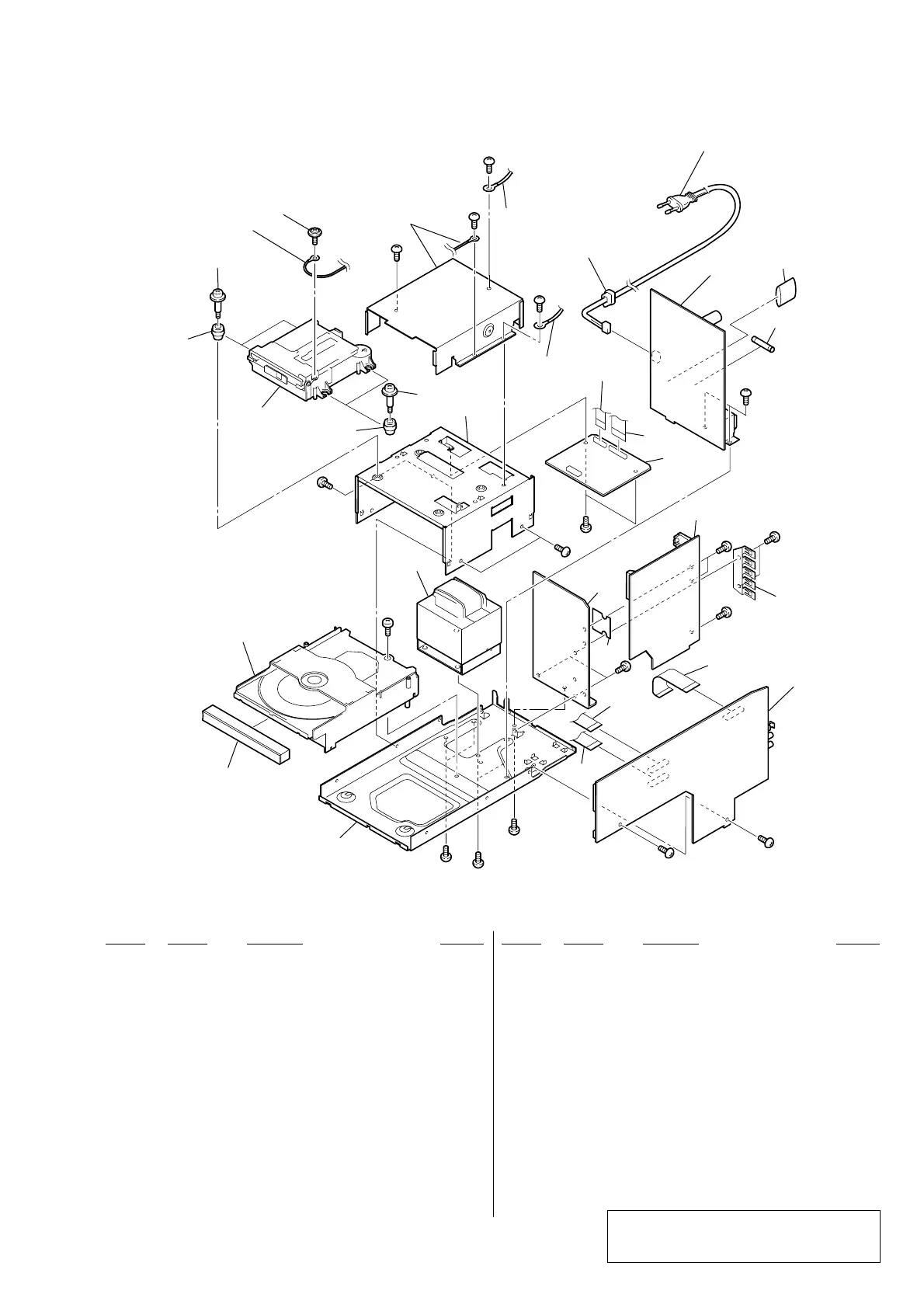

7-4. CHASSIS SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
152
153
154
155
156
157
158
159
160
161
163
166
162
164
165
151
152
153
not supplied
not supplied
MDM-7B4M
CDM55A1-K4BD43
#3
#3
#3
#3
#3
#3
F902
#3
#3
#5
#5
#5
#2
#2
#3
#3
#3
#3
#3
T900
not supplied
not supplied
not supplied
not
supplied
not
supplied
168
not supplied
151 4-236-670-01 PANEL, LOADING (WHITE)
151 4-236-670-11 PANEL, LOADING (SILVER)
151 4-236-670-21 PANEL, LOADING (BLACK)
152 4-228-643-01 SCREW (+BVTTWH M3), STEP
153 4-231-555-01 INSULATOR
154 4-231-113-01 SCREW (1.7X3), BTN
155 3-703-244-00 BUSHING (2104), CORD
0 156 1-769-079-11 CORD, POWER (KR)
0 156 1-775-787-61 CORD, POWER (EXCEPT KR,AUS)
0 156 1-696-845-11 CORD, POWER (AUS)
157 A-4727-747-A POWER BOARD, COMPLETE (AEP,UK)
157 A-4728-620-A POWER BOARD, COMPLETE (EXCEPT AEP,UK)
158 1-792-830-11 WIRE (FLAT TYPE) (17 CORE)
159 1-792-829-11 WIRE (FLAT TYPE) (27 CORE)
160 A-4727-745-A MD DIGITAL BOARD, COMPLETE
161 A-4727-748-A AMP BOARD, COMPLETE (AEP,UK)
161 A-4728-621-A AMP BOARD, COMPLETE (EXCEPT AEP,UK)
162 A-4727-749-A MAIN BOARD, COMPLETE (AEP,UK)
162 A-4728-625-A MAIN BOARD, COMPLETE (EXCEPT AEP,UK)
* 163 1-773-177-11 WIRE (FLAT TYPE) (23 CORE)
164 1-773-123-11 WIRE (FLAT TYPE) (19 CORE)
165 1-823-468-11 WIRE (FLAT TYPE) (22 CORE)
166 4-237-248-01 SHEET, INSULATING
* 168 4-374-846-01 COVER, CAPACITOR, CAP TYPE
0 F902 1-532-389-31 FUSE T0.5A 250V
0 T900 1-437-548-11 TRANSFORMER, POWER
#2 7-685-647-91 SCREW +BVTP 3X10 TYPE2 TT(B)
#3 7-685-871-01 SCREW +BVTT 3X6 (S)
#5 7-685-650-91 SCREW +BVTP 3X16 TYPE2 TT(B)
