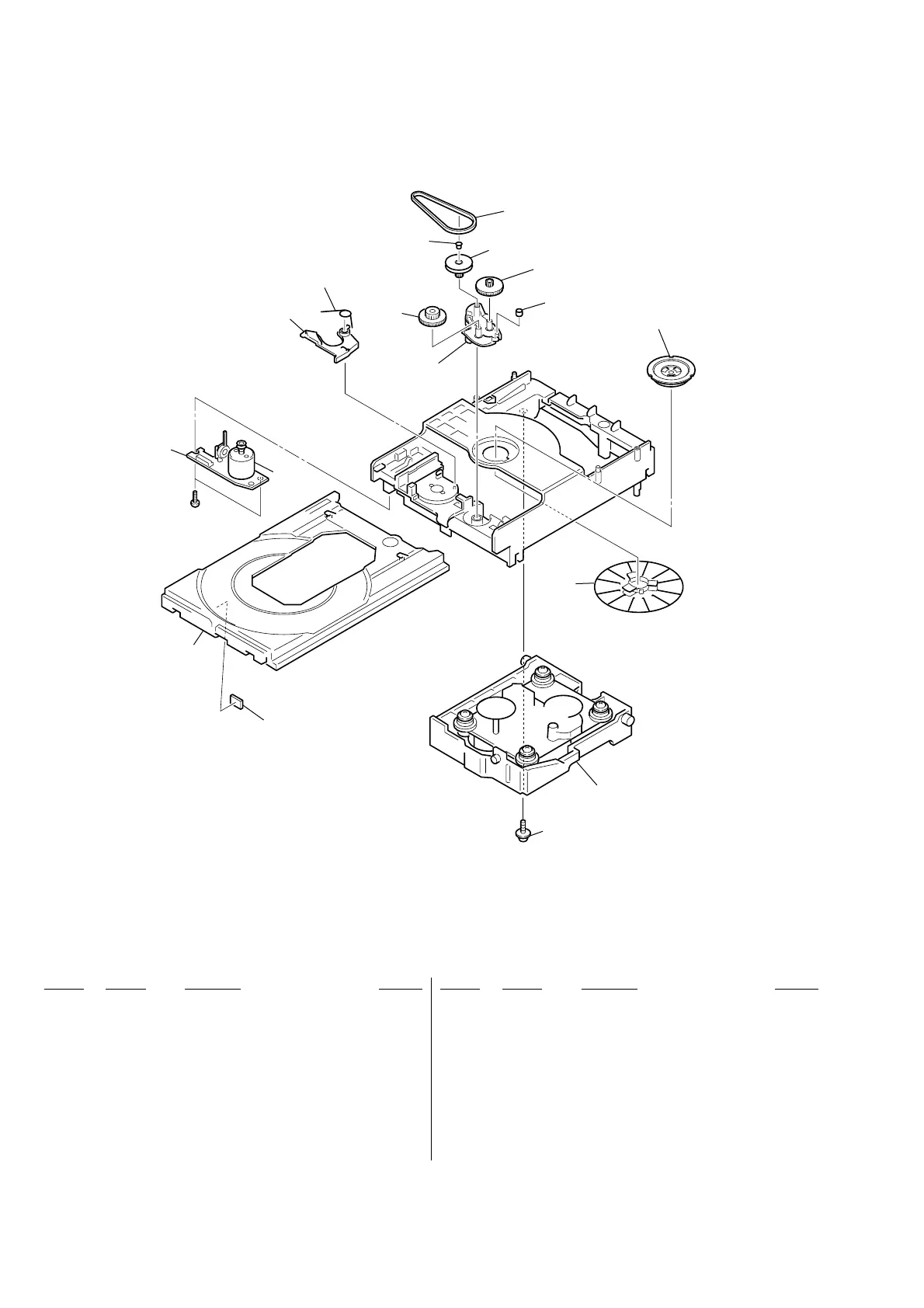

7-7. CD MECHANISM DECK-1 (CDM55A1-K4BD43)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
505
504
507
509
510
511
512
506
502
503
508
501
515
514
517
M901
#8
BU-K4BD43
501 4-925-315-31 DAMPER
502 4-224-894-01 TRAY
503 1-674-336-12 LOADING BOARD
504 4-220-229-01 LEVER (SW)
505 4-220-239-01 SPRING, TORSION
506 4-220-233-01 CAM (CDM55)
507 4-220-238-01 GEAR (B)
508 4-227-598-01 SPACER (55)
509 4-221-816-01 BELT (CDM55)
510 4-220-234-01 PULLEY (LDG)
511 4-220-237-01 GEAR (A)
512 4-221-815-01 ROLLER
514 A-4735-082-A MAGNET ASSY
515 A-4735-081-A PULLEY (AT-55F) ASSY
517 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
M901 A-4735-337-A MOTOR (LD) ASSY
#8 7-685-533-19 SCREW +BTP 2.6X6 TYPE2 N-S
