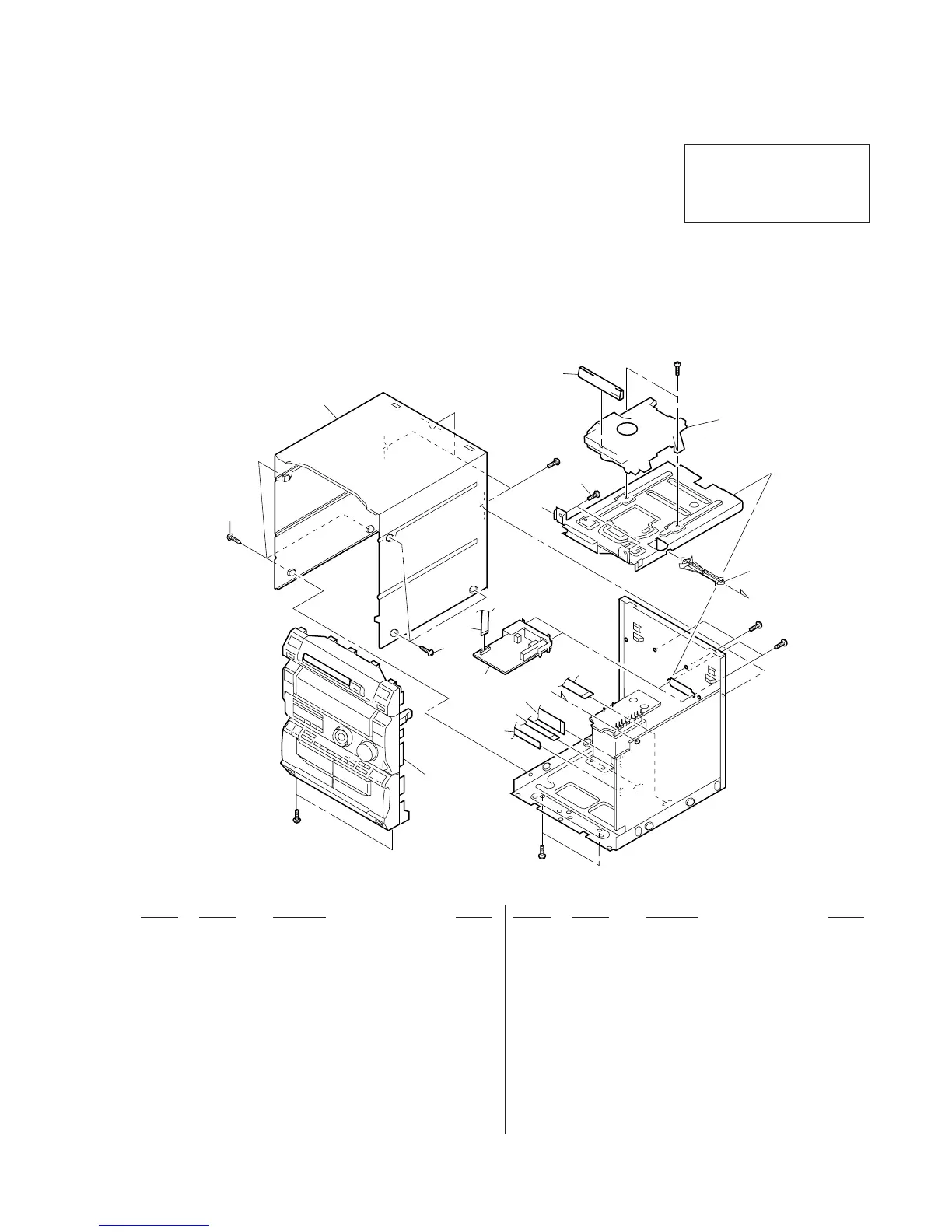

7-1. CASE SECTION
Ref. No. Part No. Description Remark
1
1 3-363-099-01 SCREW (CASE 3 TP2)
* 2 4-991-936-11 CASE (SILVER)
2 4-978-748-21 CASE (BLACK)
3 4-978-836-21 PANEL, LOADING (SILVER)
3 4-978-836-31 PANEL, LOADING (BLACK)
4 4-951-620-01 SCREW (2.6X8), +BVTP
* 5 4-978-853-01 CHASSIS (CDM)
6 1-776-166-11 WIRE (FLAT TYPE) (19 CORE)
7 1-773-158-11 WIRE (FLAT TYPE) (21 CORE) (240mm)
(EA4,TH)
7 1-773-160-11 WIRE (FLAT TYPE) (21 CORE) (260mm)
(EXCEPT EA4,TH)
8 1-769-940-11 WIRE (FLAT TYPE) (11 CORE) (100mm)
9 1-769-946-11 WIRE (FLAT TYPE) (11 CORE) (160mm)
* 10 A-4303-514-A TCB BOARD (AEP,UK)
* 10 A-4303-515-A TCB BOARD (G)
* 10 A-4303-516-A TCB BOARD (EE)
* 10 A-4303-520-A TCB BOARD (JE)
10 1-233-545-11 ENCAPSULATED COMPONENT (EA4,TH)
10 1-233-546-11 ENCAPSULATED COMPONENT
(E,EA3,MY,SP,HK,TW,IA)
11 1-751-086-11 WIRE (FLAT TYPE) (13 CORE) (EA4,TH)
11 1-773-012-11 WIRE (FLAT TYPE) (15 CORE) (EXCEPT EA4,TH)
1
2
3
4
5
6
7
8
9
10
11
#1
#1
#1
#1
#2
#2
FRONT PANEL
CDM28-5BD19
not supplied
SECTION 7
EXPLODED VIEWS
