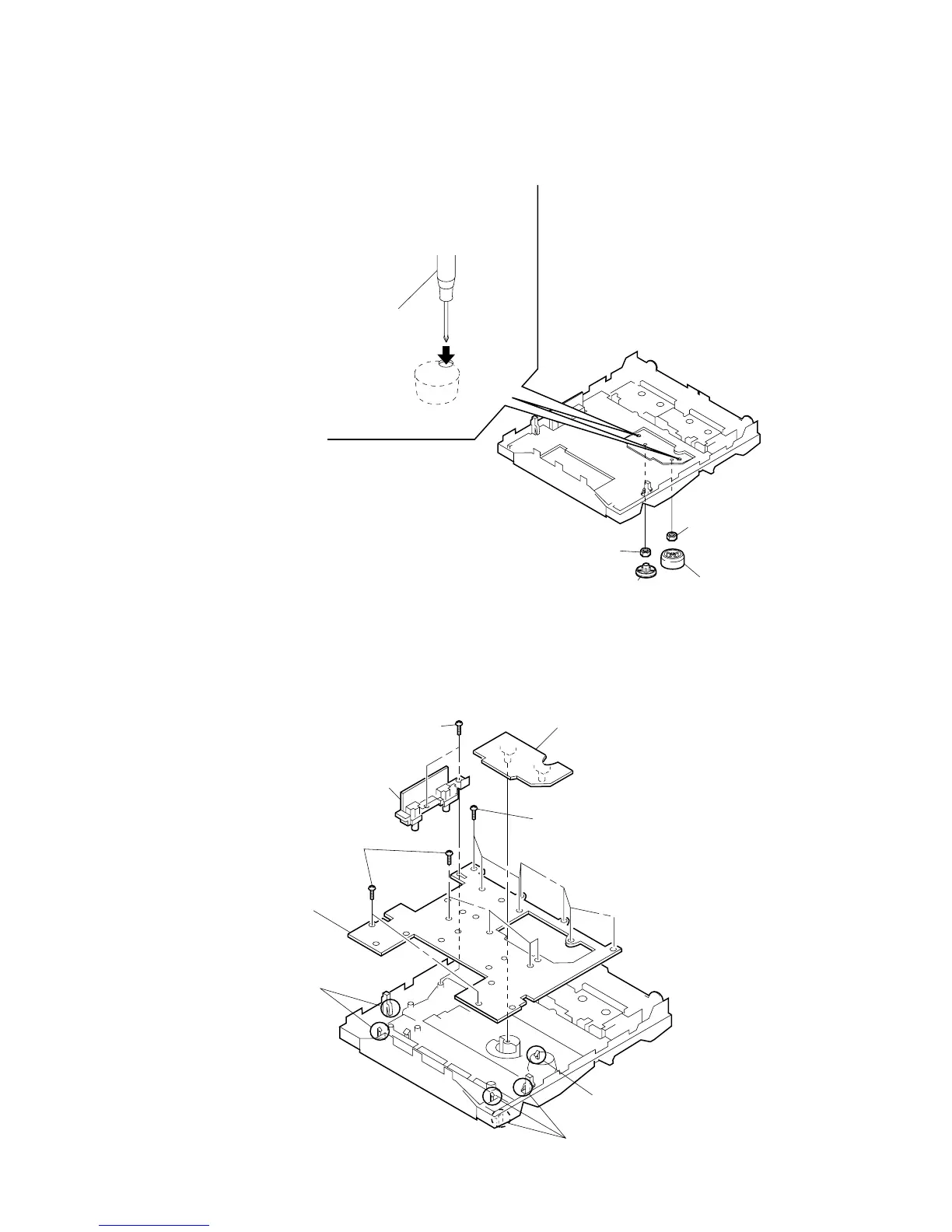

3-3. HP BOARD, JOG BOARD AND PANEL BOARD
* Note: It will be easy to remove if you push
lightly from the hole of the JOG board
with some screwdrivers or etc.
3 Nut
1 Knob (VOL) * Note
2 Knob (JOG) * Note
4 Nut
0 Three claws
!¡ Claw
9 Two claws
!£ PANEL board
8 Six screws
(+BVTP2.6X8)
6 HP board
5 Two screws
(+BVTP2.6X8)
!™ JOG board
7 Six screws
(+BVTP2.6X8)
Screw driver
