Sony HCD-RX50 - Back Panel Section

— 72 —

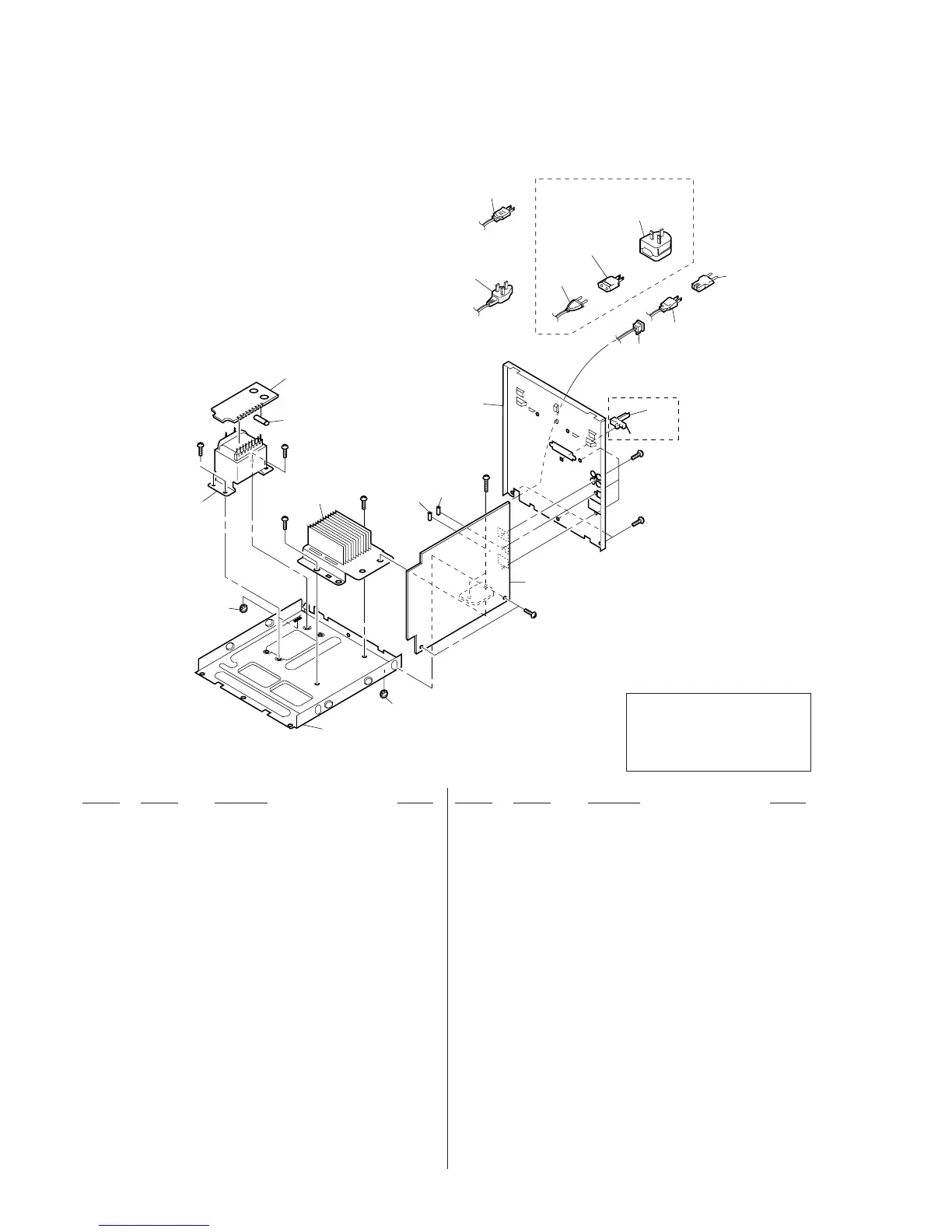

7-2. BACK PANEL SECTION
Ref. No. Part No. Description Remark
The components identified by
mark ! or dotted line with mark !
are critical for safety.
Replace only with part number
specified.
Ref. No. Part No. Description Remark
#3
(EXCEPT UK, E, TH, IA, JE Model)
#2
CNP1601
57 (EA3, MY,
SP,TW Model)
57 (HK Model)
57
(E, IA, JE,
Model)
CNP1601
(E, IA, JE Model)
56
#1
#1
54
#1
55
52
53
not supplied
52
T1601
#2
51
F1603
F1602
F1601
#1
#1
CNP1601
(UK Model)
* 51 1-659-332-11 TRANSFORMER BOARD
52 4-970-381-11 FOOT (REAR)
* 53 A-4386-430-A MAIN BOARD,COMPLETE (AEP,UK)
* 53 A-4386-432-A MAIN BOARD,COMPLETE (JE)
* 53 A-4386-433-A MAIN BOARD,COMPLETE (G)
* 53 A-4386-434-A MAIN BOARD,COMPLETE (E,EA3,MY,SP,HK,TW)
* 53 A-4386-436-A MAIN BOARD,COMPLETE (EE)
* 53 A-4386-437-A MAIN BOARD,COMPLETE (IA)
* 53 A-4386-439-A MAIN BOARD,COMPLETE (EA4,TH)
* 54 4-988-833-01 PANEL, BACK (E)
* 54 4-988-833-11 PANEL, BACK (EA3,TW,JE)
* 54 4-988-833-21 PANEL, BACK (SP,MY)
* 54 4-988-833-31 PANEL, BACK (HK)
* 54 4-988-833-41 PANEL, BACK (IA)
* 54 4-988-833-51 PANEL, BACK (EA4,TH)
* 54 4-988-834-01 PANEL, BACK (AEP,G)
* 54 4-988-834-11 PANEL, BACK (UK)
* 54 4-988-834-21 PANEL, BACK (EE)
55 4-956-370-12 BAND, PLUG FIXED (UK,HK)
* 56 3-703-244-11 BUSHING (2104), CORD
(EA,MY,SP,HK,TW/RX50)
56 3-703-571-00 BUSHING (S) (4516), CORD (E,TH,JE)
56 4-966-266-01 BUSHING (S) (FBS002), CORD (IA)
! 57 1-569-007-11 ADAPTOR, CONVERSION 2P (E,IA,JE)
! 57 1-569-008-11 ADAPTOR, CONVERSION 2P (EA3,MY,SP,TW)
! 57 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (HK)
! CNP1601 1-575-651-11 CORD, POWER (AEP,G,EE,EA,MY,SP,HK,TW)
! CNP1601 1-575-653-11 CORD, POWER (E,IA,JE)
! CNP1601 1-751-326-31 CORD, POWER (TH)
! CNP1601 1-751-520-21 CORD, POWER (UK)
! F1601 1-532-504-31 FUSE,TIME-LAG (4A / 250V)
! F1602 1-532-504-31 FUSE,TIME-LAG (4A / 250V)
! F1603 1-532-503-31 FUSE,TIME-LAG (1.6A / 250V)
(E,EA3,MY,SP,HK,TW,IA,JE)
! T1601 1-431-127-11 TRANSFORMER, POWER (EXCEPT AEP,UK,G,EE)
! T1601 1-431-129-11 TRANSFORMER, POWER (AEP,UK,G,EE)
not supplied
CNP1601
(TH Model)
(UK, HK Model)
