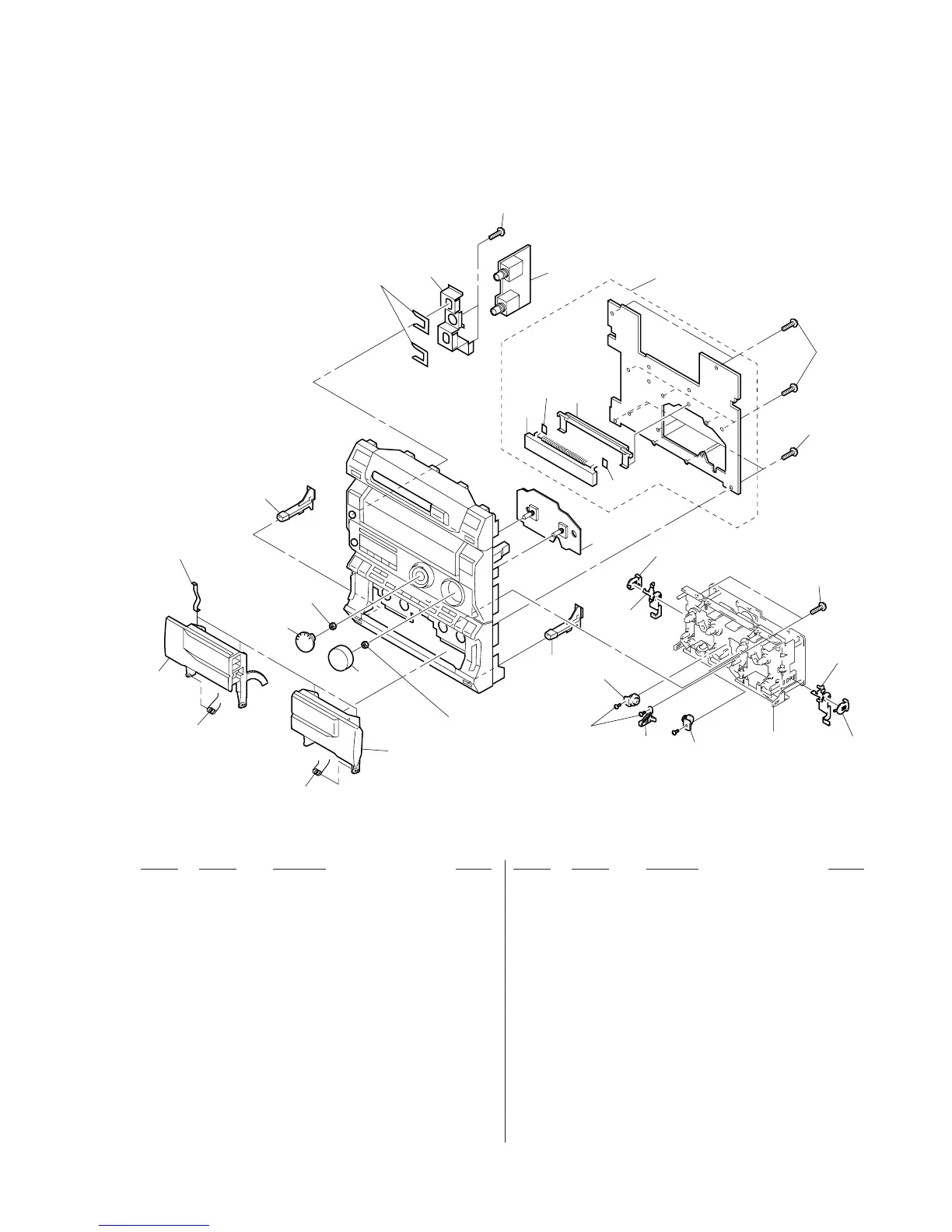

7-3. FRONT PANEL SECTION 1
108
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
119
FL501
109
113
113
114
118
119
111
110
109
112
109
116
117
108
115
TCM-220WR2E
106
105
104
103
102
107
116
109
101 4-959-229-11 DETENT, CASSETTE
102 X-4948-143-1 HOLDER (B) ASSY, CASSETTE (SILVER)
102 X-4948-250-1 HOLDER (B) ASSY, CASSETTE (BLACK)
103 4-959-232-11 SPRING (R), TORSION
104 4-959-231-11 SPRING (L), TORSION
105 X-4948-142-1 HOLDER (A) ASSY, CASSETTE (SILVER)
105 X-4948-249-1 HOLDER (A) ASSY, CASSETTE (BLACK)
106 4-991-935-01 KNOB, JOG (BLACK)
106 4-991-935-11 KNOB, JOG (SILVER)
107 4-991-934-01 KNOB (VOL) (BLACK)
107 4-991-934-11 KNOB (VOL) (SILVER)
108 4-980-219-01 BUTTON (EJECT) (BLACK)
108 4-980-219-21 BUTTON (EJECT) (SILVER)
109 4-951-620-01 SCREW (2.6X8), +BVTP
* 110 1-659-331-11 HP BOARD
* 111 A-4392-573-A PANEL BOARD, COMPLETE (RX50)
* 111 A-4392-581-A PANEL BOARD, COMPLETE
(E,EA3,MY,SP,HK,TW,JE)
* 111 A-4392-589-A PANEL BOARD, COMPLETE (IA)
* 111 A-4392-595-A PANEL BOARD, COMPLETE (EA4,TH)
* 112 1-659-333-11 JOG BOARD
113 3-354-957-01 JOINT (LOCK LEVER)
* 114 3-354-953-01 LEVER (LOCK LEVER L)
* 115 3-354-954-01 LEVER (LOCK LEVER R)
* 116 3-354-963-01 DAMPER
* 117 4-980-439-01 FULCRUM, HOLDER
118 4-978-168-31 HOLDER, (FL TUBE)
* 119 4-932-810-11 CUSHION (FL)
FL501 1-517-489-11 INDICATOR TUBE, FLUORESCENT (EA4,TH,IA)
FL501 1-517-660-11 INDICATOR TUBE, FLUORESCENT
(EXCEPT EA4,TH,IA)
Supplied with J501, J601
Supplied with S562
not supplied
#11
#11
101
Supplied with S561
