— 6 —
SECTION 2
GENERAL
This section is extracted from
instruction manual.
^
·
ª
·
ª
·
ª
·
ª
1
2
3
4
5
6
7
8
9
0
!¡
!™
!£
!¢
!∞
!
§
!
¶
!ª
!•
@º
@¡
@™
@£
@¢
@∞
@§
@¶
@•
@ª
#º
#¡
#™
#£
#¢
#∞
@•
@ª
#º
#§
#™

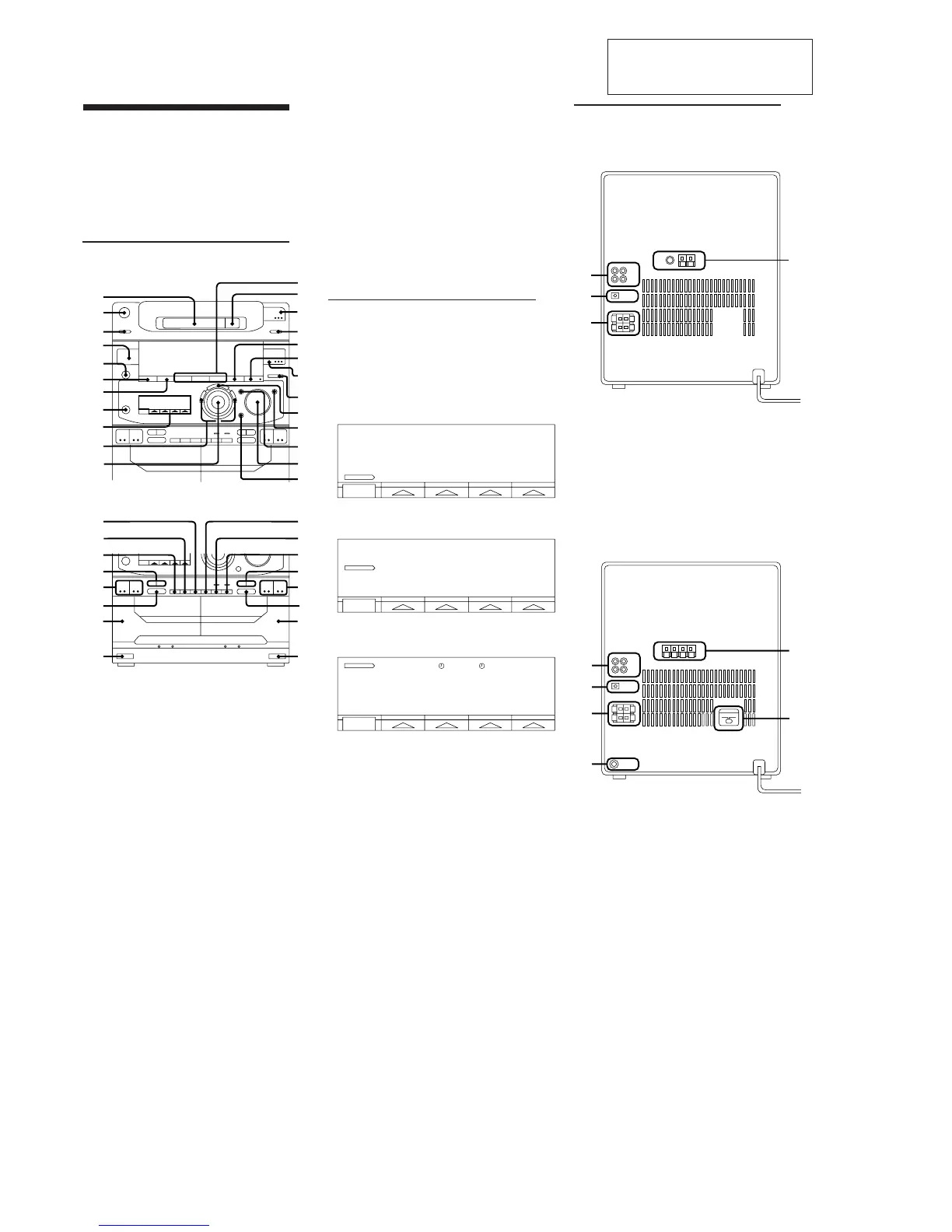

Index to Parts and Controls
Refer to the pages indicated in parentheses for
details on how to use the controls.
Controls with an asterisk have indicators on
themselves.
Front Panel
1 Disc tray
2 POWER switch
3 LOOP button
4 TIMER button
5 PHONES jack
6 DISPLAY button
7 SURROUND button
8 MIX MIC jack
9 MULTI FUNCTION CONTROL buttons
0 FREQUENCY +/– buttons
!¡ JOG dial
!™ MENU 1 – 3 button
!£ § OPEN / CLOSE button
!¢ fl (play / pause) button
!∞ p (stop) button
!§ P FILE button
!¶ EFFECT ON / OFF button
!• TUNER / BAND button
!ª FUNCTION button
@º ENTER / NEXT button
@¡ GROOVE button
@™ DBFB button
@£ VOLUME control
@¢ KARAOKE PON / MPX button
@∞ HIGH SPEED DUBBING button
@§ DIRECTION button
@¶ DOLBY NR button
@• 0 / ) (rewind / fast forward) button
@ª ª / · (reverse side play /
front side play) button
#º p (stop) button
#¡ Deck A
#™ § EJECT button
#£ CD SYNCHRO button
#¢ r REC button
#∞ P PAUSE button
#§ Deck B
C D CONTINUE SHUFFLE PROGRAM REPEAT
TUNER
TUNING
MODE
TUNER
MEMORY
STEREO
MONO
TIMER CLOCK SET SELECT SLEEP
CD player
Tuner
Timer
SET
1
2
3
4
5
6
1
2
3
4
MULTI FUNCTION CONTROL buttons
The buttons you can operate the CD player,
tuner and the timer light up.
Rear Panel
1 MD OUT / IN jacks
2 CD DIGITAL OUT OPTICAL jack
3 SPEAKER L / R connectors
4 SUPER WOOFER jack
5 ANTENNA terminals
6 Voltage selector (except for EA4, Thailand
models)
1 MD OUT / IN jacks
2 CD DIGITAL OUT OPTICAL jack
3 SPEAKER L / R connectors
4 ANTENNA terminals
(AEP, UK, German, East European models)
(E, EA, Hong Kong, Malaysia, Singapore,
Taiwan, Tourist, Thailand, Indonesian models)
• Abbreviation
EA4: Without voltage selector Saudi Arabia model
