Sony HCD-RX50 - TC Mechanism Section 2 (TCM-220 WR2 E)

— 78 —
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

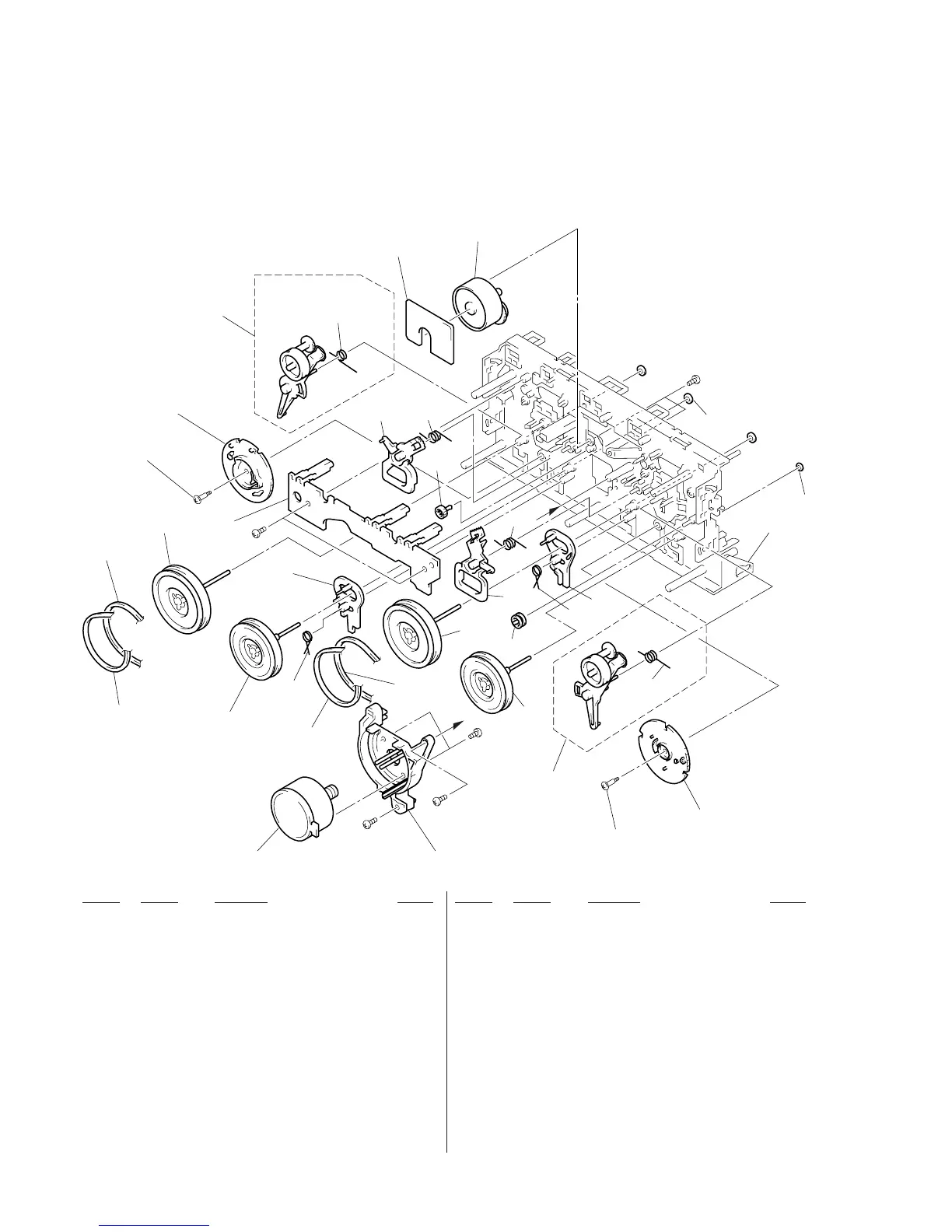

7-8. TC MECHANISM SECTION 2
(TCM-220WR2E)
p A : MOTOR board (Supplied with AUDIO board)
363
359
352
367
366
365
364
357
363
354
353
357
358
355
356
360
361
360
368
369
351
352
362
351 3-908-597-01 CAM (A)
352 3-908-608-11 SCREW, STEP
353 X-3372-930-1 ARM (A) ASSY, FR
354 X-3370-882-1 FLYWHEEL (AR) ASSY
355 3-928-047-01 PULLEY, TENSION
356 3-908-601-01 SPRING (REV LEVER),TORSION
357 3-908-599-01 LEVER (REV-A)
358 3-908-603-01 LEVER (TRIGGER A)
359 X-3370-108-1 FLYWHEEL (BF) ASSY
360 3-908-605-01 SPRING (TRIGGER), TORSION
361 3-908-609-01 GEAR, TRIGGER
362 3-913-845-11 BELT (A)
363 3-913-846-11 BELT (FR)
364 X-3370-171-1 FLYWHEEL (BR) ASSY
365 3-908-600-01 LEVER (REV-B)
* 366 1-650-669-11 LEAF SWITH BOARD
367 3-908-598-01 CAM (B)
368 X-3372-931-1 ARM (B) ASSY,FR
369 3-914-111-01 SPRING (FR), TORSION
370 3-908-604-01 LEVER (TRIGGER B)
371 3-911-115-01 WASHER, STOPPER
372 3-917-176-11 BELT (B)
373 X-3370-172-1 FLYWHEEL (AF) ASSY
374 X-3371-441-1 CHASSIS ASSY, MECHANICAL
* 375 A-2007-435-A AUDIO BOARD, COMPLETE
M1 X-3371-223-1 MOTOR ASSY (CAPSTAN)
M2 A-2004-410-A MOTOR ASSY, DC (TRIGGER)
M1
369
370
371
371
372
373
374
375
p A
M2
#10
#8
#7
#7
#9
#9
not supplied
#4
