ā 76 ā
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identified by
mark ! or dotted line with mark !
are critical for safety.
Replace only with part number
specified.

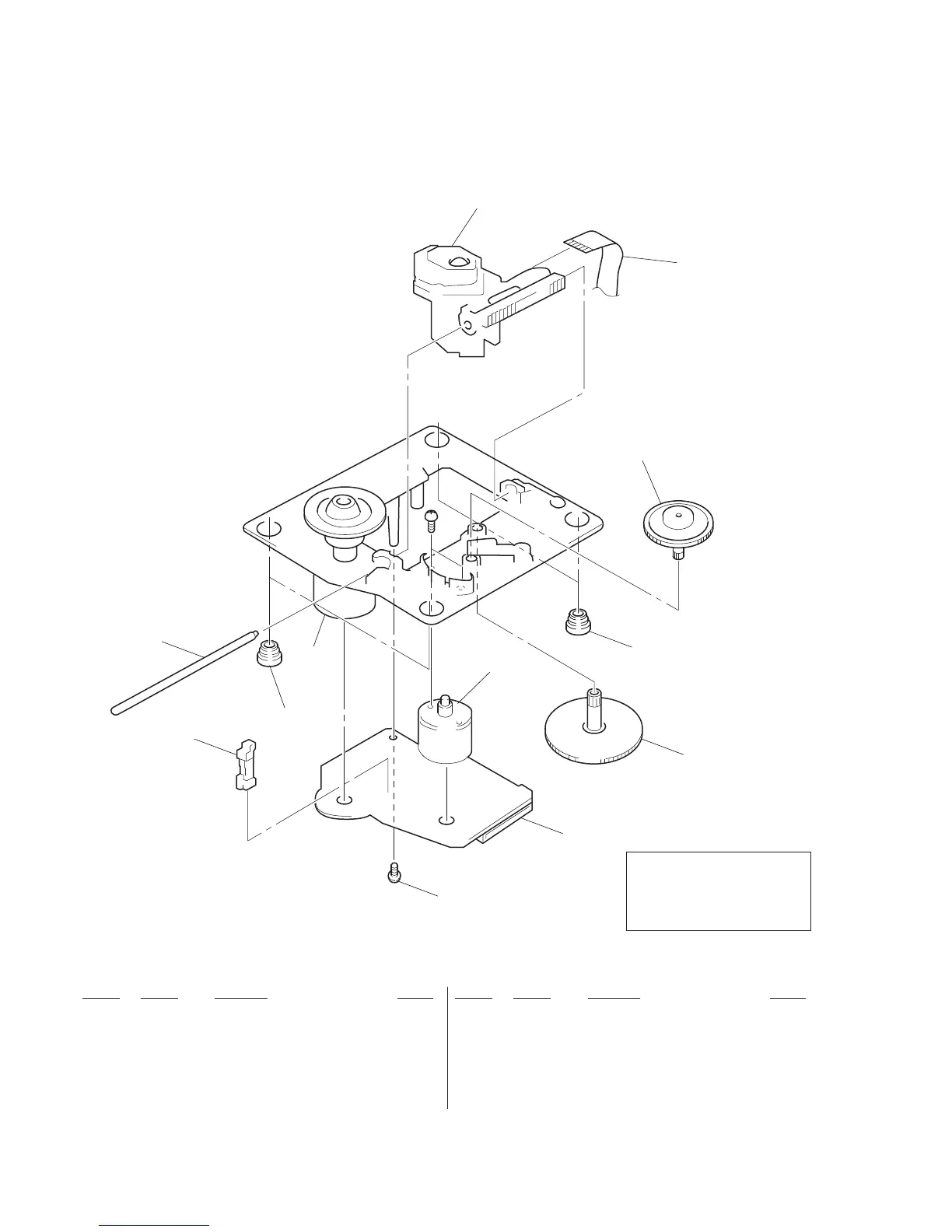

7-6. BASE UNIT SECTION
(BU-5BD19)
#5
252
251
253
254
256
255
254
258
257
M101
! 251 8-848-387-01 OPTICAL PICK-UP KSS-213BA/S-N
252 1-769-069-11 WIRE (FLAT TYPE) (16 CORE)
253 4-917-567-01 GEAR (M)
254 4-951-940-01 INSULATOR (BU)
255 4-917-565-01 SHAFT,SLED
256 4-917-564-01 GEAR (P), FLATNESS
* 257 A-4673-402-A BD BOARD, COMPLETE
258 4-951-620-01 SCREW (2.6X8), +BVTP
M101 X-4917-523-4 MOTOR ASSY (SPINDLE)
M102 X-4917-504-1 MOTOR ASSY (SLED)
S101 1-572-085-11 SWITCH, LEAF (LIMIT)
M102
S101
To Next Page
